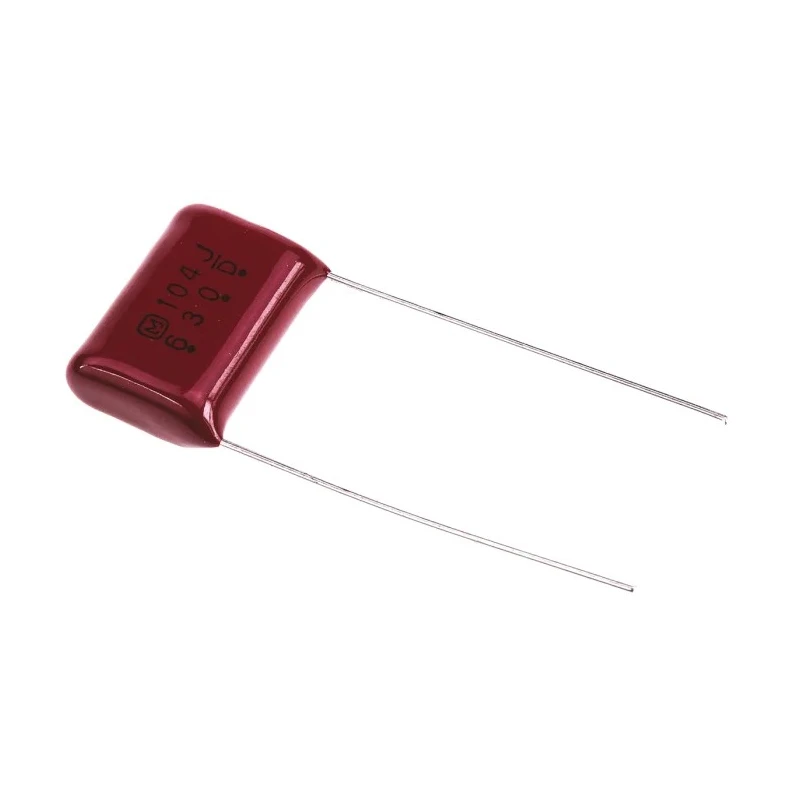

Panasonic ECQE(F) Film Capacitor 100 nF 630V ac 630 V dc Through Hole 2 ECQE6104JF

Panasonic ECQE6104JF Film Capacitor is a precision electronic component designed for demanding automation, electronics, and electrical industry applications. With a capacitance of 100 nF, it ensures accurate signal processing and filtering in circuits. Rated for 630V AC and DC voltages, this capacitor supports high voltage environments safely.

The through-hole mounting type with a 15mm lead pitch enables reliable solder connections on printed circuit boards. Its compact form factor (6.3mm width, 14mm height, and 18.5mm length) makes it suitable for space-constrained electronic assemblies.

A key feature of this capacitor is its self-healing property, which allows recovery from minor electrical failures, enhancing circuit reliability and extending service life. The flame-retardant epoxy resin coating further provides safe operation and high durability.

Engineered to tolerate a broad temperature range from -40°C to +105°C, it suits both harsh and standard environmental conditions. Compliant with AEC-Q200 automotive standards and RoHS directives, it meets quality and environmental criteria for industrial, automotive, audio/video, and lighting control uses.

The capacitor delivers consistent capacitance with ±5% tolerance for precision applications. It improves operational efficiency with a low dissipation factor of 1%. Its dimensions and lead specifications optimize PCB assembly and performance stability.

Common applications include ignition systems, radio frequency circuits, signal coupling, and timer circuits within electronic devices.

This Panasonic ECQE(F) series capacitor ensures durable performance in industrial, automotive, and commercial electronic circuits, contributing to the reliability of complex systems.
