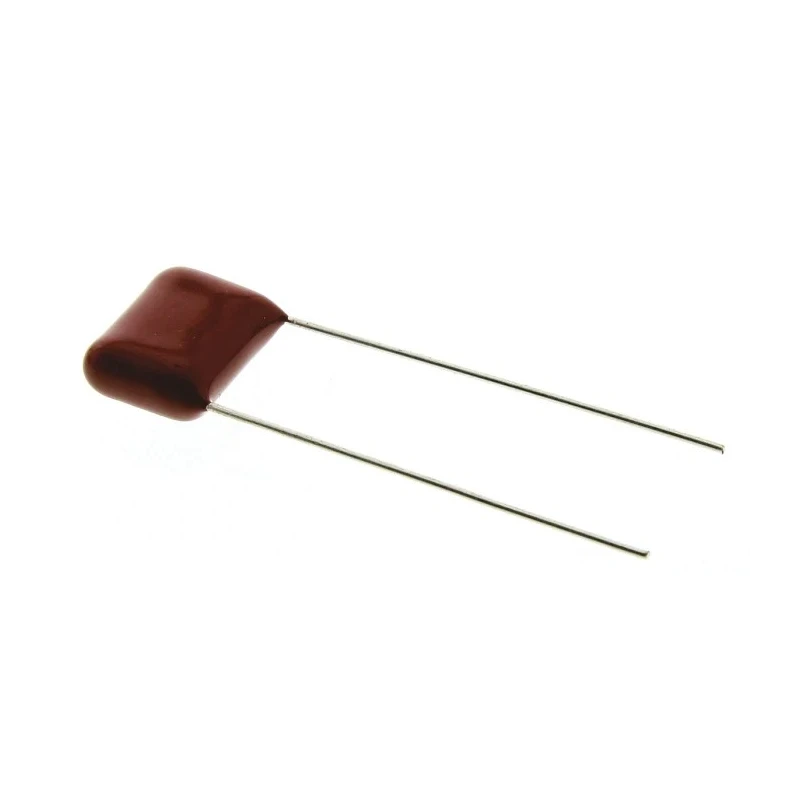

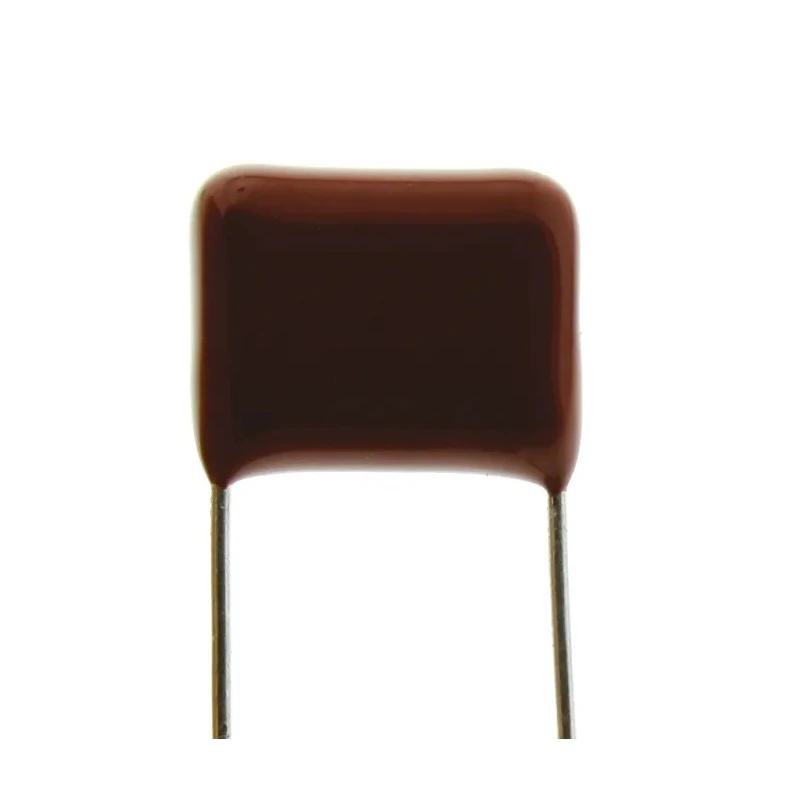

Panasonic ECQE(F) Film Capacitor 22 nF 630V AC 630 V DC Through Hole 2 Pin ECQE6223JF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10.5mm |
| Length | 12mm |
| Model | ECQE6223JF |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | ECQE(F) |
| Maximum Operating Temperature | 105°C |
| Capacitance | 22nF |
| Pin Count | 2 |
| Rated AC Voltage | 630V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact polyester dielectric capacitor with ±5% tolerance for precise circuit performance.
- Rated for 630V AC and 630V DC operation to support high voltage stability.
- Flame-retardant epoxy resin coating ensures enhanced safety during use.
- Self-healing property improves longevity by recovering from minor breakdowns.
- Operating temperature range from -40°C to +105°C suits varied environmental conditions.
- Designed with a 10mm lead pitch and through-hole mount for easy PCB integration.
- Meets automotive standard AEC-Q200 and certifications EN 60384-14, CSA E60384-14, UL 60384-14.
- Ideal for use in timing circuits, impedance matching, ignition systems, and automation electronics.
Product Description
Panasonic ECQE6223JF Film Capacitor 22 nF 630V AC 630 V DC Through Hole 2 Pin is a compact, high-reliability polyester dielectric capacitor engineered for versatile applications in electronics, automation, and electrical systems. Its 22nF capacitance with ±5% tolerance ensures accurate operation in demanding circuits requiring stable performance.
This capacitor is rated for both 630V AC and 630V DC, making it suitable for high voltage environments in industrial and automotive setups. The flame-retardant epoxy resin coating improves safety by reducing fire hazards during operation. The robust self-healing property helps the capacitor recover from minor electrical breakdowns, significantly extending its service life.
Designed with a 10mm lead pitch and through-hole mount style, this capacitor simplifies PCB assembly and integration into various electronic designs. Compliance with automotive AEC-Q200 standard and certifications including EN 60384-14, CSA E60384-14, and UL 60384-14 guarantees quality and reliability.
The component operates efficiently within a broad temperature range of -40°C to +105°C, tolerating demanding environmental conditions in industrial, automotive, and commercial electronics. Typical applications include impedance matching in general-purpose circuits, timing and oscillator circuits in automation, and igniters in ignition systems.
Compact polyester dielectric construction with 22nF capacitance and ±5% tolerance. Rated for 630V AC and 630V DC voltage suitability. Self-healing feature ensures high reliability and longevity. Flame-retardant epoxy coating enhances operational safety.
10mm lead pitch and through-hole mount for straightforward PCB integration. Approved per automotive AEC-Q200 standard and major safety certifications. Wide operating temperature range from -40°C to +105°C. Ideal for automation, ignition, and timing circuit applications.
Explore further Panasonic Film Capacitors and similar electronic components in the Electronics & Electricals category at EnvMart for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 22nF with a tolerance of ±5%.
It is rated for 630V AC and 630V DC, making it suitable for high voltage applications.
The operating temperature range is from -40°C to +105°C, allowing it to function in varied environmental conditions.
This unit features a through-hole mounting type, designed for easy integration into PCBs.
The lead pitch is 10mm, which facilitates straightforward installation in electronic circuits.
It has a pin count of 2, suitable for various electronic applications.
It complies with automotive standard AEC-Q200 and certifications EN 60384-14, CSA E60384-14, and UL 60384-14.
The dimensions are 12mm in length, 5.3mm in width, and 10.5mm in height.
The self-healing property allows it to recover from minor electrical breakdowns, enhancing its longevity.
It is ideal for use in timing circuits, impedance matching, ignition systems, and automation electronics.
The capacitor features a flame-retardant epoxy resin coating, which enhances safety during operation.
The country of origin for this capacitor is India.
