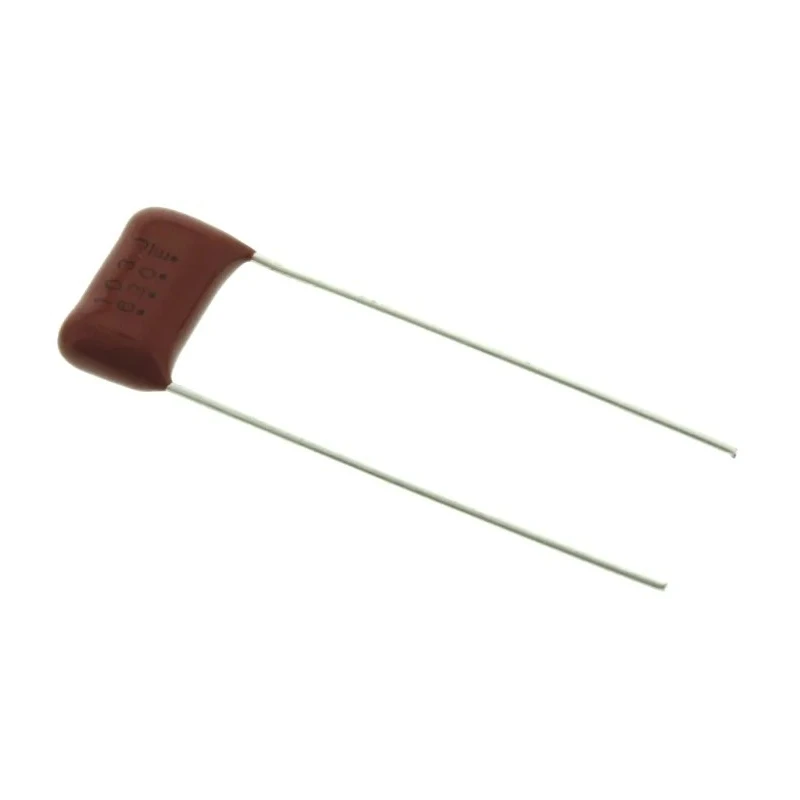

Panasonic ECQE(F) Film Capacitor 10 nF 630V AC 630 V DC Through Hole Mount ECQE6103JF

Panasonic ECQE6103JF film capacitors are premium polyester film capacitors designed for various electronic applications. The ECQE(F) series features metallised polyester film technology, which gives the capacitors self-healing properties and ensures long-lasting electrical stability and performance.

This capacitor is rated for 630 volts AC and 630 volts DC, supporting demanding power supply and circuit conditions. It uses a through hole mount with a 10 mm lead pitch, making it suitable for many PCB assembly processes. The leads have a diameter of 0.6 mm, and the capacitor dimensions are 12 mm in length, 7.5 mm in height, and 4.5 mm in width, providing compact size for efficient board layouts.

Designed to operate reliably at temperatures up to 105°C, and compliant with automotive standard AEC-Q200, this film capacitor meets high quality and durability requirements for automotive and industrial electronics. The flame retardant epoxy resin coating further enhances safety by reducing fire risks.

The capacitor's non-inductive construction ensures minimal interference and stable capacitance, suitable for general purpose use in power supplies, filtering, and noise suppression.

Metallised polyester film construction with self-healing capability. Rated voltage: 630V AC, 630V DC. Through hole mount with 10 mm lead pitch. Operating temperature up to 105°C. Complies with AEC-Q200 automotive standards.

Compact dimensions: 12 x 7.5 x 4.5 mm, lead diameter 0.6 mm. Flame retardant epoxy coating for enhanced safety. Non-inductive design reduces electrical noise.

This Panasonic ECQE6103JF film capacitor is ideal for industrial, automotive, electronics manufacturing, and power supply applications requiring reliable, high voltage and temperature-resistant passive components.
