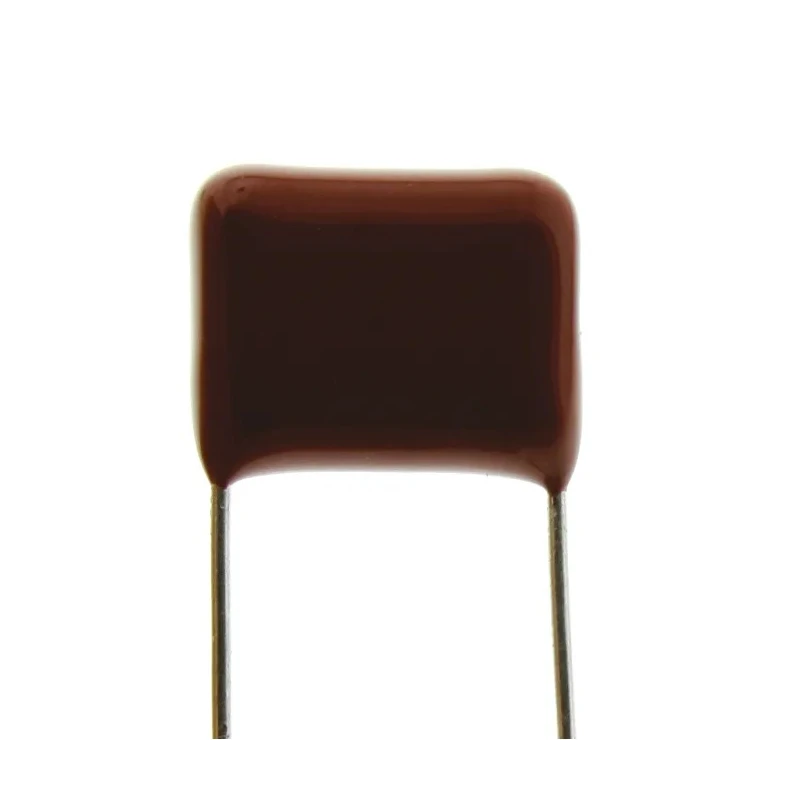

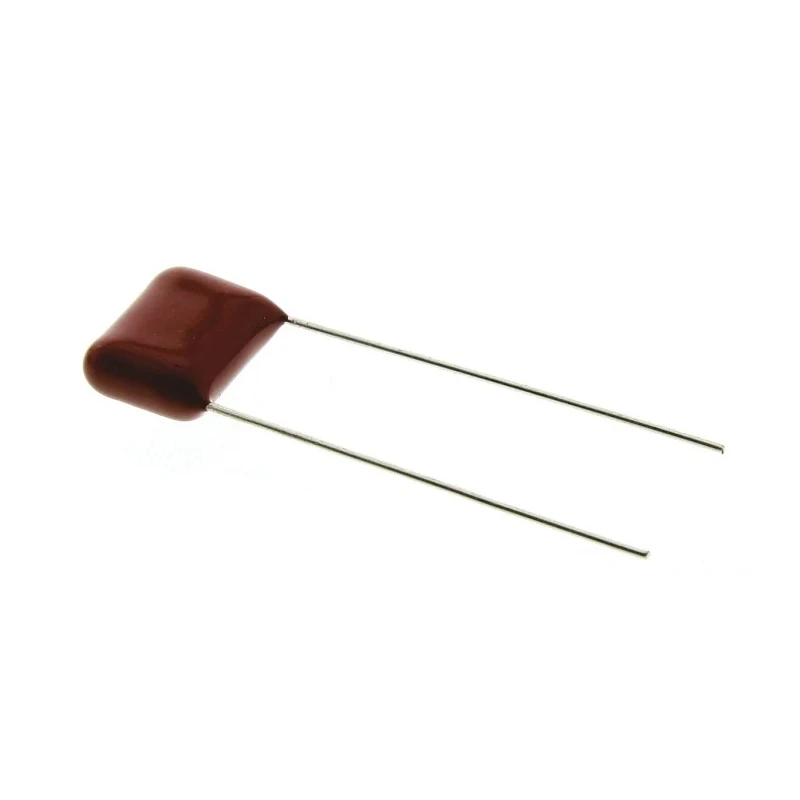

Panasonic ECQE(F) Film Capacitor Through Hole 22 nF 630V AC/DC Self-Healing ECQE6223JF

Panasonic ECQE6223JF Film Capacitor is a high-performance electronic component designed for versatile use in automation, electronics, and electrical systems. Featuring a 22 nF capacitance and rated for 630V AC and DC voltages, this through-hole film capacitor provides reliable, precise performance in compact dimensions of 5.3mm width, 10.5mm height, and 12mm length.

The capacitor incorporates a self-healing polyester dielectric that enhances durability by recovering from electrical breakdowns, ensuring extended service life. Its flame-retardant epoxy resin coating delivers improved safety during operation, making it suitable for critical applications.

This device operates reliably within a temperature range of -40°C to +105°C, making it ideal for diverse environments and industrial conditions. It maintains low energy loss with a dissipation factor of only 1%, thus optimizing energy efficiency in circuit designs.

Typical applications include general-purpose electronic circuits for impedance matching, timing and oscillator circuits in automation systems, and use in igniters and ignition systems for robust performances. The through-hole lead pitch of 10mm and pin count of 2 facilitate straightforward mounting on printed circuit boards.

High capacitance of 22 nF suitable for various electronic applications. Rated for 630V AC and DC voltage withstand capacity. Through-hole mount type simplifies PCB integration. Compact dimensions with 10.5mm height and 12mm length, and 5.3mm width.

Self-healing polyester dielectric ensures longevity and reliability. Flame-retardant epoxy resin coating enhances operational safety. Wide operating temperature range from -40°C to +105°C supports diverse environments. Low dissipation factor of 1% for efficient energy performance.

Complies with EN 60384-14, CSA E60384-14, and UL 60384-14 safety standards.

Suitable for industrial, laboratory, and electronics manufacturing applications, this Panasonic Film Capacitor ensures dependable operation in demanding environments. Explore EnvMart’s extensive electronics components catalog for more selections and technical solutions.
