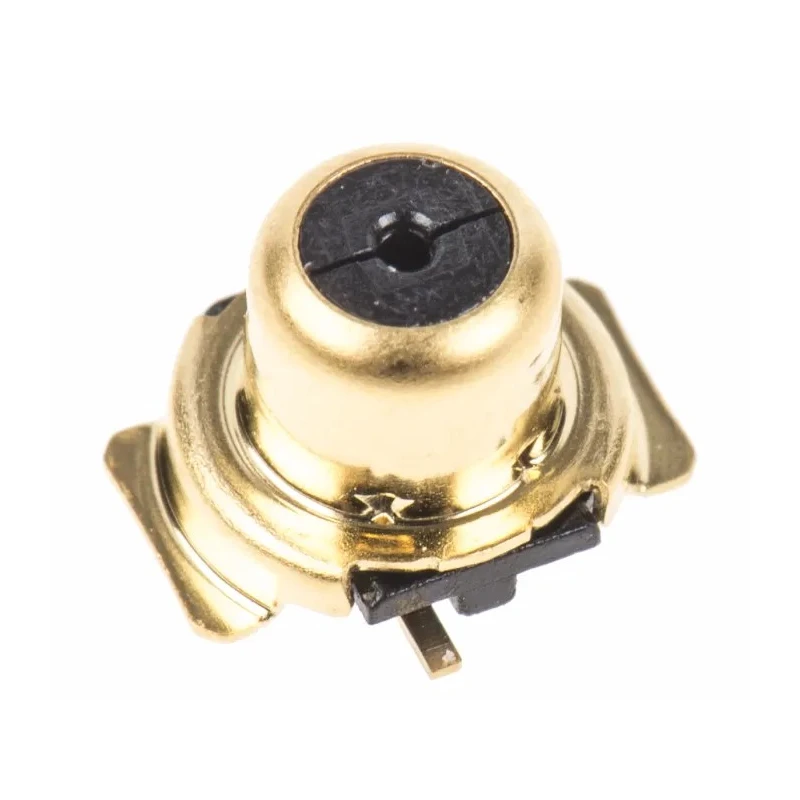

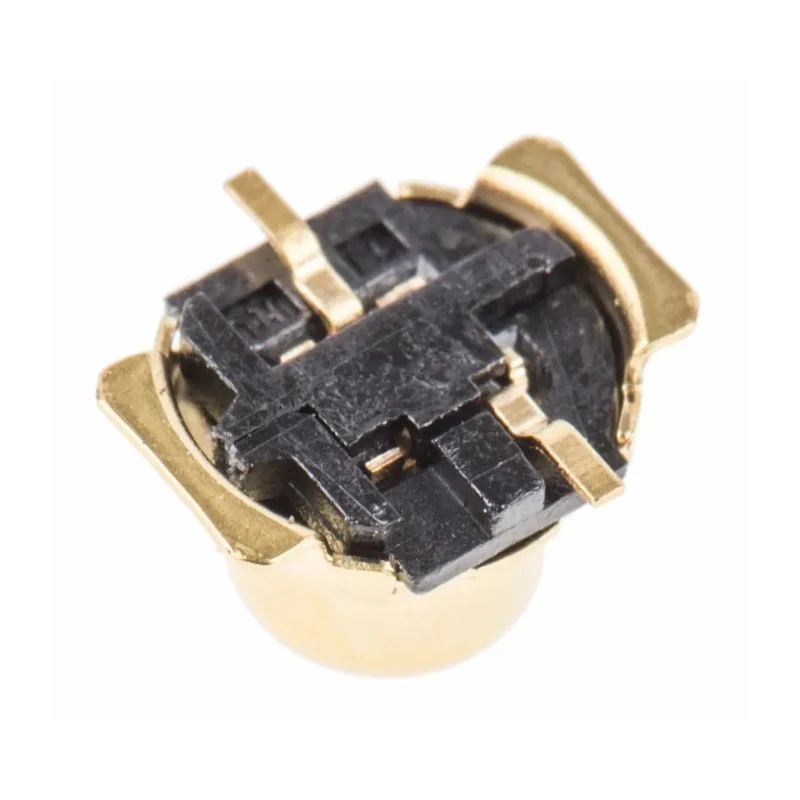

Hirose MS-147 Series Coaxial Connector Straight Female Connector with Switch 50 Ω Surface Mount MS-147(01)
Specifications
| Country of Origin | Japan |
|---|---|
| Size | Standard |
| Brand | Hirose |
| Orientation | Straight |
| Model | MS-147(01) |
| Mount Type | Straight |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MS-147 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | Coaxial Connector with Switch |
Key Features
- Constructed with beryllium copper contact material for durability.
- Gold plating on contacts ensures excellent conductivity and corrosion resistance.
- Operates efficiently from DC up to 6 GHz frequency range.
- Compact with a low profile height of 3.9 mm and weighing only 0.11 g.
- Supports a minimum operating temperature of -30°C and a maximum of 85°C.
- Designed for standard size with normal polarity and straight orientation.
- Enables use in mobile telephones, Bluetooth, GPS, wireless communication, and microwave board inspection.
- Capable of maintaining 0.15 dB insertion loss over 12,000 mating cycles.
Product Description
The Hirose MS-147(01) Series Coaxial Connector is a precision-engineered straight female coaxial connector featuring a built-in switch and designed for surface mount assembly. It offers a 50 Ω impedance, making it ideal for usage in high-frequency applications such as mobile telephony, Bluetooth devices, GPS modules, wireless communications, and microwave circuit inspection points.
This connector utilizes beryllium copper for its contact material, combined with gold plating to provide excellent electrical conductivity and resistance to corrosion, ensuring long-term reliability. The MS-147(01) has a compact height of 3.9 mm and a lightweight form factor of only 0.11 grams, facilitating seamless integration into modern compact devices.
It supports an operating frequency up to 6 GHz and can operate reliably within a temperature range of -30°C to 85°C. The connector’s design supports normal polarity, straight orientation, and standard size specifications. Its robust mechanical and electrical performance delivers an insertion loss of 0.15 dB across its life span of up to 12,000 mating cycles, maintaining signal integrity and consistent functionality.
This product is manufactured in Japan, meeting high manufacturing standards. It is especially suited for industrial applications in telecommunications, electronic manufacturing, and wireless communication device production.
Constructed with beryllium copper for contact durability and performance. Gold plated contacts enhance resistance to corrosion and improve conductivity. Operates from DC up to 6 GHz accommodating high-frequency signals. Compact design: 3.9 mm height and 0.11 g weight for minimal footprint.
Temperature rating from -30°C to 85°C supports various environments. Surface mount termination suitable for automated PCB assembly. Maintains low insertion loss (0.15 dB) throughout 12,000 mating cycles. Designed for applications including mobile phones, GPS, and Bluetooth.
Explore the Hirose range and similar Coaxial Connectors on EnvMart to meet your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose MS-147(01) operates efficiently from DC up to a frequency of 6 GHz.
This model supports a minimum operating temperature of -30°C and a maximum of 85°C.
The contacts are constructed from beryllium copper and are gold plated to enhance conductivity and corrosion resistance.
It maintains an insertion loss of 0.15 dB over 12,000 mating cycles.
The MS-147(01) features a surface mount termination type, suitable for automated PCB assembly.
This model is a female coaxial connector.
It is designed for use in mobile telephones, Bluetooth devices, GPS modules, wireless communications, and microwave circuit inspection points.
The connector has a compact height of 3.9 mm and weighs only 0.11 grams.
The MS-147(01) has an impedance rating of 50 Ω.
This model features a straight orientation with normal polarity.
This connector is manufactured in Japan, meeting high manufacturing standards.
The MS-147(01) is part of the MS-147 series of coaxial connectors.
