TDK 5020 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20/±30 % 2.09 A Idc VLCF5020T-4R7N1R7-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-4R7N1R7-1 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 2.09A |
| Maximum DC Resistance | 122mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a magnetic shield construction to reduce electromagnetic interference.
- Constructed using wirewound technology with a ferrite core for stable inductance.

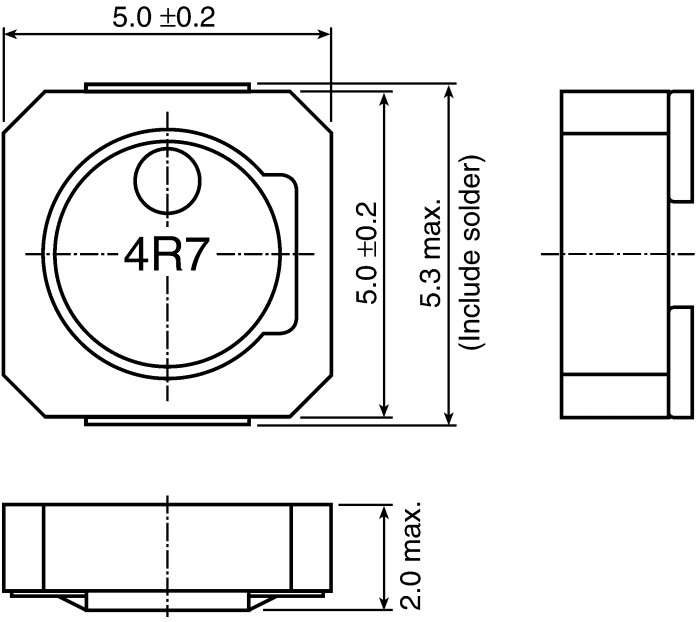

- Fits in a compact 5020 package with dimensions 5.3 mm length, 5 mm depth, and 2 mm height.
- Designed for surface mount applications with tape and reel packaging for automated assembly.
- Operating temperature ranges from -40°C to 105°C ensuring durability in various environments.
- Maximum DC resistance is 122 mΩ to maintain low power loss.
- Inductance tolerance ranges between ±20% and ±30% for flexibility in circuit design.
- Complies with RoHS standards, ensuring environmental safety and reliability.
Product Description
TDK VLCF5020T-4R7N1R7-1 shielded wirewound surface mount inductor with ferrite core offers a 4.7 μH inductance and supports a maximum DC current of 2.09 A, designed specifically for power circuit applications.
This professional series inductor includes a high magnetic shield construction that minimizes electromagnetic interference, making it ideal for sensitive portable electronic devices. The wirewound construction combined with ferrite core affirms stable and reliable performance under demanding conditions.
The compact 5020 package dimensions of 5.3 mm length, 5 mm depth, and 2 mm height enable use in space-constrained PCB layouts. Its surface mount termination style and tape and reel packaging facilitate efficient automated manufacturing processes.
The device operates reliably in temperatures ranging from -40°C to 105°C with an inductance tolerance of ±20% to ±30%, providing design flexibility. A maximum DC resistance of 122 mΩ ensures efficient power usage with minimal losses.
TDK’s VLCF5020T series inductors comply with RoHS environmental standards. Typical applications include power source inductors for mobile devices such as hard disk drives, digital video cameras, digital still cameras, LCD displays, and other DC to DC converter circuits.
The inductor features a magnetic shield construction to reduce electromagnetic interference. Constructed using wirewound technology with a ferrite core for stable inductance. Compact 5020 package suitable for dense PCB layouts.
Surface mount design supports automated assembly with tape and reel packaging. Wide operating temperature range ensures performance stability. Low maximum DC resistance optimizes power efficiency. Inductance tolerance offers flexibility for varied circuit needs.
RoHS compliant for environmentally safe manufacturing. Suitable for portable power supply applications in consumer electronics. Explore more Surface Mount Inductors and related electronic components at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 4.7 μH.
It supports a maximum DC current of 2.09 A.
The maximum DC resistance is 122 mΩ, which helps maintain low power loss.
The dimensions of the 5020 package are 5.3 mm in length, 5 mm in depth, and 2 mm in height.
It operates reliably within a temperature range of -40°C to 105°C.
The core material used in this inductor is ferrite.
This inductor features a surface mount termination style.
It is packaged in tape and reel format, which facilitates automated assembly.
The inductance tolerance ranges between ±20% and ±30%.
Yes, it complies with RoHS standards, ensuring environmental safety.
Typical applications include power source inductors for mobile devices like hard disk drives and digital cameras.
It is constructed using wirewound technology, which provides stable inductance.
