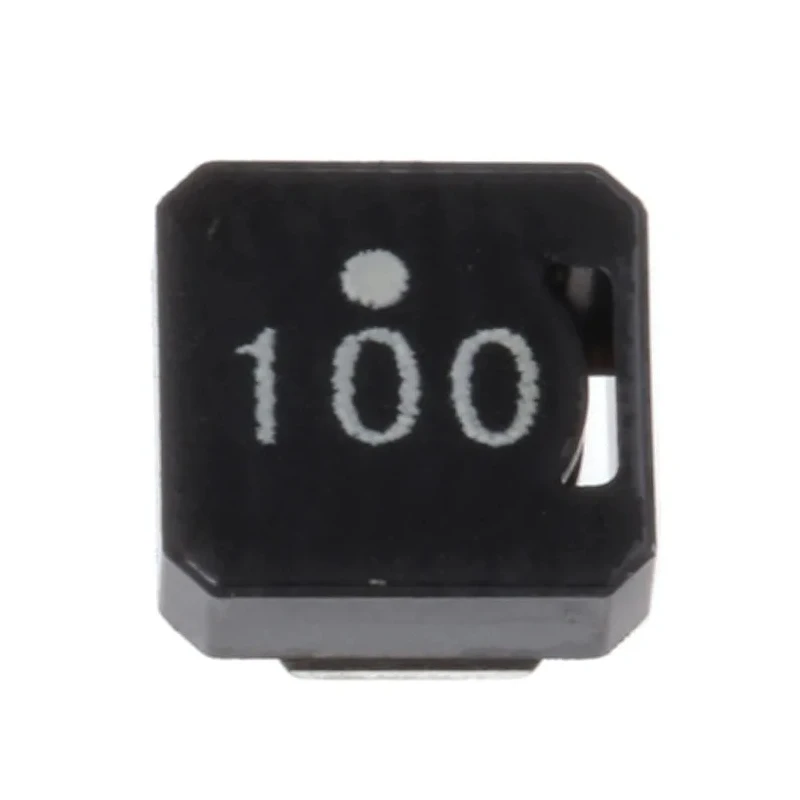

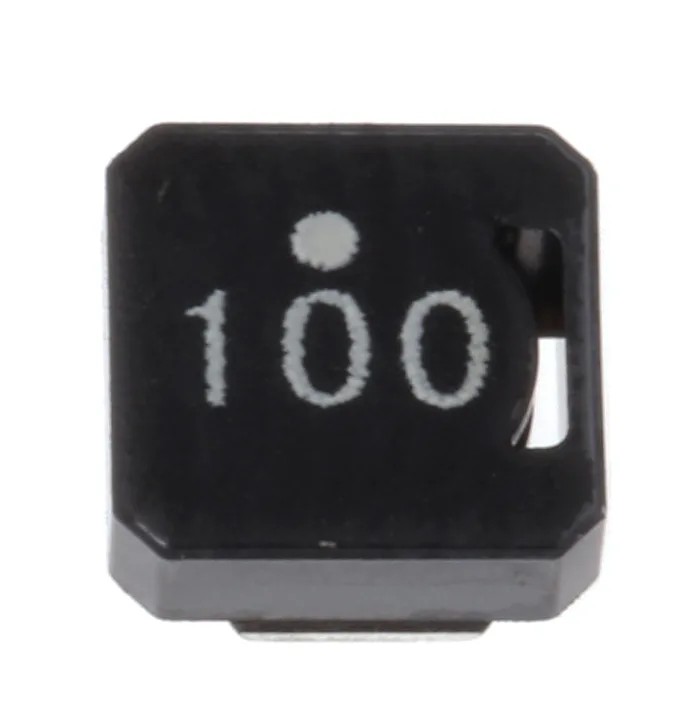

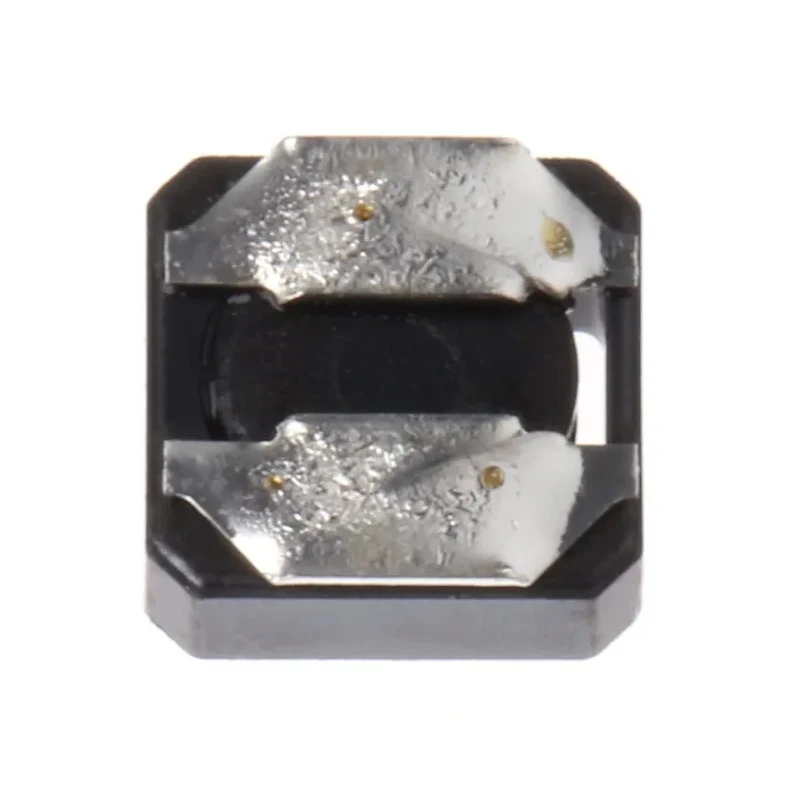

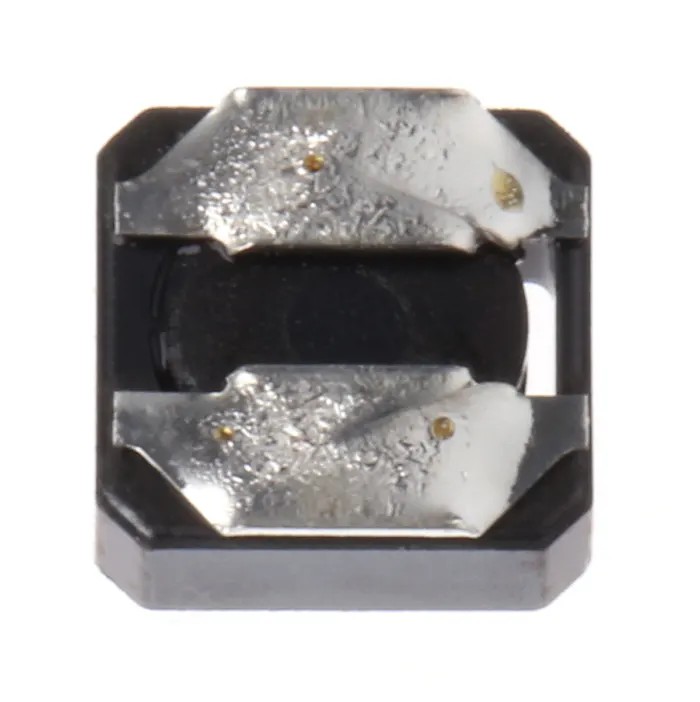

TDK Shielded Wirewound Surface Mount Inductor VLCF5020T-100M1R1-1, 10 μH ±20/±30 %, 1.5 A IDC, Ferrite Core, 5020 Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-100M1R1-1 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS Directive |
| Package/Case | 5020 |
| Maximum DC Current | 1.5A |
| Maximum DC Resistance | 237mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a high magnetic shield for power circuit applications.
- Offers low maximum DC resistance of 237 mΩ for efficient performance.
- Rated for operating temperatures from -40°C up to 105°C for robust usage.
- Compact 5020 package size with dimensions 5.3 mm length, 5 mm depth, and 2 mm height.
- Surface mount termination style for easy PCB integration.
- Core material is ferrite, molded in wirewound construction for reliability.
- Compliant with RoHS Directive ensuring environmental safety.
- Suitable for DC to DC converters in mobile devices, HDDs, DVCs, digital still cameras, and LCD displays.
Product Description
TDK VLCF5020T-100M1R1-1 shielded wirewound surface mount inductor features a ferrite core, offering an inductance of 10 μH with ±20/±30 % tolerance and supports a maximum DC current of 1.5 A. This inductor is designed in the 5020 package size with dimensions of 5.3 mm length, 5 mm depth, and 2 mm height, making it suitable for compact electronic designs.
The component is molded and constructed with a high magnetic shield to minimize electromagnetic interference, ensuring stability and efficiency in power circuits. Its low maximum DC resistance of 237 mΩ contributes to reduced power loss. It operates reliably within a temperature range of -40°C to 105°C, making it ideal for various industrial and commercial applications.
With its surface mount termination, this inductor allows easy automated PCB assembly. The ferrite core and wirewound construction provide robust performance for power inductors used in mobile devices such as hard disk drives, digital video cameras, digital still cameras, and LCD display backlight circuits. This product complies with the RoHS directive, ensuring it meets environmental regulations.
Constructed with a high magnetic shield for power circuit applications. Offers low maximum DC resistance of 237 mΩ for efficient performance. Rated for operating temperatures from -40°C up to 105°C for robust usage. Compact 5020 package size with dimensions 5.3 mm length, 5 mm depth, and 2 mm height.
Surface mount termination style for easy PCB integration. Core material is ferrite, molded in wirewound construction for reliability. Compliant with RoHS Directive ensuring environmental safety. Suitable for DC to DC converters in mobile devices, HDDs, DVCs, digital still cameras, and LCD displays.
This TDK VLCF5020T-100M1R1-1 inductor is an essential component for professionals designing power supply circuits requiring stable inductance and high current ratings in a compact form factor. It fits well in industrial electronics, telecommunications, computing, and consumer electronics manufacturing.
Explore our full range of Surface Mount Inductors and electronic components for your industrial and laboratory needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10 μH with a tolerance of ±20/±30 %.
It supports a maximum DC current of 1.5 A.
The dimensions of the 5020 package are 5.3 mm in length, 5 mm in depth, and 2 mm in height.
The maximum DC resistance is 237 mΩ, contributing to efficient performance.
It operates reliably within a temperature range of -40°C to 105°C.
This model features a surface mount termination style for easy PCB integration.
The core material is ferrite, which is molded in a wirewound construction.
Yes, it is compliant with the RoHS Directive, ensuring it meets environmental regulations.
The inductor is packaged in tape and reel format.
It is suitable for DC to DC converters in mobile devices, hard disk drives, digital video cameras, and LCD displays.
This inductor is part of the VLCF series.
The country of origin for this inductor is India.
