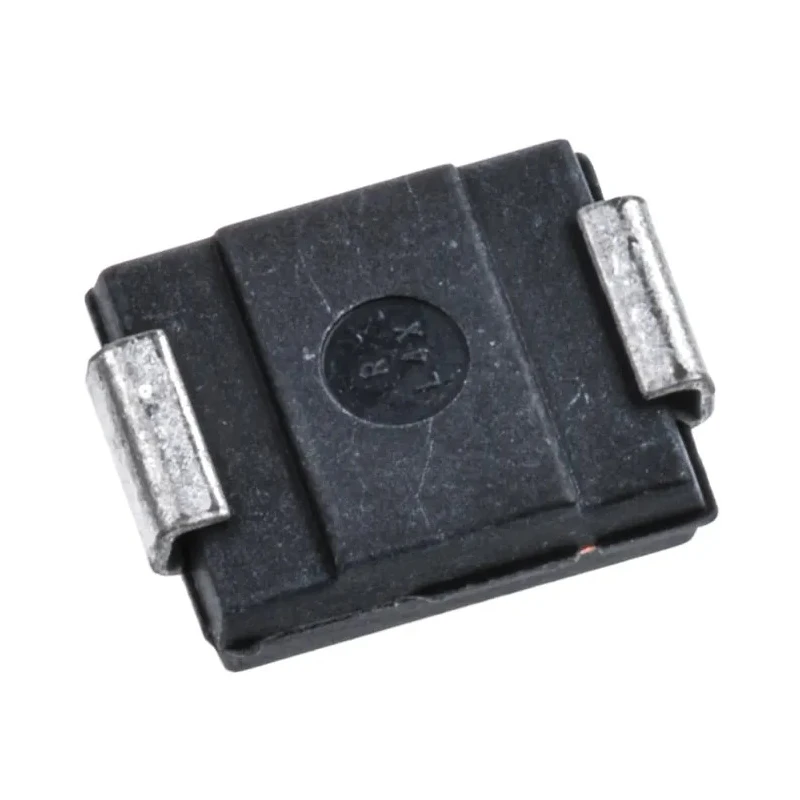

onsemi 60 V 4 A Diode Schottky 2-Pin DO-214AB MBRS360T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 6.86mm |
| Model | MBRS360T3G |
| Width | 5.84mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 125A |
| Maximum Forward Voltage Vf | 740mV |
| Vishay 60V 4A, Schottky Diode, 2-Pin DO-214AB VS-MBRS360-M3/9ATBrand | Vishay |
| onsemi Diode, MBRS360Brand | ON Semiconductor |
| Vishay Diode, SS36Brand | Vishay |
Key Features
- Compact DO-214AB (SMC) package ensures lightweight and efficient board mounting.
- Low forward voltage drop of 740mV provides high efficiency in low voltage rectification.
- Peak reverse current of only 150μA supports low leakage operation.
- Designed for operating temperatures from -65°C to 175°C for reliable performance.
- Peak non-repetitive forward surge current rated at 125 A for short transient conditions.
- AEC-Q101 automotive qualification ensures high quality and reliability in automotive systems.
- Epoxy moulded case provides durable protection and stress resistance.
Product Description
onsemi MBRS360T3G is a Schottky Barrier Diode designed for low voltage and high-frequency rectification. Housed in a compact DO-214AB (SMC) surface mount package, it delivers a maximum continuous forward current of 4 A with a peak reverse voltage of 60 V, making it suitable for power supply protection, freewheeling, and polarity protection applications.
Employing the Schottky barrier principle, this diode offers an excellent forward voltage drop to reverse current trade-off, ensuring high efficiency and low power losses in demanding environments. Its minimal peak reverse current of 150μA and surge current capability of 125 A improve operational reliability under transient loads.
The diode supports a broad operating temperature range from -65°C to 175°C and is epoxy moulded for stress protection and mechanical durability. The lightweight 11.7 mg package and surface mount form factor make it ideal for automated PCB assembly and space-constrained applications.
Certified to AEC-Q101 automotive standards, the MBRS360T3G is optimized for automotive electronics requiring stringent quality and environmental criteria. Compact and lightweight DO-214AB package for efficient surface mounting.
Low forward voltage drop minimizes power losses. High surge current rating for transient resilience. Wide operating temperature range ensures reliability. AEC-Q101 qualification for automotive use. Epoxy molded case provides mechanical and environmental protection.
Suitable for power supplies, automotive, and general low voltage rectification applications.
onsemi products cater to industrial, automotive, and electronic manufacturing sectors requiring precise and reliable semiconductor components. Explore more from onsemi in the Schottky Diodes category on EnvMart.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 4 A.
The peak reverse repetitive voltage rating is 60 V.
The maximum forward voltage drop is 740 mV.
The dimensions of the DO-214AB package are 6.86 mm in length, 5.84 mm in width, and 2.13 mm in height.
The diode operates within a temperature range of -65°C to 175°C.
The peak reverse current is 150 μA, supporting low leakage operation.
The peak non-repetitive forward surge current is rated at 125 A.
Yes, it is certified to AEC-Q101 automotive standards, ensuring high quality and reliability for automotive systems.
This model is a Schottky rectifier, designed for low voltage and high-frequency rectification.
It uses a surface mount type for efficient board mounting.
The diode features an epoxy moulded case, providing mechanical and environmental protection.
It is suitable for power supply protection, freewheeling, and polarity protection applications.
