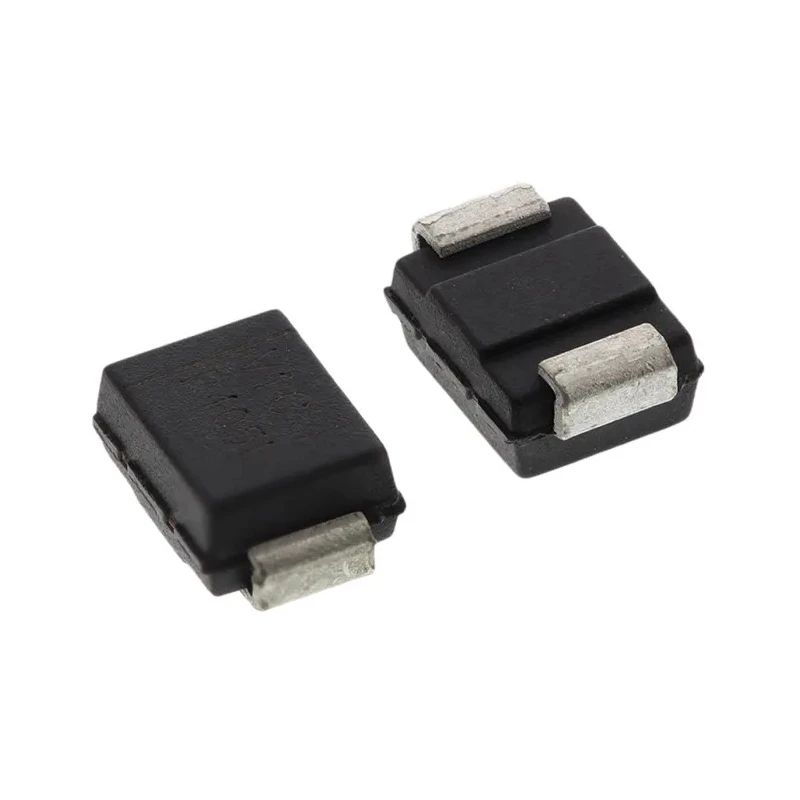

Vishay 15 V 1 A Schottky Diode 2-Pin Surface Mount DO-214AA VS-10BQ015-M3/5BT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | VS-10BQ015-M3/5BT |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 15V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 440mV |
| Vishay Diode, 10BQ015Brand | Vishay |
Key Features
- Compact surface mount 2-pin DO-214AA package for easy PCB integration.
- Maximum continuous forward current rated at 1 ampere.
- Peak reverse repetitive voltage up to 15 volts.
- Maximum forward voltage drop of 440 millivolts enabling efficient conduction.
- Operates in temperature range from -55°C to 125°C for versatile environmental conditions.
- Low peak reverse current of 500 microamperes for reduced leakage.
- Handles surge currents up to 140 amperes in non-repetitive events.
- Single diode configuration optimized for switching and rectification.
Product Description
Vishay VS-10BQ015-M3/5BT is a high-performance Schottky diode designed for industrial and electronic applications requiring fast switching, low forward voltage drop, and efficient rectification. Offered in a compact 2-pin surface mount DO-214AA package, it facilitates easy integration into printed circuit boards used in power supplies, voltage clamping, and reverse polarity protection circuits.
This diode supports continuous forward current up to 1 ampere and peak reverse repetitive voltage rating of 15 volts, making it suitable for low voltage DC power applications. Its maximum forward voltage drop of 440 millivolts minimizes power loss and enhances energy efficiency. The low leakage current (500 microamperes peak reverse current) helps reduce unwanted power dissipation.
Operating temperature ranges from -55°C to 125°C ensure reliability in harsh environments and industrial conditions. The diode withstands high surge currents up to 140 amperes for transient load handling. Its single diode configuration and fast switching capability provide superior performance in switch-mode power supplies and other fast switching electronic circuits.
The VS-10BQ015-M3/5BT diode conforms to industry standards, although no specific approvals or automotive certifications are included. Compact DO-214AA surface mount package. 15 V peak reverse voltage capability. 1 A maximum continuous forward current rating.
Low forward voltage drop for efficient operation. Wide operating temperature range from -55°C to 125°C. Low peak reverse current minimizes leakage. High surge current rating of 140 A. Single diode configuration suitable for fast switching.
Applications include power supplies, rectifiers, and protection circuits.
This diode provides reliable performance for industrial, commercial, laboratory, and electronics manufacturing uses. It is a suitable component for designers seeking efficient Schottky rectifiers with robust ratings. Browse more Vishay semiconductors and Schottky Diodes on EnvMart for comprehensive component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 ampere.
The peak reverse repetitive voltage for this model is 15 volts.
The maximum forward voltage drop is 440 millivolts, which helps in minimizing power loss.
It operates within a temperature range from -55°C to 125°C.
The peak reverse current is rated at 500 microamperes.
This diode can handle surge currents up to 140 amperes in non-repetitive events.
It comes in a compact 2-pin surface mount DO-214AA package.
This model has a pin count of 2.
The diode configuration is single, optimized for switching and rectification.
The country of origin for this diode is India.
It is suitable for applications such as power supplies, rectifiers, and protection circuits.
This diode belongs to the VSX series.
