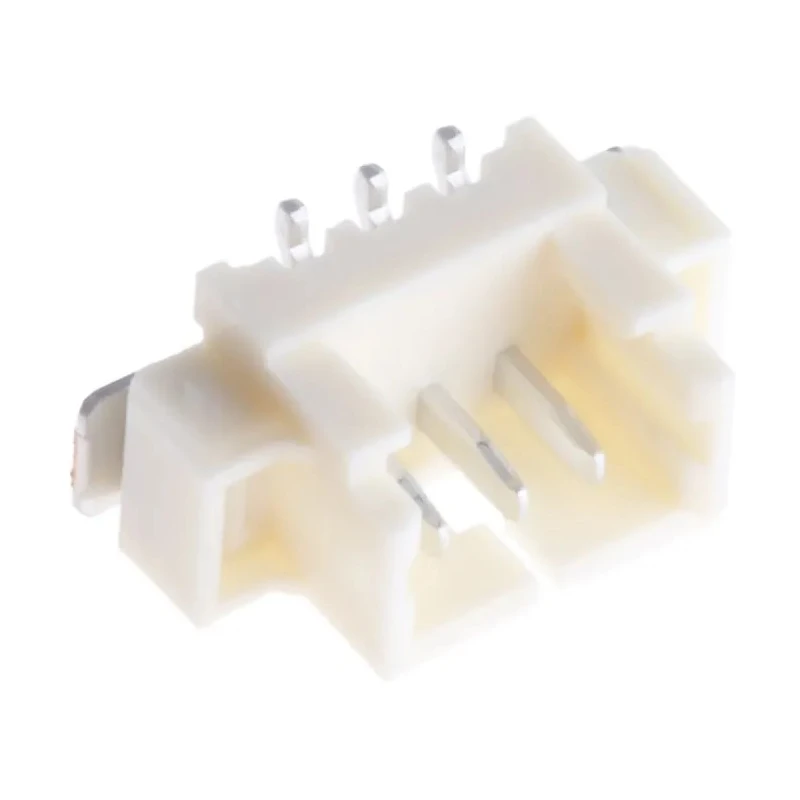

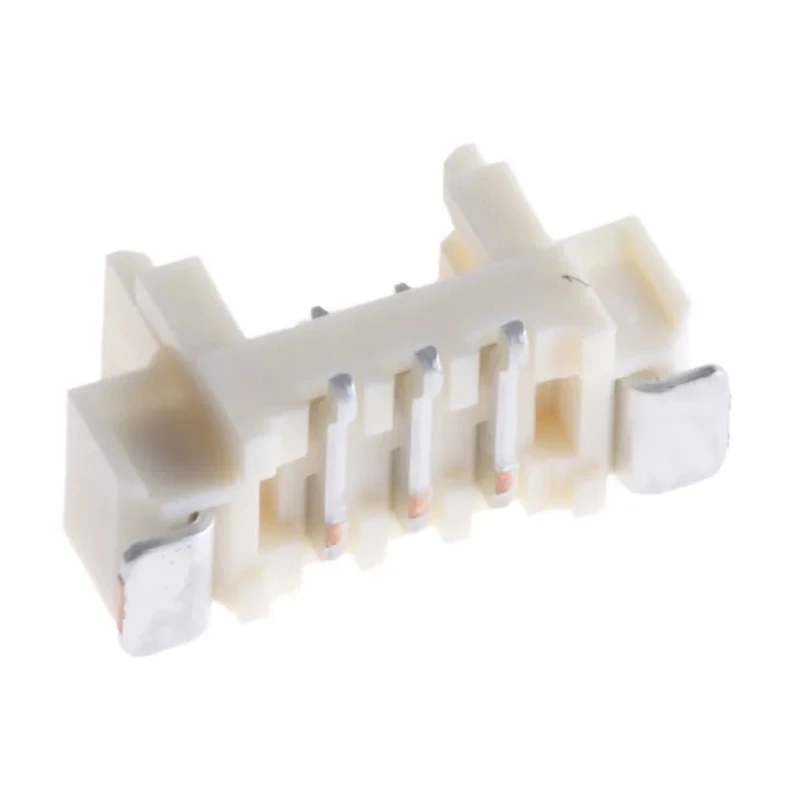

Molex PicoBlade Series Straight Surface PCB Header 3 Contact 1.25mm Pitch Shrouded 53398-0371
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 3 male contacts arranged in a single row for compact PCB connectivity.
- 1.25 mm pitch between pins ensures accurate signal transmission and board integration.
- Shrouded housing design protects connectors from physical damage and misalignment.
- Constructed with durable nylon housing and phosphor bronze contacts plated with tin for reliable performance.
- Rated for 1 A current and 125 V voltage to handle low power electronic signals safely.
- Surface mount installation with strain relief for solder trails preventing cracking and enhancing durability.
- Wide operating temperature range from -40°C to 105°C enables use in harsh environmental conditions.
- Incorporates a friction locking mechanism utilizing two latching ramps for secure connection resistant to vibration and impact.
Product Description
Molex 53398-0371 is a high-quality PCB header from the PicoBlade Series, designed for reliable wire-to-board connections. This component features three male contacts arranged in a single straight row with a 1.25 mm pitch, enabling compact and precise surface mounting on circuit boards. The shrouded nylon housing provides protection against connector damage and ensures correct mating alignment.
Crafted with phosphor bronze contacts plated in tin, this PCB header guarantees excellent conductivity and corrosion resistance. It operates safely at a voltage rating of 125 V and supports currents up to 1 A, suitable for low power electronic components. The termination type is solder, supported by integrated tabs that offer strain relief to solder joints, reducing the risk of cracking over time.
Designed to endure challenging operating conditions, it performs reliably in temperatures ranging from -40°C to 105°C. A friction locking mechanism with dual latching ramps secures the header connection, preventing accidental disconnection in environments prone to impact or vibration.
This product meets the needs of various demanding industrial applications including electronic equipment manufacturing and factory process control panels. The PCB Header’s vertical mounting configuration and wire-to-board connector system align with modern electronics assembly standards.
3 male contacts provide reliable electrical connectivity. Nylon housing and tin-plated phosphor bronze contacts ensure durability. Shrouded design protects from mechanical damage and misalignment. Supports 1 A current and 125 V voltage ratings.
Wide temperature tolerance from -40°C to 105°C. Friction locking mechanism prevents accidental disconnections. Surface mount type for easy PCB integration. Ideal for electronic device assembly and factory control panels.
Explore the range of Molex PCB connectors on EnvMart for dependable, high-performance components engineered for precision and longevity in electronics manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header have a pitch of 1.25 mm, allowing for compact and precise surface mounting on circuit boards.
This model is rated for a maximum voltage of 125 V, suitable for low power electronic signals.
The Molex PicoBlade Series header features three male contacts arranged in a single row.
It uses surface mount installation, which facilitates easy integration onto circuit boards.
The housing is made of nylon, while the contacts are constructed from phosphor bronze and plated with tin for excellent conductivity.
It operates reliably within a temperature range of -40°C to 105°C, making it suitable for harsh environmental conditions.
This PCB header is rated for a maximum current of 1 A, suitable for low power applications.
Yes, it incorporates a friction locking mechanism with dual latching ramps to secure connections and prevent accidental disconnection.
The termination type for this model is solder, supported by integrated tabs that provide strain relief to solder joints.
This connector is shrouded, which helps protect against mechanical damage and ensures correct mating alignment.
It is suitable for various industrial applications, including electronic equipment manufacturing and factory process control panels.
The country of origin for this product is India.
