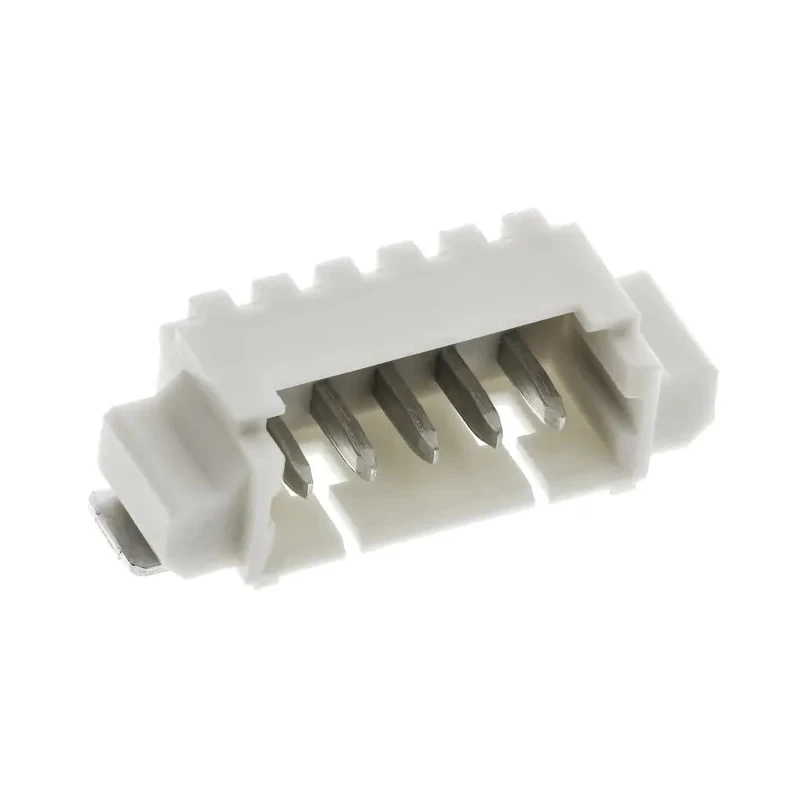

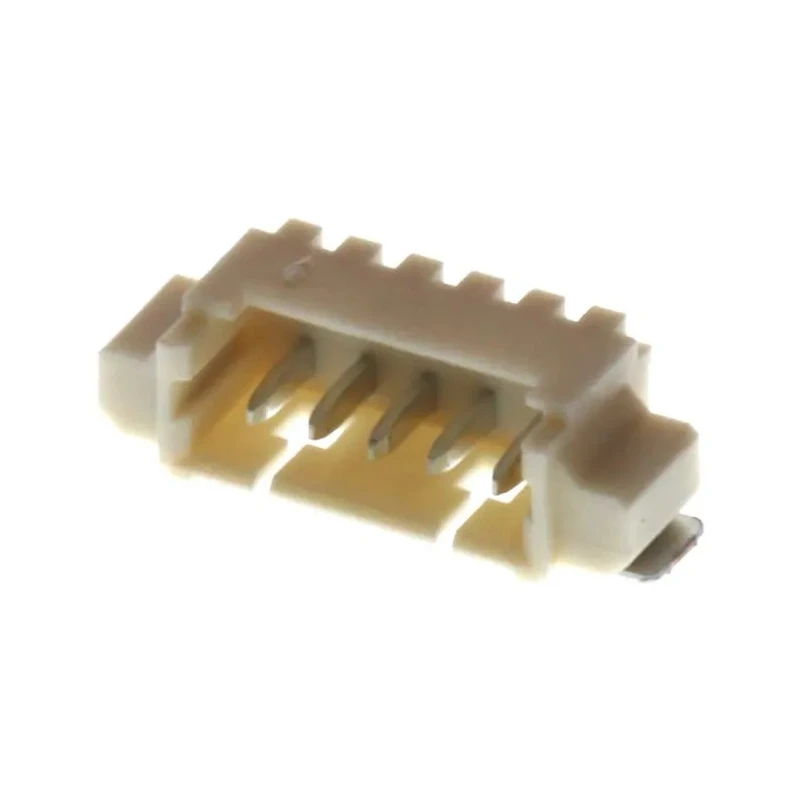

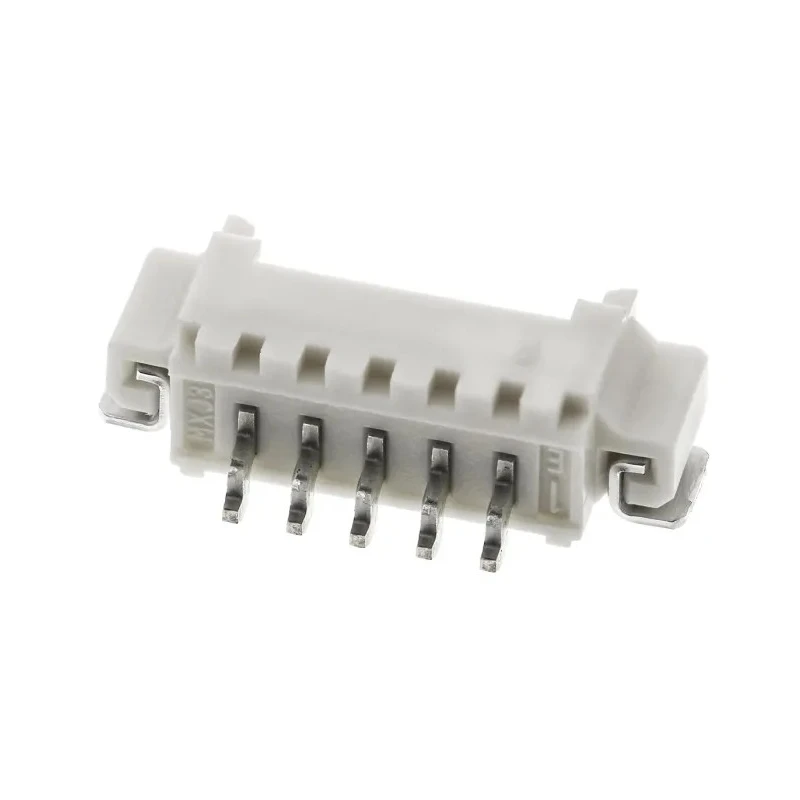

Molex PicoBlade Series Right Angle Surface PCB Header 5 Contact 1.25 mm Pitch 1 Row Shrouded 53261-0571

Molex 53261-0571 PicoBlade Series Right Angle Surface PCB Header features 5 male contacts arranged in a single row with a compact 1.25 mm pitch, designed for high-density wire-to-board connections.

The shrouded housing, made of durable thermoplastic material, protects the pins and improves connection reliability in demanding environments. The right angle orientation facilitates efficient surface mounting on printed circuit boards.

This connector supports a voltage rating of 125 V and a current rating of 1 A, suitable across various sectors such as industrial process controls, medical devices, and automotive alarm systems.

The phosphor bronze contacts with tin plating ensure excellent conductivity and corrosion resistance. Designed for reliable solder termination, this PCB Header maintains secure mechanical and electrical connections.

It operates effectively within a wide temperature range from -40°C to 105°C, making it dependable in harsh industrial conditions. Additionally, it includes a friction lock mechanism that safeguards against accidental unmating during handling or operation.

1.25 mm pitch for compact, space-saving PCB layouts. Robust shrouded housing for pin protection. Right angle surface mount design for versatile PCB integration. Supports 125 V and 1 A ratings for electrical compatibility.

Thermoplastic housing with phosphor bronze, tin-plated contacts. Solder termination ensures solid attachment to PCB. Wide operating temperature range from -40°C to 105°C. Friction lock feature for secure mating connection.

Suitable for automotive, industrial, and medical applications. Explore more PCB connector solutions from Molex and achieve reliable electrical assembly for your industrial and commercial projects with EnvMart.
