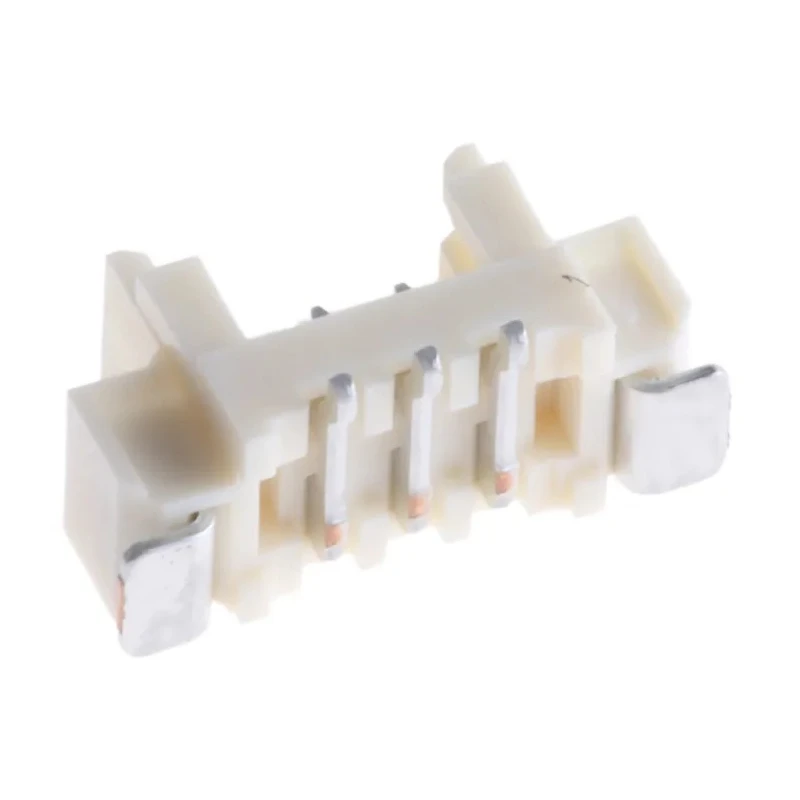

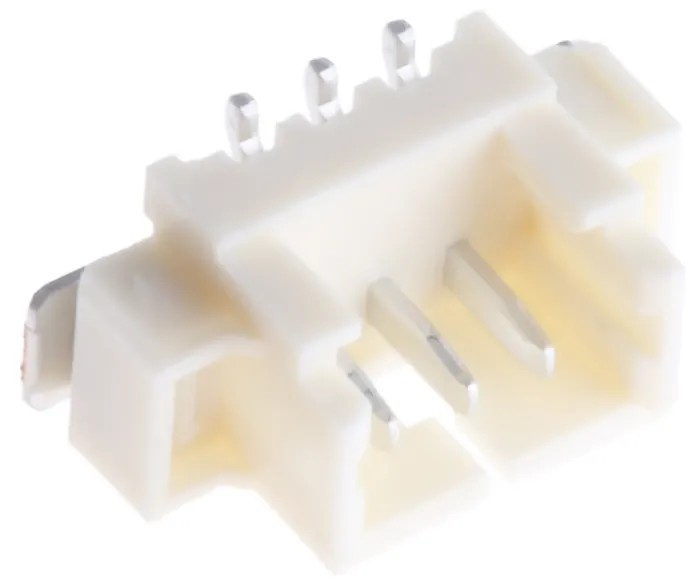

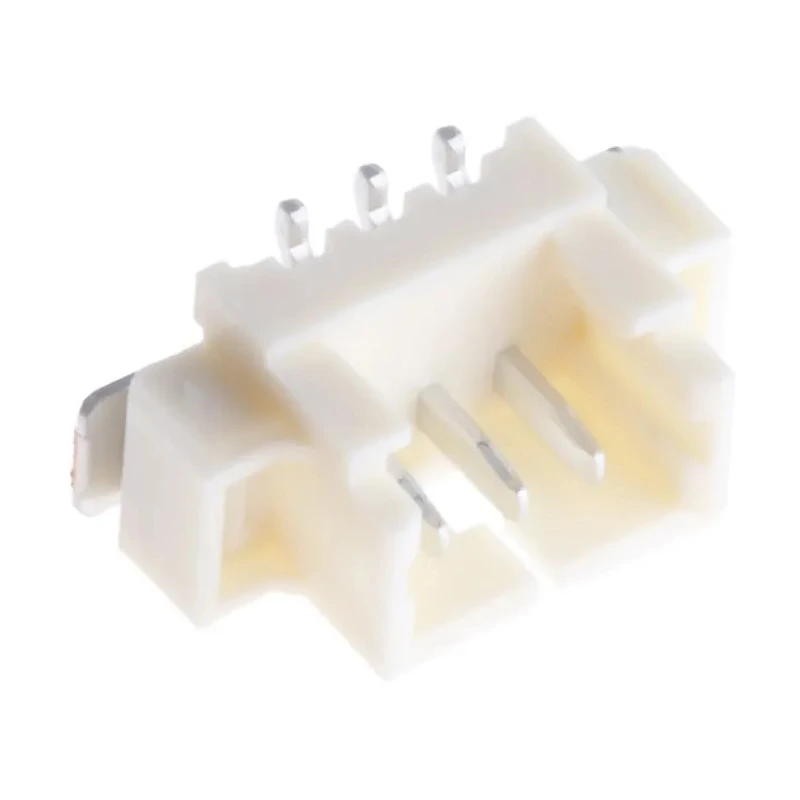

Molex PicoBlade Series Straight Surface PCB Header 3 Contact 1.25mm Pitch 1 Row Shrouded 53398-0371

Molex 53398-0371 PicoBlade Series Straight Surface PCB Header is a high-quality electronic component featuring 3 contacts arranged in a single row with 1.25 mm pitch spacing and shrouded construction.

This connector is engineered for wire-to-board applications, providing secure and reliable electrical connections with a current rating of 1 amp and voltage rating of 125 volts. The housing is made of durable nylon material offering robust insulation and mechanical protection.

The contacts are fabricated from phosphor bronze with tin plating to ensure excellent conductivity and resistance to corrosion. The shrouded design partially covers the pins to prevent bending and mechanical damage during assembly and operation.

A friction locking mechanism utilizing dual latching ramps secures the mating parts firmly, minimizing risk of accidental disconnection even in impact-prone industrial and commercial equipment.

Operating comfortably within a temperature range from -40°C up to 105°C, this PCB header suits demanding environments such as industrial control panels and electronic instrumentation.

The vertical mounting with surface termination type facilitates efficient PCB layout and soldering processes. The polarized mating feature prevents incorrect connections enhancing reliability of complex electronic assemblies.

Supports a current rating of 1 ampere for low power applications. Operates at a voltage rating of 125 volts ensuring safety and compatibility. Constructed with nylon housing for durable insulation and mechanical strength.

Features phosphor bronze contacts plated with tin for reliable conductivity. Frictions locking mechanism prevents accidental disconnection in impact-prone environments. Wide operating temperature range from -40°C to +105°C for challenging conditions.

Partial shrouding protects connectors from mechanical damage and ensures proper mating. Designed for vertical mounting with surface mount termination for efficient PCB assembly. Polarized design avoids incorrect mating and supports optimal performance.

This PCB Header is ideal for use in various industrial, manufacturing, electronic equipment, and control panel applications where secure, compact, and reliable circuit board connections are required.
