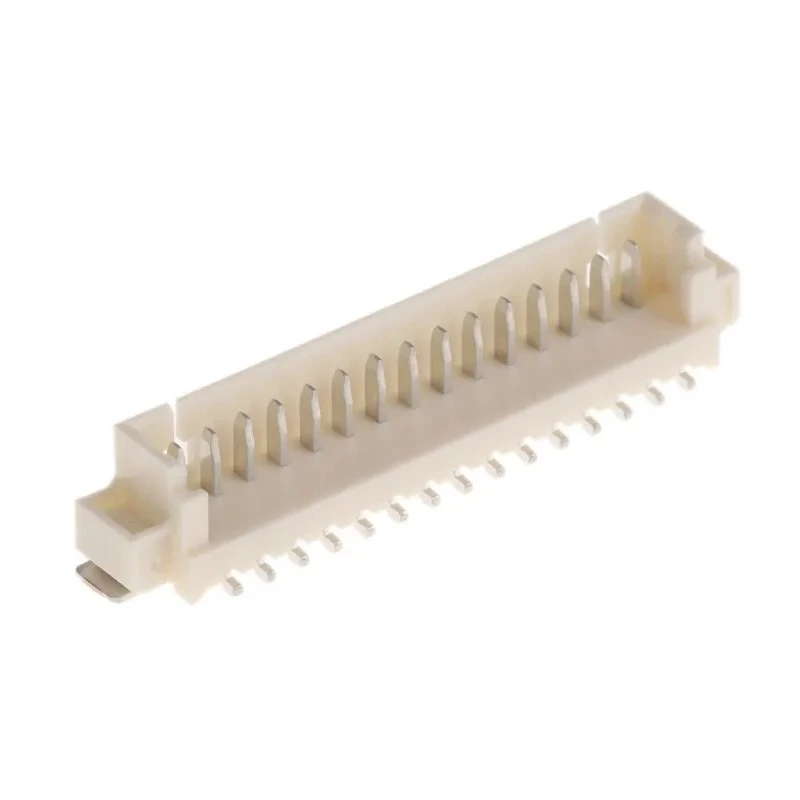

Molex PicoBlade Series Straight Surface PCB Header, 15 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53398-1571
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact 1.25 mm pitch reduces PCB space requirements by up to 45 percent.
- Supports a current rating of 1 ampere for effective power handling.
- Shrouded connector housing with friction locking mechanism ensures secure mating.
- Constructed with durable nylon housing and phosphor bronze contacts plated with tin.
- Single-row, straight orientation suitable for surface mount applications.
- Operates reliably from -40 degrees Celsius up to a maximum of 105 degrees Celsius.
- Solder termination type with solder tabs provides strong PCB retention and strain relief.
- Male contact gender for wire-to-board system integration.
Product Description
Molex 53398-1571 PicoBlade Series Straight Surface PCB Header is a high-density PCB connector featuring 15 contacts with a compact 1.25 mm pitch and a single row design. This shrouded header is designed for surface mounting, providing a friction locking mechanism that prevents accidental disconnects due to vibration or mishandling.
The connector housing is made of durable nylon, while the contacts are phosphor bronze plated with tin for excellent conductivity and corrosion resistance. Rated for 1 ampere current at 125 volts, this PCB header operates reliably in temperatures ranging from -40 degrees Celsius to 105 degrees Celsius.
Its solder termination with tabs provides secure retention on the PCB and strain relief, helping prevent solder joint cracking. Suitable for wire-to-board interconnections, this connector saves up to 45 percent board space compared to traditional 2.00 mm pitch systems.
Applications include automotive alarm systems, car audio and DVD players, industrial process controls, and medical patient monitors, where compact, reliable connections are essential.
Compact 1.25 mm pitch reduces PCB space requirements by up to 45 percent. Supports a current rating of 1 ampere for effective power handling. Shrouded connector housing with friction locking mechanism ensures secure mating.
Constructed with durable nylon housing and phosphor bronze contacts plated with tin. Single-row, straight orientation suitable for surface mount applications. Operates reliably from -40 degrees Celsius up to a maximum of 105 degrees Celsius.
Solder termination type with solder tabs provides strong PCB retention and strain relief. Male contact gender for wire-to-board system integration. Designed for high-density harness applications in automotive, industrial, and medical equipment.
Explore more Molex PCB Header connectors and related components in EnvMart's Electronics & Electricals category to find the perfect fit for your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 1.25 mm, which helps reduce PCB space requirements by up to 45 percent compared to traditional 2.00 mm pitch systems.
It supports a current rating of 1 ampere, suitable for effective power handling in various applications.
The housing is made of durable nylon, while the contacts are constructed from phosphor bronze plated with tin for improved conductivity and corrosion resistance.
The maximum operating temperature for this model is 105 degrees Celsius, allowing it to function reliably in high-temperature environments.
It features a solder termination type with solder tabs, providing strong PCB retention and strain relief to prevent solder joint cracking.
This header has 15 contacts, making it suitable for high-density harness applications.
It has a straight orientation, which is ideal for surface mount applications.
The contact gender is male, designed for wire-to-board system integration.
The minimum operating temperature is -40 degrees Celsius, allowing it to operate in low-temperature environments.
The country of origin for this PCB header is India.
It is suitable for applications such as automotive alarm systems, car audio and DVD players, industrial process controls, and medical patient monitors.
It supports a wire-to-board connector system, facilitating efficient electrical connections.
