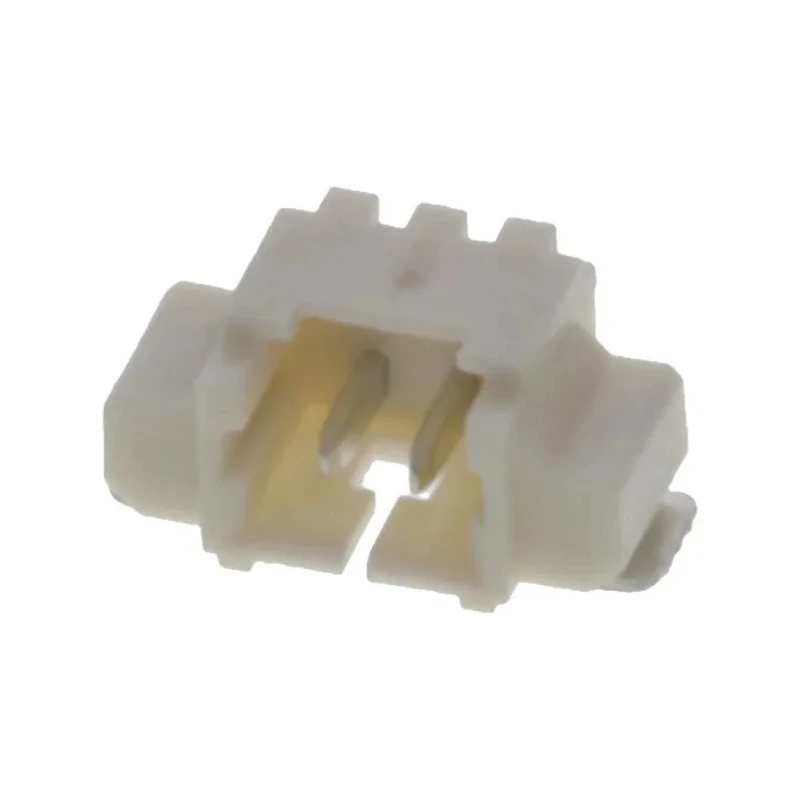

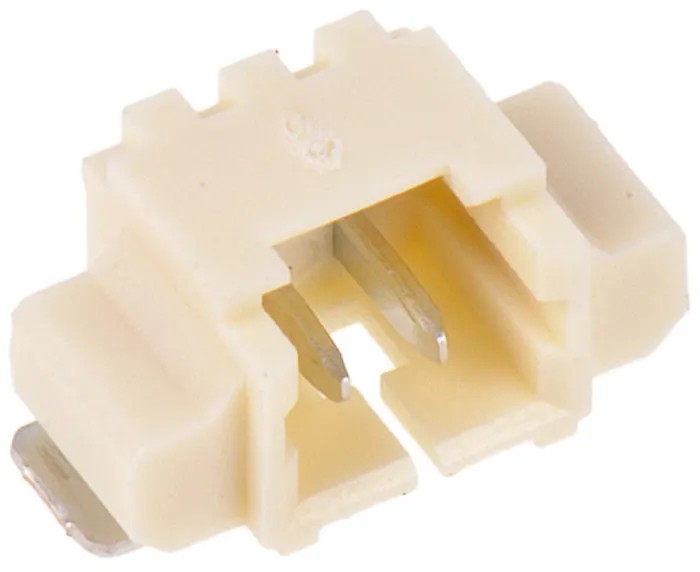

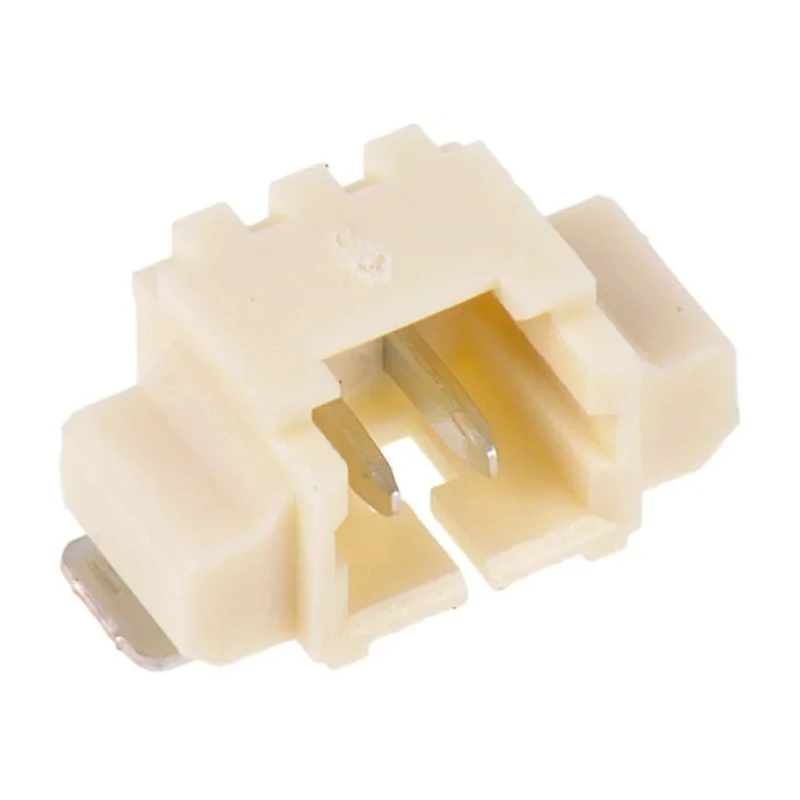

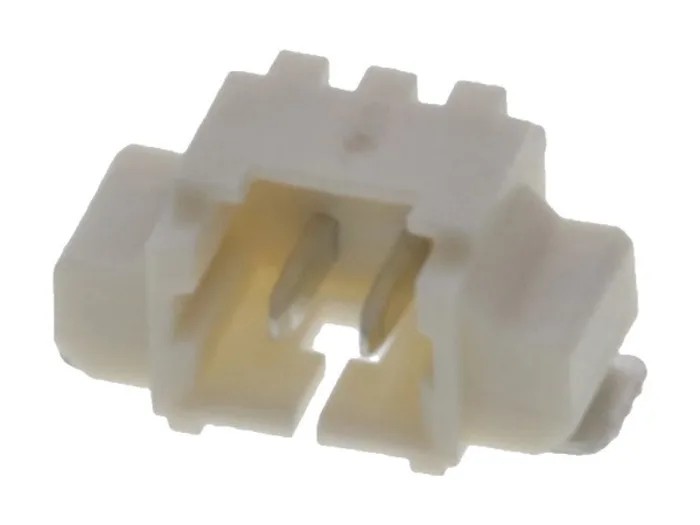

Molex PicoBlade Series Right Angle Surface PCB Header, 2 Contact(s), 1.25 mm Pitch, 1 Row, Shrouded 53261-0271

Molex 53261-0271 PicoBlade Series Right Angle Surface PCB Header is a high-quality connector designed for reliable wire-to-board interconnections in electronics assemblies. Featuring a compact 1.25 mm pitch across 2 contacts in a single row, this shrouded male header offers space-saving solutions and robust performance.

The right-angle design allows easier integration into densely packed electronic enclosures and tight spaces compared to vertical headers. The housing is made of durable polyamide thermoplastic material capable of withstanding operating temperatures from -40°C to 105°C while resisting wear and heat damage, suitable for industrial and automotive environments.

The phosphor bronze contacts are tin plated to provide excellent corrosion resistance and long life under harsh usage conditions. A friction lock mechanism ensures components remain securely mated during vibrations or shocks, supported by solder tabs adding strain relief and firm retention on the PCB surface.

Typical applications for this Molex PicoBlade header include automotive alarm systems, DVD players, medical equipment, and industrial process control systems. The connector safely handles low-power signals with a maximum rating of 1A current and 125V voltage.

This product is part of the 53621 PicoBlade series from Molex, known for compact 1.25 mm pitch headers that reduce PCB space requirements by up to 45% compared to 2.00 mm pitches while maintaining reliable electrical performance.

The 1.25 mm pitch supports miniature PCB designs. Right-angle and shrouded design for protection and space efficiency. High-temperature polyamide housing enhances durability. Phosphor bronze contacts with tin plating offer corrosion resistance.

Friction lock and solder tabs improve stability and mechanical retention. Rated for 1A current at 125V voltage for low-power applications. Wide industrial and automotive use cases. Explore more PCB connectors and headers at EnvMart for quality assurance and competitive technology solutions in electronics manufacturing.
