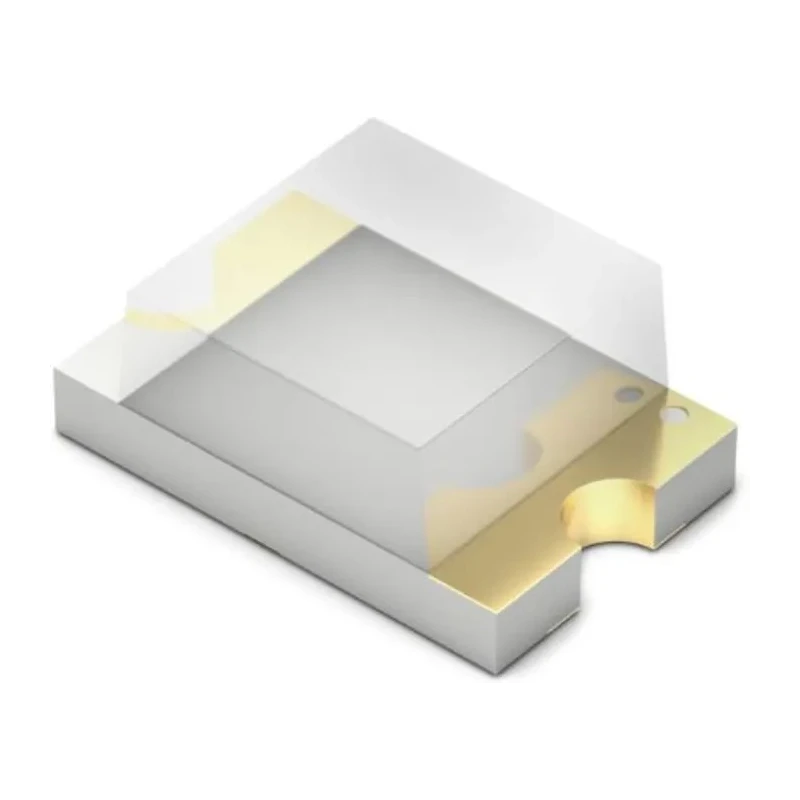

Wurth Elektronik Infrared Phototransistor WL-STCW 130°, Through Hole 2-Pin 0805 Package 1540801NBA300
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 2mm |
| Model | 1540801NBA300 |
| Packaging | Tape & Reel |
| Width | 1.3mm |
| Mount Type | Through Hole |
| Series | WL-STCW |
| Maximum Operating Temperature | 85°C |
| Package Type | 0805 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | REACH, RoHS, IEC 61249-2-21 |
| Number of Pins | 2 |
| Peak Wavelength | 940nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 130 ° |
| Collector Current | 1mA |
| Maximum Light Current | 0.02μA |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 5V |
Key Features
- The device detects infrared spectrums with a peak wavelength of 940nm.
- It supports a maximum collector current of 1mA and light current of 0.02μA.
- Designed for through-hole mount with standard 0805 package dimensions of 2mm length, 1.3mm width, and 0.8mm height.
- Operating temperature range is from -40°C to 85°C, ensuring reliability across applications.
- Meets REACH, RoHS, and IEC 61249-2-21 standards for environmental and safety compliance.
- Perfect for integration in infrared detection and optoelectronic circuits requiring high sensitivity and reliability.
Product Description
Wurth Elektronik 1540801NBA300 Infrared Phototransistor is a high-performance optoelectronic component designed for infrared detection. It features Si chip technology with a water-clear lens to provide high sensitivity and reliability. The device is housed in a compact 2-pin through-hole 0805 package measuring 2mm in length, 1.3mm in width, and 0.8mm in height, suitable for precise placement on printed circuit boards.
This phototransistor detects infrared spectrum with a peak wavelength of 940nm and supports a maximum collector current of 1mA and a maximum light current of 0.02μA. It has an angle of half sensitivity of 130°, making it effective for wide-angle infrared detection applications. The product operates reliably within a temperature range of -40°C to 85°C, which ensures stable performance in various industrial, electronic, and laboratory environments.
The WL-STCW series phototransistor complies with REACH, RoHS, and IEC 61249-2-21 standards, reflecting environmental and safety standards compliance. It is ideal for use in electronic components, power and connectors, displays and optoelectronics, and specialized infrared sensing applications.
Detects infrared spectrums with peak wavelength 940nm. Maximum collector current of 1mA for sensitive signal reception. Compact 0805 through-hole package with 2 pins. Wide operating temperature range from -40°C to 85°C for durability.
Complies with REACH, RoHS, and IEC safety standards. Suitable for use in electronics, optoelectronics, and industrial sensing.
This Wurth Elektronik Phototransistor is an excellent choice for engineers and designers seeking high sensitivity infrared detection components for their electronic projects and industrial applications. It offers a precise, reliable, and compliant solution for optical sensing in complex environments.
Explore a wide array of infrared and optoelectronic components at EnvMart for diverse industrial, laboratory, and commercial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared phototransistor is 940nm, enabling it to effectively detect infrared spectrums.
This model supports a maximum collector current of 1mA, allowing for sensitive signal reception in various applications.
The dimensions of the 0805 package are 2mm in length, 1.3mm in width, and 0.8mm in height, making it suitable for precise placement on PCBs.
The angle of half sensitivity for this phototransistor is 130°, which enhances its effectiveness in wide-angle infrared detection applications.
This device operates reliably within a temperature range of -40°C to 85°C, ensuring stable performance across various environments.
It complies with REACH, RoHS, and IEC 61249-2-21 standards, reflecting its adherence to environmental and safety regulations.
This phototransistor has 2 pins, designed for through-hole mounting.
The maximum light current for this model is 0.02μA, which is suitable for detecting low light levels.
This phototransistor is designed for through-hole mounting, allowing for easy integration into various electronic circuits.
The collector-emitter voltage rating for this phototransistor is 35V, which defines its operational limits in circuits.
This infrared phototransistor is suitable for integration in infrared detection and optoelectronic circuits that require high sensitivity and reliability.
The country of origin for this product is India, reflecting its manufacturing location.
