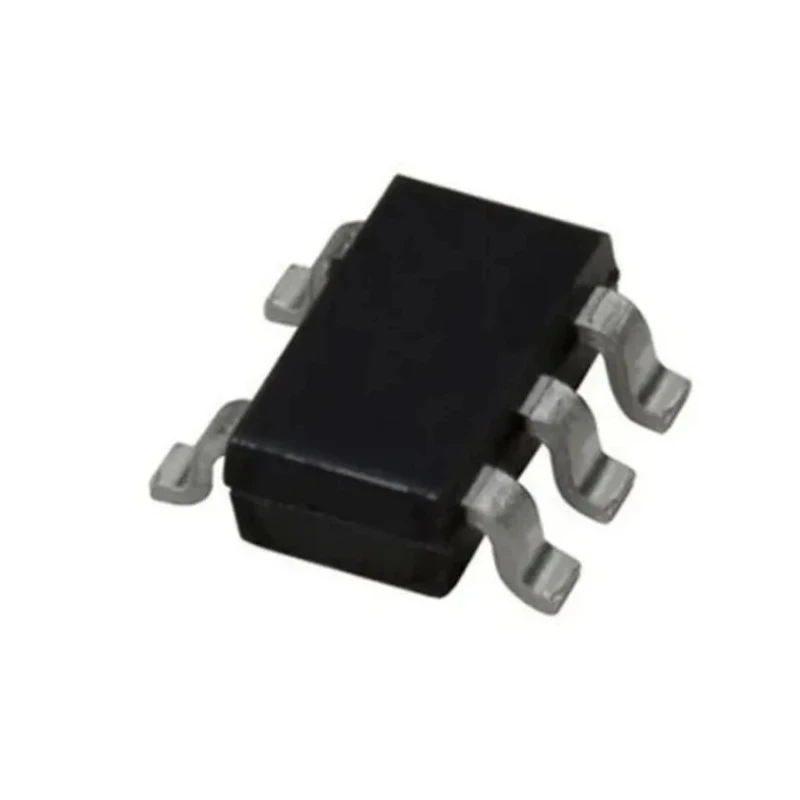

DiodesZetex 1 2-Input OR Logic Gate, CMOS LVC Logic Family, Surface Mount, 5-Pin SOT-25 74LVC1G32QW5-7

DiodesZetex 74LVC1G32QW5-7 is a single 2-input positive OR logic gate designed within the CMOS LVC logic family in a compact surface mount SOT-25 package. This component is automotive compliant, meeting the stringent AEC-Q100 automotive standard for reliability and performance in harsh environments.

This logic gate provides a push-pull output configuration that supports a maximum high-level output current of -32 mA and a maximum low-level output current of 32 mA, delivering strong drive capabilities. The device operates over a wide supply voltage range from 1.65 volts up to 5.5 volts, enabling versatile application in various electronic circuits.

With a maximum propagation delay time of 5.5 nanoseconds at the recommended load capacitance, the 74LVC1G32QW5-7 supports high-speed switching applications. Its compact dimensions, 3.1 mm length and 1.15 mm height, make it suitable for dense printed circuit board layouts.

Engineered to function reliably across a broad ambient temperature range from -40 °C to +125 °C, it is ideal for automotive and industrial environments requiring rugged electronic components. The device’s Schmitt trigger input is not included, confirming its standard logic input characteristics.

Single 2-input OR gate functionality provided in one element. CMOS technology ensures low power consumption and high noise immunity. Surface mount SOT-25 package with 5 pins for compact board space usage. Compliance with automotive quality and reliability standards AEC-Q100.

Push-pull output suitable for driving various digital loads. Wide operating temperature and supply voltage range for flexible deployment. No Schmitt trigger input, standard logic operation. Compact package dimensions for space-constrained designs.

Power down signal isolation capability enhances system robustness. High speed switching with 5.5 ns maximum propagation delay.

This 74LVC1G32QW5-7 Logic Gate is commonly used in industrial automation, automotive electronics, consumer electronics, and digital circuit designs requiring reliable logic OR functionality. It supports integration into high-density boards where space and performance are critical. For detailed technical information, reference to official datasheets and technical documents is recommended.
