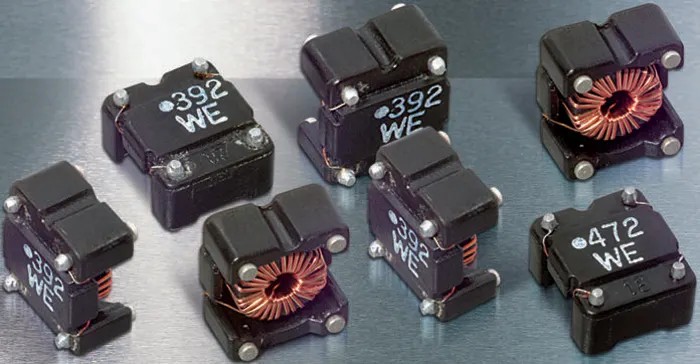

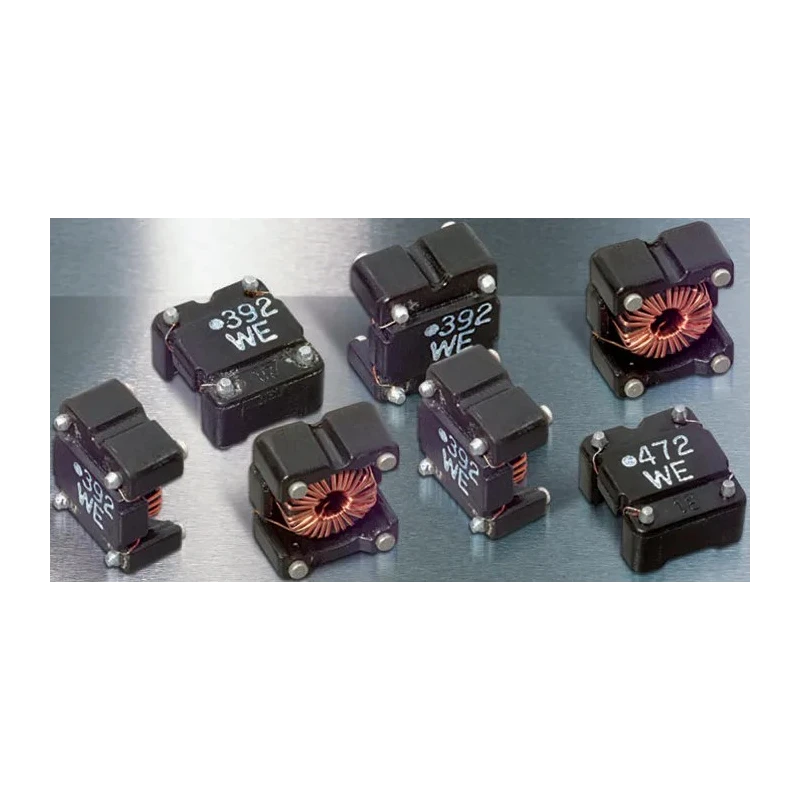

Wurth Elektronik Surface Mount Common Mode Line Filter with Ferrite Core 3.3 mH Dual Inductance ±40 % 650 mA 744272332

Wurth Elektronik 744272332 is a surface mount common mode line filter featuring a ferrite core and dual inductance of 3.3 mH ±40 %. It supports a maximum DC current of 650 mA and is designed for robust noise suppression in electronic power and data lines.

The component utilizes a ferrite core to minimize electromagnetic interference and is constructed as a dual inductor to handle differential noise efficiently. It operates reliably within a temperature range of -40°C to 125°C, making it suitable for industrial and automotive applications.

This type WE-SL5 component is housed in a compact 4-way SMD package with dimensions 10 mm length, 6.5 mm height, and 8.7 mm depth. Maximum DC resistance is 360 mΩ, contributing to low insertion loss in circuits.

Its maximum self-resonant frequency is 100 kHz, appropriate for filtering noise in low-frequency power supply and data transmission applications. The surface mount termination style enables streamlined PCB assembly, optimized for tape and reel packaging for volume production.

Common applications include CAN bus systems, USB communication lines, Firewire, and general data and power line noise suppression. The filter complies with RoHS directives and automotive quality standards (AEC-Q200), assuring environmental safety and reliability.

This surface mount line filter features a Ferrite Core construction for optimal performance. Inductance is rated at 3.3 mH with a dual inductor design. Maximum DC current rating of 650 mA ensures suitability for moderate current applications.

Inductance tolerance is ±40 percentage, accommodating typical manufacturing deviations. Operating temperature range extends from -40°C to 125°C for reliable thermal tolerance. Packaging is tape and reel, suitable for automated assembly processes.

Core material is ferrite, providing effective EMI suppression. Maximum self-resonant frequency is 100 kHz, defining frequency response limits. Termination style is surface mount, compatible with SMT assembly techniques. Complies with RoHS standards and automotive standard AEC-Q200.

Ideal for use in industrial electronics, automotive control units, communication devices, and data line filtering. Wurth Elektronik components are known for high quality and precision engineering, supporting enhanced reliability in complex electronic systems.
