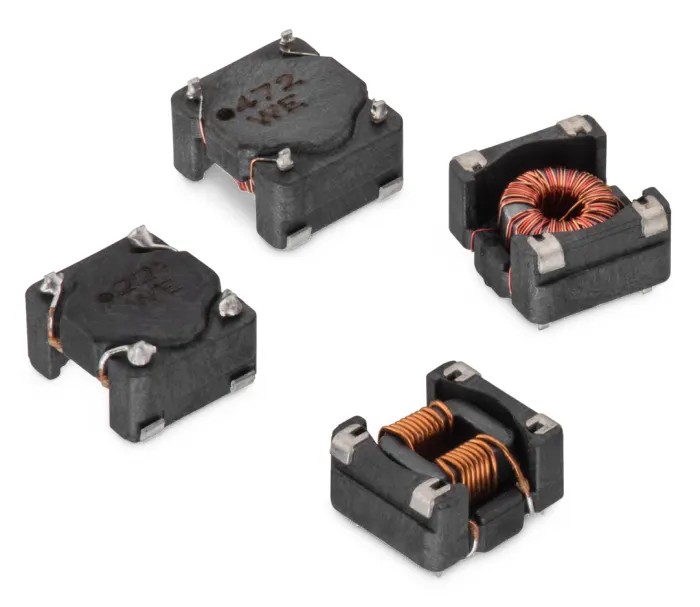

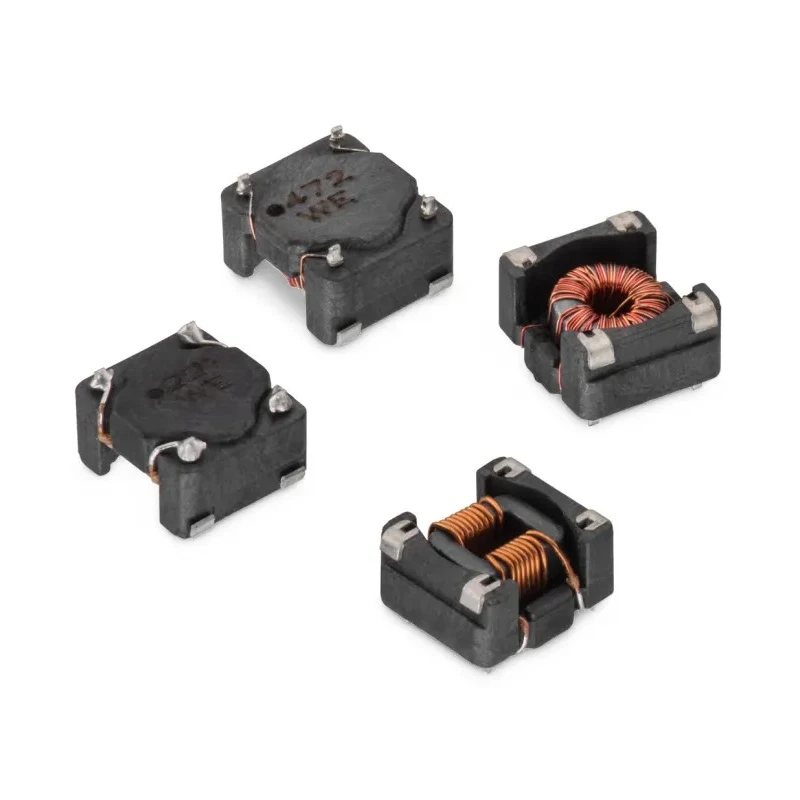

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core 250μH Sectional Winding ±40 % 2A 744272251

Wurth Elektronik 744272251 WE-SL5 Surface Mount Common Mode Line Filter features a 250μH inductance with a ferrite core and sectional winding construction. It is engineered for EMI suppression, effectively limiting high-frequency common-mode and differential noise in compact electronic assemblies. The filter operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for demanding industrial and automotive applications.

This component supports a maximum DC current of 2 amperes and has a low DC resistance of 35 milliohms to minimize insertion loss. Its inductance tolerance of ±40% provides tolerance for varied design margins. The device complies with the automotive standard AEC-Q200, ensuring high reliability in automotive control modules and communication lines.

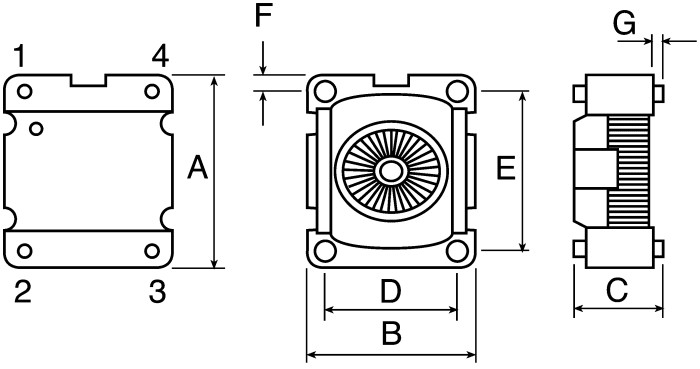

The compact surface mount design with dimensions 10mm length, 6.5mm height, and 8.7mm depth eases implementation on dense PCB layouts. It is supplied on tape and reel to facilitate high-speed, automated pick-and-place SMT manufacturing processes. The housing material meets UL-94 V-0 flame retardance standards for safety.

Common applications include noise reduction for automotive signal lines, EMI suppression in power-line modules, integration in compact power supplies for conducted emission control, and communication-line filtering in embedded systems. The sectional winding construction and ferrite core provide robust and stable performance under variable operating conditions.

The 250μH inductance effectively limits high-frequency common-mode noise. Supports a maximum DC current of 2 amperes for moderate power applications. Low DC resistance of 35 milliohms reduces insertion loss. Ferrite Core with sectional winding for effective EMI suppression.

Inductance tolerance of ±40% for design flexibility. Conforms to automotive standard AEC-Q200 for reliability. Wide operating temperature range from -40°C to 125°C. Meets RoHS and UL-94 V-0 flame retardance standards. Compact size supports high-density SMT layouts.

Supplied in tape and reel packaging for automated assembly. Explore more Wurth Elektronik Surface Mount Inductors and related electronic components at EnvMart to enhance your industrial, automotive, and commercial electronic designs.
