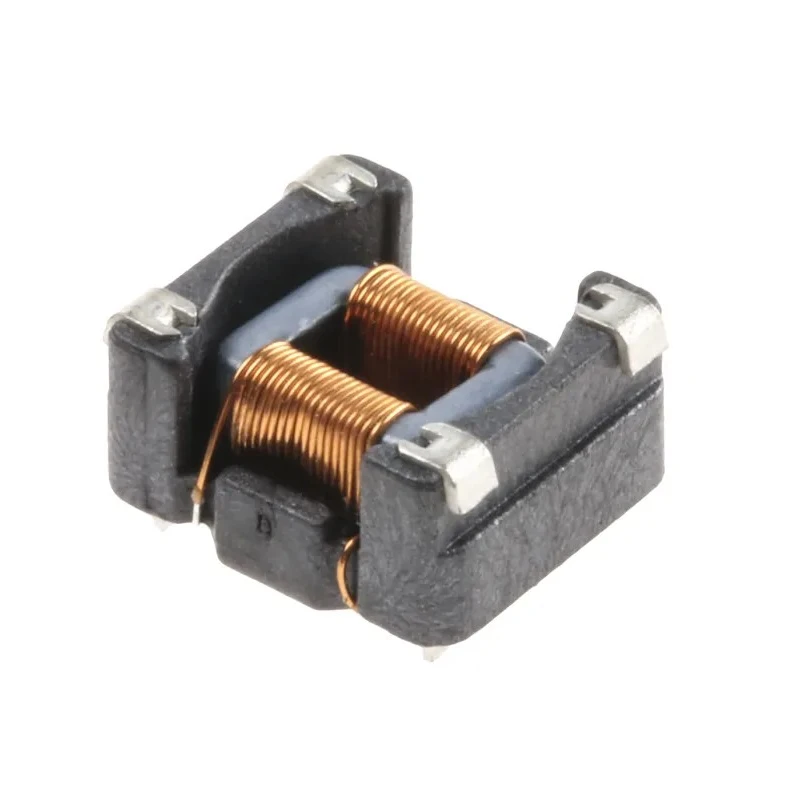

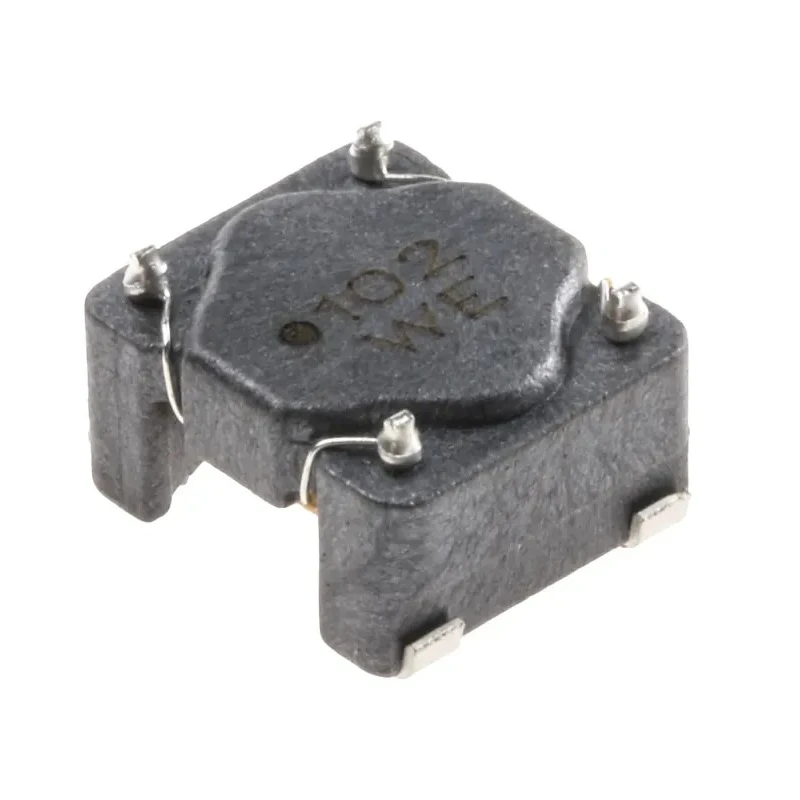

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core 1 mH ±40% 950 mA 744272102
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.5mm |
| Length | 10mm |
| Depth | 8.7mm |
| Packaging | Tape & Reel |
| Series | WE-SL5 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, Firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | UL 94 V0 |
| Maximum DC Current | 950mA |
| Maximum DC Resistance | 180mΩ |
| Inductance Tolerance | ±40 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Sectional Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact surface mount design measuring 10mm length, 6.5mm height, and 8.7mm depth.
- Features a ferrite core with sectional winding construction for effective noise suppression.
- Meets automotive standard AEC-Q200 for reliable performance in harsh environments.
- Operational temperature range from -40°C to 125°C ensures durability.
- Low maximum DC resistance of 180mΩ reduces power loss.
- UL 94 V0 rated housing ensures flame retardancy and safety compliance.
- Maximum self-resonant frequency of 100kHz suitable for various electronic applications.
- Termination style is surface mount, ideal for automated PCB assembly.
Product Description
Wurth Elektronik 744272102 Surface Mount Common Mode Line Filter is engineered with a ferrite core and sectional winding, delivering 1 mH inductance and a ±40% tolerance for efficient noise suppression.
This compact filter measures 10mm in length, 6.5mm in height, and 8.7mm in depth, making it suitable for space-constrained PCB designs and automated mounting processes via its surface mount termination.
Designed to operate reliably within a temperature range from -40°C to 125°C and tested to meet automotive standard AEC-Q200, it ensures high performance under harsh conditions prevalent in automotive and industrial electronics.
The device exhibits a maximum DC resistance of 180mΩ, minimizing power loss and enhancing circuit efficiency. The UL 94 V0 flame retardant housing further ensures safety and compliance with industry standards.
Its maximum self-resonant frequency of 100kHz and a maximum DC current rating of 950 mA accommodate various filtering needs, especially for CAN, USB, Firewire, data, and power line applications.
Compact surface mount design measuring 10mm length, 6.5mm height, and 8.7mm depth. Ferrite Core with sectional winding construction for superior noise reduction. Complies with automotive standard AEC-Q200 for durability.
Wide operating temperature range from -40°C to 125°C. Low maximum DC resistance of 180mΩ to reduce power dissipation. UL 94 V0 rated housing for enhanced flame retardancy. Maximum self-resonant frequency of 100kHz for effective filtering.
Surface mount termination style for easy PCB integration. Ideal for CAN, USB, Firewire, data, and power line filtering.
This common mode choke from Wurth Elektronik is well suited for industrial, automotive, and electrical applications that require robust noise filtering to enhance signal integrity and reduce electromagnetic interference.
Explore similar surface mount inductors and filters in the Electronics Components section at EnvMart for comprehensive industrial and commercial supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 mH with a tolerance of ±40%.
It has a maximum DC current rating of 950 mA, making it suitable for various applications.
This common mode line filter measures 10mm in length, 6.5mm in height, and 8.7mm in depth.
The maximum operating temperature is 125°C, allowing for reliable performance in high-temperature environments.
It features a surface mount termination style, which is ideal for automated PCB assembly.
The maximum self-resonant frequency is 100 kHz, suitable for various electronic applications.
This model complies with the automotive standard AEC-Q200, ensuring its reliability in automotive applications.
It is constructed with a ferrite core and features sectional winding for effective noise suppression.
The maximum DC resistance is 180 mΩ, which helps to reduce power loss.
This unit supports interfaces such as USB, Firewire, data lines, and power lines.
It is packaged in a tape and reel format, facilitating easy handling and assembly.
It is suitable for applications requiring robust noise filtering, particularly in automotive and industrial electronics.
