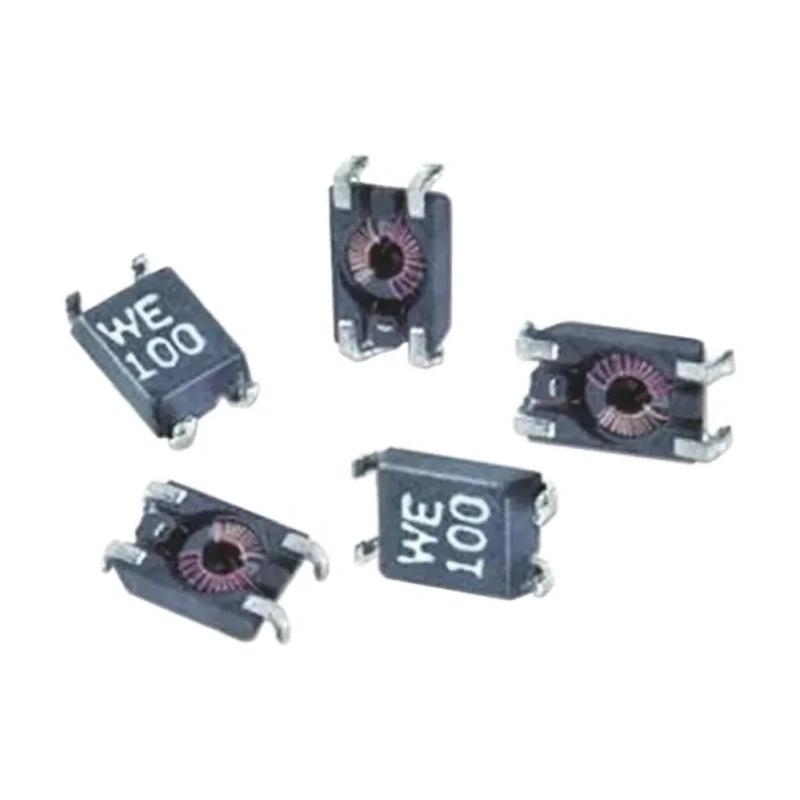

Wurth Elektronik WE-SL1 Surface Mount Common Mode Line Filter with Ferrite Core 330μH Sectional Winding ±50 % 300mA 744212331
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.65mm |
| Length | 6.5mm |
| Depth | 3.6mm |
| Packaging | Tape & Reel |
| Series | WE-SL1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | UL 94 V-0 |
| Maximum DC Current | 300mA |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Sectional Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- The filter has a compact 6.5mm length and 3.6mm depth suitable for surface mounting.
- Constructed with a ferrite core ensuring high performance at frequencies up to 100kHz.
- It complies with automotive standard AEC-Q200 and UL 94 V-0 for quality and safety assurance.
- Designed with a sectional winding construction to minimize stray and leakage inductance.
- Rated for operating temperatures from -40°C to 105°C, enabling use in harsh environments.
- Packaging is tape and reel for efficient automated PCB assembly.
- Supports applications including CAN, USB, firewire, data, and power lines requiring noise suppression.
Product Description
Wurth Elektronik 744212331 is a Surface Mount Common Mode Line Filter featuring a ferrite core with an inductance of 330μH and a sectional winding design offering ±50 % tolerance. This compact filter operates at a maximum DC current of 300mA and is suitable for surface mount installation with dimensions of 6.5mm length, 3.6mm depth, and 1.65mm height.
Constructed from a ferrite core material, it achieves effective noise attenuation up to a self-resonant frequency of 100kHz, making it ideal for automotive, industrial, and communication system applications. The device is certified to meet automotive standard AEC-Q200 and carries safety approval UL 94 V-0, ensuring robust reliability and flame retardance.
The sectional winding construction minimizes stray and leakage inductance, enhancing signal integrity on sensitive lines. It supports use with various interfaces such as CAN, USB, firewire, and power lines, providing effective common mode noise filtering for data and power signals. Rated for operation within a temperature range of -40°C to 105°C, this component is engineered for durability in demanding environments.
Packaging in tape and reel format facilitates automated insertion and assembly in high-volume production, improving manufacturing efficiency. Wurth Elektronik's WE-SL1 series is recognized for its compact design and performance in surface mount inductors applied in electronics, industrial, and automotive sectors.
The filter has a compact 6.5mm length and 3.6mm depth suitable for surface mounting. Constructed with a Ferrite Core ensuring high performance at frequencies up to 100kHz. It complies with automotive standard AEC-Q200 and UL 94 V-0 for quality and safety assurance.
Designed with a sectional winding construction to minimize stray and leakage inductance. Rated for operating temperatures from -40°C to 105°C, enabling use in harsh environments. Packaging is tape and reel for efficient automated PCB assembly.
Supports applications including CAN, USB, firewire, data, and power lines requiring noise suppression.
Explore more Wurth Elektronik surface mount inductors and common mode filters at EnvMart for reliable electronics components suited for diverse industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 330μH with a tolerance of ±50%.
This filter has dimensions of 6.5mm in length, 3.6mm in depth, and 1.65mm in height.
The maximum DC current rating for this unit is 300mA.
It is rated for operation in temperatures ranging from -40°C to 105°C.
This model features a sectional winding construction, which helps minimize stray and leakage inductance.
It complies with automotive standard AEC-Q200 and has UL 94 V-0 safety approval.
The maximum self-resonant frequency is 100kHz.
The filter is packaged in tape and reel format for efficient automated PCB assembly.
It supports various interfaces including USB, firewire, data, and power lines.
The core material of this common mode line filter is ferrite.
The sectional winding construction helps to minimize stray and leakage inductance, enhancing signal integrity.
This model is suitable for applications requiring noise suppression in CAN, USB, firewire, data, and power lines.
