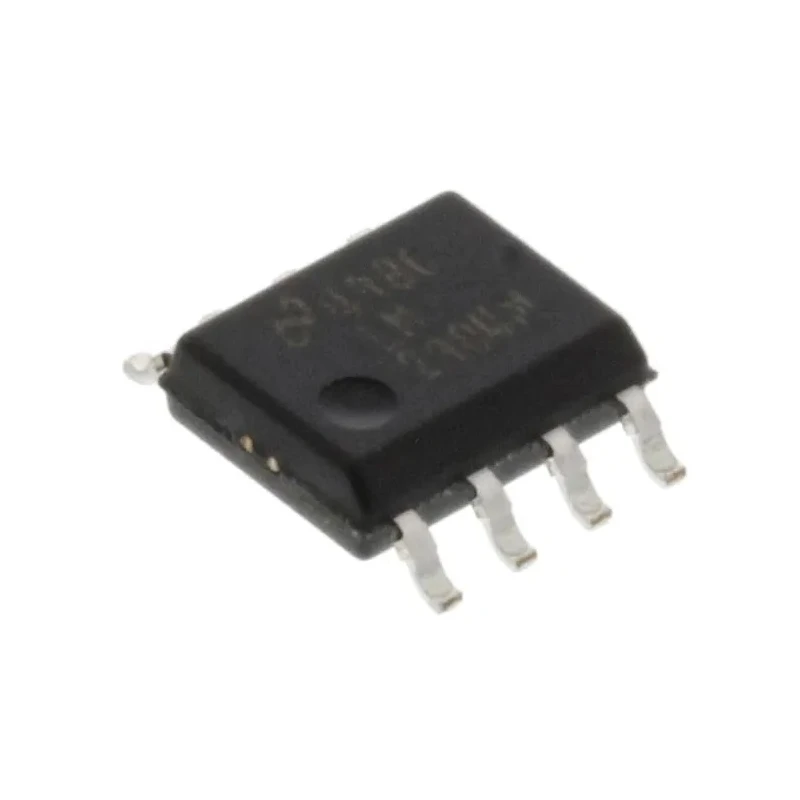

Texas Instruments Operational Amplifier 1 MHz 26V 8-Pin SOIC Dual Channel LM2904M/NOPB

Texas Instruments LM2904M/NOPB is a general purpose operational amplifier designed with a dual channel configuration and an 8-pin SOIC surface mount package. It operates at a gain bandwidth product of 1 MHz, making it well suited for applications requiring moderate frequency amplification in industrial, electronic design, and control systems.

This amplifier supports a wide supply voltage range from 5 V to 26 V, allowing flexibility in powering from different systems. The low input bias current of 500 nA and input offset voltage of 10 mV ensure high precision and minimal signal distortion.

The compact size with dimensions 4.9 mm in length, 3.9 mm in width, and 1.45 mm in height supports dense PCB layouts. The device withstands a wide operating temperature range from -40°C to 85°C, enabling use in industrial and automotive environments that demand robust temperature tolerance.

Its moderate slew rate of 0.1 V/μs and output current capability of 40 mA suit various signal conditioning tasks in electronic circuits. Designed for surface mount technology (SMT), this IC reduces assembly time and improves reliability.

Dual channels allow versatile signal amplification options. High gain bandwidth product supports audio and instrumentation frequencies. Wide voltage operation adapts to many power conditions. Low input bias and offset current promote accurate signal processing.

Robust temperature ratings ensure durability in harsh conditions. Compact SOIC footprint facilitates modern PCB design.

This operational amplifier is ideal for use in industrial automation, laboratory measurement systems, consumer electronics, and embedded system designs. Its Texas Instruments pedigree guarantees reliable performance and extensive documentation support.
