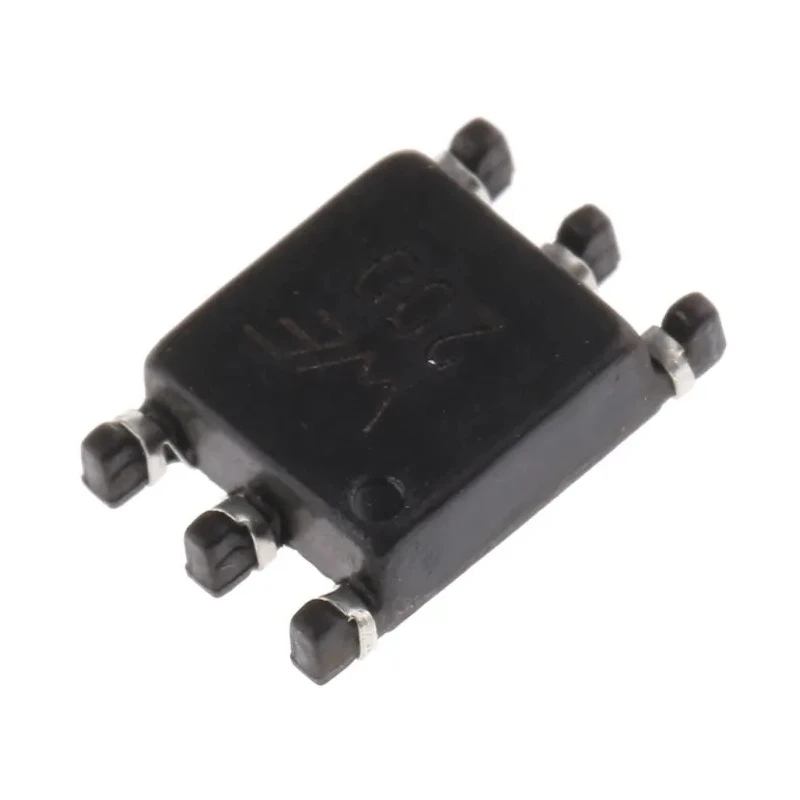

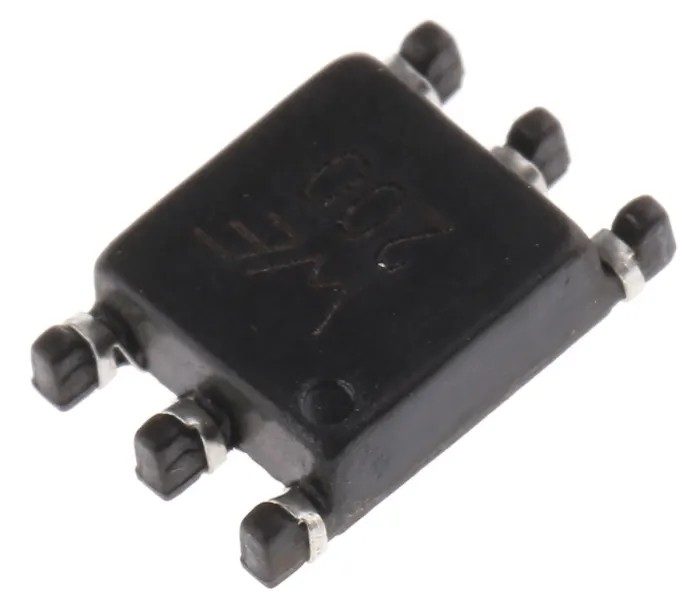

Wurth Elektronik WE-SL3 Surface Mount Common Mode Line Filter with Ferrite Core, 20 μH inductance, -30 to 50% 744253200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.5mm |
| Length | 9.2mm |
| Depth | 6.6mm |
| Packaging | Tape & Reel |
| Series | WE-SL3 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 20μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 500mA |
| Maximum DC Resistance | 160mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance tolerance ranges from -30 to 50 percent allowing flexibility.
- Rated for a maximum DC current of 500 mA suitable for moderate current applications.

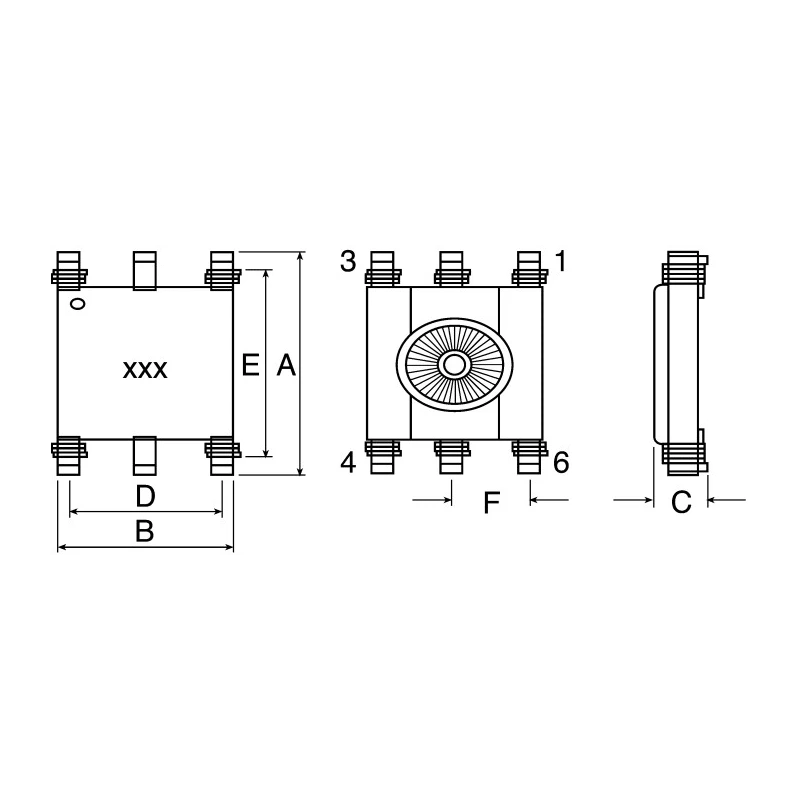

- Housing dimensions include a length of 9.2 mm, height of 2.5 mm, and depth of 6.6 mm.
- Core material uses high-quality ferrite, enhancing noise suppression in power and data lines.
- This component is compliant with AEC-Q200 automotive standard ensuring reliability in automotive environments.
- The wirewound inductor construction ensures robustness and consistent performance.
- Designed for surface mount termination style to ease PCB assembly.
- Operating temperature range from -40°C to 125°C, suitable for harsh environments.
Product Description
Wurth Elektronik 744253200 is a Surface Mount Common Mode Line Filter featuring a ferrite core with an inductance value of 20 μH and tolerance of -30 to 50 percent. It supports a maximum DC current of 500 mA, making it suitable for industrial, automotive, and electronic applications where electromagnetic interference suppression is critical.

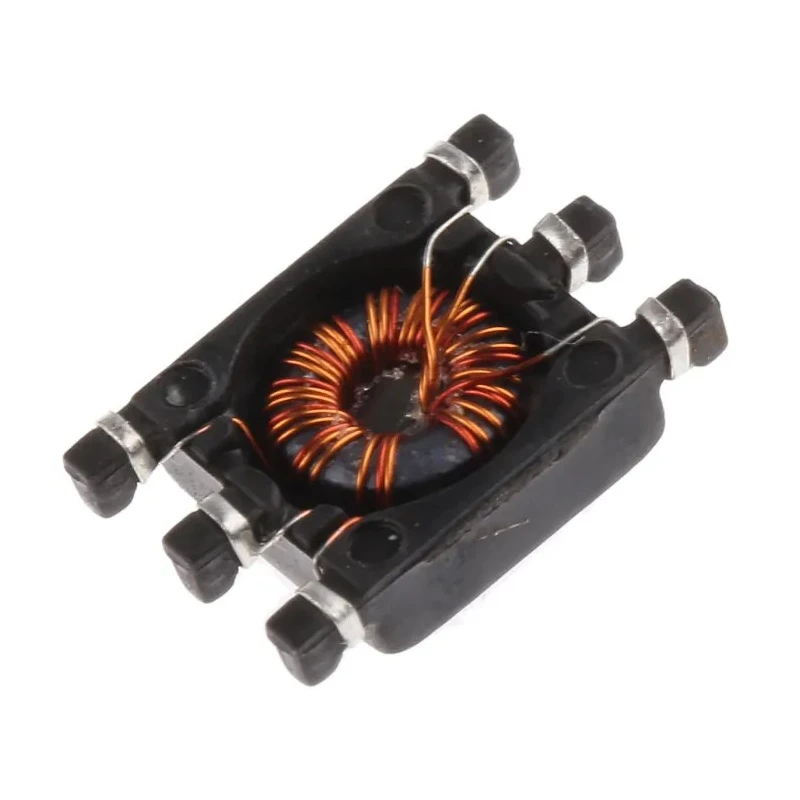

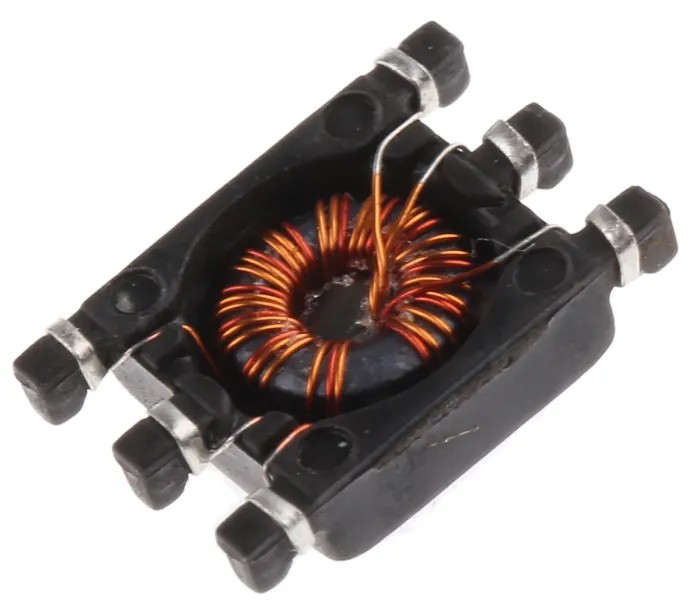

This surface mount component has a tape and reel packaging style, promoting efficient automated PCB assembly processes. The compact housing measures 9.2 mm in length, 2.5 mm in height, and 6.6 mm in depth. The wirewound inductor construction with Ferrite Core material ensures low stray and leakage inductance for optimal noise reduction performance.
The product meets stringent quality standards, including AEC-Q200 for automotive reliability and RoHS compliance for environmental safety. It operates effectively across a wide temperature range from -40°C to 125°C and has a maximum DC resistance of 160 mΩ, contributing to energy efficiency.
Primary applications include high-speed data buses and power lines such as CAN bus, USB, and firewire interfaces, where it suppresses common mode noise and improves signal integrity. The component's maximum self-resonant frequency is 100 kHz, optimizing filtering performance at relevant frequencies.
Inductance tolerance of -30 to 50 percent allows design flexibility. Surface mount termination style supports modern manufacturing techniques. Designed for automotive and industrial environmental conditions. Low DC resistance and high temperature operation enhance reliability.
Tape and reel packaging facilitates mass production. Applications include electromagnetic interference suppression on data and power lines.
Wurth Elektronik's WE-SL3 line filters provide dependable EMI filtering solutions for electronics manufacturing, automotive systems, and industrial equipment. Explore EnvMart’s extensive electronics components collection for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode line filter is 20 μH, with a tolerance ranging from -30 to 50 percent.
It supports a maximum DC current of 500 mA, making it suitable for moderate current applications.
The housing dimensions are 9.2 mm in length, 2.5 mm in height, and 6.6 mm in depth.
The operating temperature range is from -40°C to 125°C, suitable for harsh environments.
This component complies with the AEC-Q200 automotive standard and RoHS for environmental safety.
The maximum self-resonant frequency is 100 kHz, optimizing its filtering performance at relevant frequencies.
It is compatible with USB, firewire, and other data and power lines, making it versatile for various applications.
This model features a surface mount termination style, facilitating modern PCB assembly processes.
It utilizes a wirewound construction, which contributes to its robustness and consistent performance.
The maximum DC resistance is 160 mΩ, contributing to energy efficiency in applications.
It is primarily used for electromagnetic interference suppression on high-speed data buses and power lines, such as CAN bus and USB.
It comes in tape and reel packaging, which promotes efficient automated PCB assembly.
