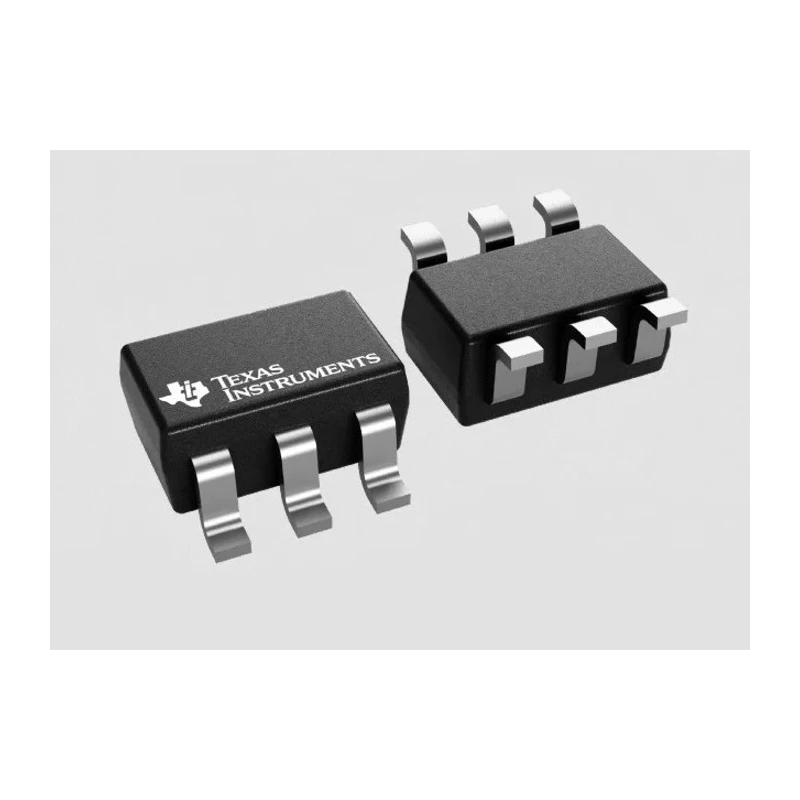

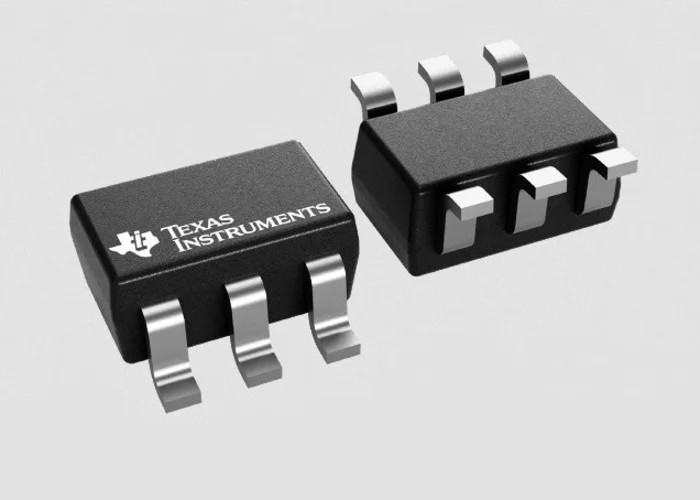

Texas Instruments 2-Channel Schmitt Trigger Input CMOS Buffer 6-Pin SC-70 SN74LVC2G17DCKR

Texas Instruments SN74LVC2G17DCKR is a high-performance 2-channel Schmitt trigger input CMOS buffer IC designed for surface mount technology applications. It is housed in a compact 6-pin SC-70 package with physical dimensions of 2.15mm in length and 1.1mm in height, making it ideal for space-constrained printed circuit boards.

This buffer IC belongs to the LVC logic family and functions with a minimum supply voltage of 1.65V and a maximum of 5.5V, offering great operational flexibility for various electronic systems. Its Schmitt trigger inputs ensure improved noise immunity and signal integrity during operation.

The device supports a broad operating temperature range from -65°C to 150°C, suitable for industrial and commercial electronic applications. It provides CMOS type outputs with maximum output current ratings of -32mA at high level and 32mA at low level, enabling reliable driving capability for downstream circuitry.

The package is RoHS compliant, meeting the environmental regulations necessary for modern electronic components. The device is manufactured in China with strict quality control. Typical applications include buffer functions in digital logic circuits, signal conditioning in industrial, instrumentation, telecommunications, and computing hardware.

With the SN74LVC2G17DCKR, engineers can achieve efficient, compact, and reliable buffering solutions in advanced electronic designs. The logic IC belongs to the LVC family, providing stable buffer functionality. Includes two channels with Schmitt trigger input for noise immunity.

Operates with a supply voltage range from 1.65V to 5.5V. Designed for surface mount applications with CMOS output type. Operates reliably in temperatures from -65°C to 150°C. Compact dimensions of 2.15mm length and 1.1mm height allow space-saving on PCB.

Pin count is 6, compatible with SC-70 package mounting. RoHS compliant ensuring environmental standards are met. Maximum output current ratings of -32mA (high level) and 32mA (low level). Country of origin is China. Explore more semiconductor logic ICs and buffers on EnvMart for industrial, laboratory, and commercial electronics projects.
