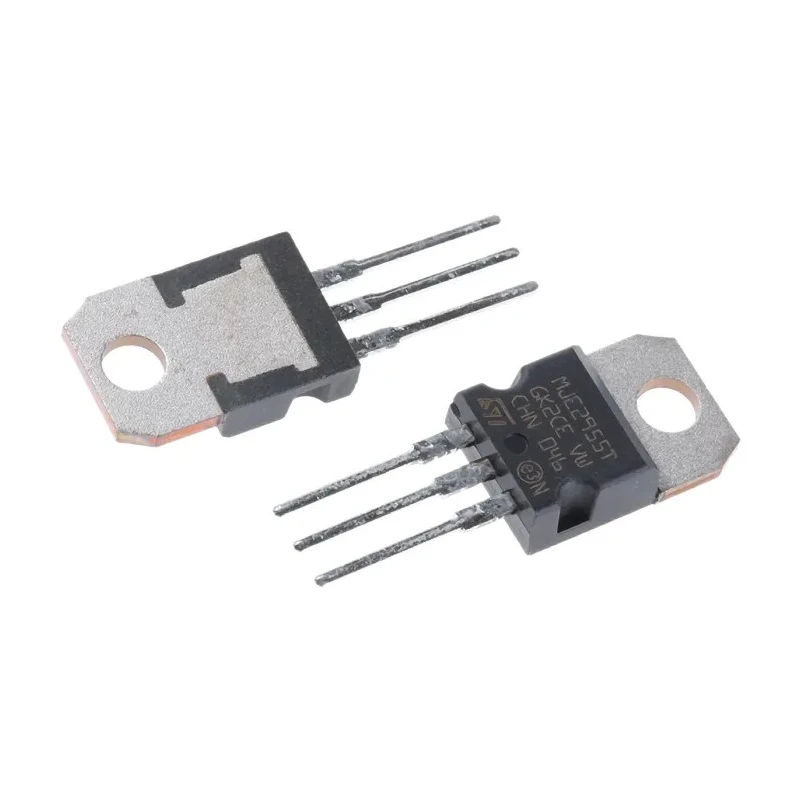

STMicroelectronics PNP Power Transistor 10 A, 60 V, 75 W TO-220 3-Pin MJE2955T

STMicroelectronics MJE2955T is a robust PNP power transistor ideal for high current and high voltage applications in industrial, electronic, and power management systems. Featuring a maximum continuous collector current of 10 A and collector-emitter voltage rating of 60 V, it is built to handle demanding operating conditions.

This transistor employs a TO-220 3-pin package designed for through-hole mounting, providing reliable mechanical and thermal stability. Its maximum power dissipation of 75 W allows it to dissipate substantial heat, making it suitable for power control and amplification roles.

The device operates efficiently over a wide temperature range from 0°C to 150°C, ensuring durability in industrial and automotive environments where temperature fluctuations are common. It offers a minimum DC current gain (hFE) of 5 and a maximum transition frequency (ft) of 2 MHz, enabling stable and responsive switching performance.

Dimensions are precisely 29.75 mm height, 10.4 mm length, and 4.6 mm width, optimizing it for space-constrained circuit designs requiring PNP transistor functionality. 10 A maximum collector current supports high current loads.

60 V collector-emitter voltage suitable for versatile power circuits. 75 W power dissipation for thermal robustness. TO-220 3-pin package ensures easy installation and thermal management. Reliable operation from 0°C to 150°C supports diverse environments.

Single transistor configuration for straightforward applications. Maximum collector-base voltage of 70 V enhances device reliability. Minimum DC current gain of 5 enables effective control. Maximum emitter-base voltage of 5 V prevents breakdown.

Maximum transition frequency of 2 MHz for general purpose amplification.

This STMicroelectronics MJE2955T transistor is ideal for use in power amplification, power supply regulation, audio amplifier stages, and automotive electronics. The product combines electrical robustness with practical packaging, making it a preferred choice for engineers across semiconductor applications.
