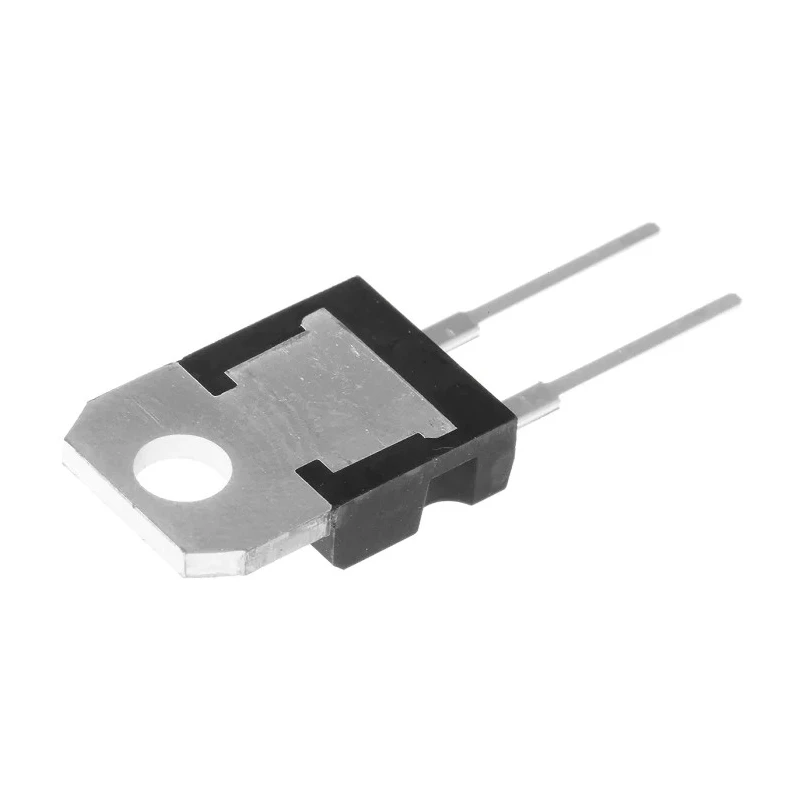

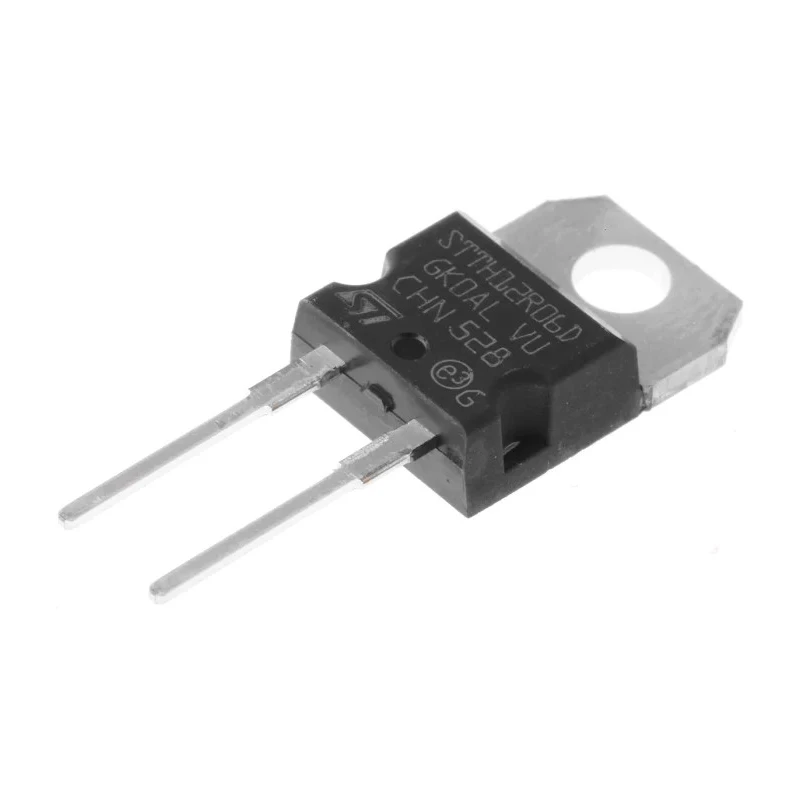

STMicroelectronics 600 V 12 A Switching Diode 2-Pin TO-220AC STTH12R06D
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH12R06D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH12R06 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 45μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 2.9V |
| Peak Reverse Recovery Time trr | 25ns |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
| STMicroelectronics Diode, STTH12R06FPBrand | STMicroelectronics |
Key Features
- Single diode configuration with 2 pins for through-hole mounting.
- Maximum continuous forward current is 12 amperes.
- Peak reverse repetitive voltage rating of 600 volts.
- Maximum forward voltage drop of 2.9 volts for efficient switching.
- Peak reverse recovery time of 25 nanoseconds for fast switching applications.
- Operating temperature ranges from -65°C to 175°C.
- Compliant with RoHS standards and manufactured in China.
Product Description
STMicroelectronics STTH12R06D is a robust switching diode designed for high power electronic applications. It comes in a TO-220AC package suitable for through-hole mounting, featuring two pins and a single diode configuration. The component is optimized for a maximum continuous forward current of 12A and can withstand peak reverse repetitive voltages up to 600V.
This diode offers a low forward voltage drop of 2.9V, enhancing efficiency in switching circuits. The fast recovery time of 25ns supports high-speed switching requirements, making this diode ideal for industrial, power management, and electronic manufacturing uses.
Its wide operating temperature range of -65°C to 175°C ensures reliable operation under harsh environmental conditions. Physically, it has compact dimensions with a height of 9.3mm, length of 10.4mm, and width of 4.6mm, allowing for easy integration on circuit boards.
The STTH12R06D meets RoHS compliance standards indicating its environmentally friendly manufacturing process. With a China country of origin, this diode is a dependable component for enhancing power circuit efficiency and reliability in laboratory and industrial electronics projects.
Single diode configuration with 2 pins for through-hole mounting. Maximum continuous forward current is 12 amperes. Peak reverse repetitive voltage rating of 600 volts. Maximum forward voltage drop of 2.9 volts for efficient switching.
Peak reverse recovery time of 25 nanoseconds for fast switching applications. Operating temperature ranges from -65°C to 175°C. Compact TO-220AC package dimensions: 10.4 mm length, 9.3 mm height, and 4.6 mm width. Compliant with RoHS standards and manufactured in China.
Ideal for use in power electronics, industrial automation systems, and laboratory equipment. Explore more semiconductor diodes and switching components in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 12 amperes.
It has a peak reverse repetitive voltage rating of 600 volts.
The maximum forward voltage drop is 2.9 volts, which enhances efficiency in switching applications.
The peak reverse recovery time is 25 nanoseconds, suitable for fast switching applications.
The dimensions are 10.4 mm in length, 9.3 mm in height, and 4.6 mm in width.
The operating temperature ranges from -65°C to 175°C, allowing for reliable operation in harsh conditions.
This model is designed for through-hole mounting with a single diode configuration and 2 pins.
Yes, it is compliant with RoHS standards, indicating an environmentally friendly manufacturing process.
It is suitable for use in power electronics, industrial automation systems, and laboratory equipment.
The peak non-repetitive forward surge current is rated at 100A.
The country of origin for this model is China.
This diode is classified as a switching rectifier.
