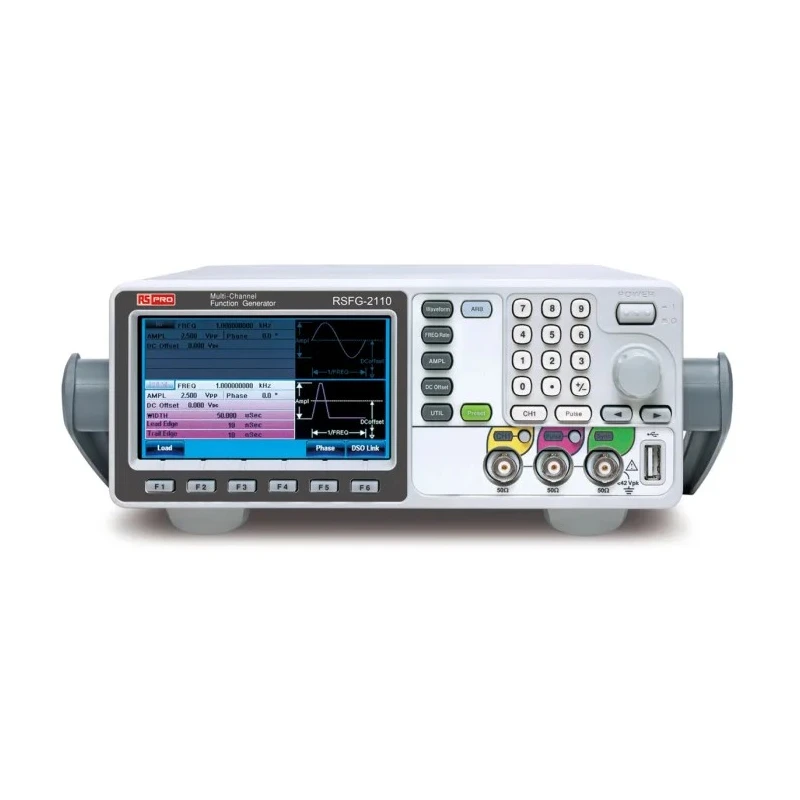

RS PRO Professional Function Generator 25 MHz Sinewave, Square, Triangle, 5 Channels RSFG-2110
Specifications
| Country of Origin | China |
|---|---|
| Display | 4.3 Inch TFT Colour Display |
| Brand | RS PRO |
| Height | 107mm |
| Length | 266mm |
| Model | RSFG-2110 |
| Gross Weight | 2.5kg |
| Width | 293mm |
| Output Impedance | 50Ω |
| Maximum Operating Temperature | 40°C |
| Input Impedance | 1kΩ |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB Host/USB Device/LAN (RSFG-22XX only) |
| Number Of Channels | 5 |
| Frequency Counter | 150MHz, 8 bit Frequency Resolution |
| Attenuation | 20 dB |
| Time Base Accuracy | ±20 ppm |
| Interface Type | LAN, USB |
| Standards/Approvals | CE, IEC |
| Maximum Frequency Range Sinewave | 25MHz |
| Maximum Frequency Range Square Pulse/Arbitrary Waveform | 25MHz |
| TTL Output Level | 4V Pk-Pk |
| - 2 Equivalent Performance Arbitrary Channels Frequency | 1 Hz ∼ 10/20/30/60MHz |
| - RF Channel Frequency (FG/ARB/MOD) | 160/320MHz |
| - Pulse Generator Frequency | 25MHz |
| True Point by Point Output Arbitrary Waveform Function | 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Points Memory Depth |
Key Features
- Supports sine, square, triangle, and arbitrary waveforms up to 25 MHz frequency.
- Equipped with 5 output channels for comprehensive signal generation.
- Includes FM modulation and built-in pulse generator with 25 MHz capability.
- Features a 4.3-inch TFT color display for easy user navigation.
- Interface options include LAN and USB for flexible connectivity.
- Complies with CE and IEC standards ensuring quality and safety.
- Robust design suitable for industrial, laboratory, and electronics testing applications.
- Operates reliably in ambient temperatures from 0°C to 40°C.
Product Description
RS PRO presents the RSFG-2110 function generator, designed for professional use in industrial, laboratory, electronics testing, and manufacturing environments. This advanced function generator supports a variety of waveform outputs including sine, square, triangle, and arbitrary waveforms with frequencies up to 25 MHz, making it suitable for a wide range of signal generation needs.
Featuring five output channels, the RSFG-2110 enables simultaneous multi-signal generation with high precision. It incorporates FM modulation capabilities and a built-in pulse generator operating at 25 MHz, allowing users to customize pulse width, duty cycle, and edge times effectively.
The device is equipped with a 4.3-inch TFT color display that provides clear visualization and user-friendly navigation for waveform editing and settings adjustments. Connectivity is versatile with LAN and USB interfaces to integrate easily into test setups and automated systems.
This Function Generator complies with CE and IEC standards, ensuring it meets international quality and safety benchmarks. Its robust construction and compact dimensions (266 mm × 293 mm × 107 mm) enable convenient placement on workbenches or integration in test rigs.
The RSFG-2110 operates reliably within temperature ranges of 0°C to 40°C and features an input impedance of 1 kΩ and output impedance of 50 Ω, optimizing signal quality. Weighing just 2.5 kg, the unit combines portability with professional-grade performance.
Ideal for use in industrial manufacturing, electronics design, research laboratories, and education, the RS PRO RSFG-2110 facilitates precise waveform generation and modulation required for various testing, development, and calibration tasks.
Supports sine, square, triangle, and arbitrary waveforms up to 25 MHz frequency. Equipped with 5 output channels for comprehensive signal generation. Includes FM modulation and built-in pulse generator with 25 MHz capability.
Features a 4.3-inch TFT color display for easy user navigation. Interface options include LAN and USB for flexible connectivity. Complies with CE and IEC standards ensuring quality and safety. Robust design suitable for industrial, laboratory, and electronics testing applications.
Compact dimensions: 266 mm length, 293 mm width, and 107 mm height. Operates reliably in ambient temperatures from 0°C to 40°C. Input impedance of 1 kΩ and output impedance of 50 Ω for signal integrity. Lightweight unit with 2.5 kg gross weight for portability.
Explore the RS PRO range for more professional testing instruments and enhance your test and measurement capabilities with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO RSFG-2110 function generator supports a maximum frequency output of 25 MHz for sinewave, square pulse, and arbitrary waveforms.
This unit is equipped with 5 output channels, allowing for simultaneous multi-signal generation.
It can generate sine, square, triangle, and arbitrary waveforms, making it versatile for various applications.
The dimensions of this function generator are 266 mm in length, 293 mm in width, and 107 mm in height.
The RSFG-2110 operates reliably in ambient temperatures from 0°C to 40°C.
It features USB and LAN interfaces for flexible connectivity options.
The input impedance is 1 kΩ and the output impedance is 50 Ω, which helps optimize signal quality.
It is equipped with a 4.3-inch TFT color display for clear visualization and user navigation.
The unit complies with CE and IEC standards, ensuring it meets international quality and safety benchmarks.
This function generator weighs 2.5 kg, making it lightweight and portable for various applications.
Yes, it includes a built-in pulse generator that operates at a frequency of 25 MHz.
The time base accuracy of the RSFG-2110 is ±20 ppm, ensuring precise timing for signal generation.
