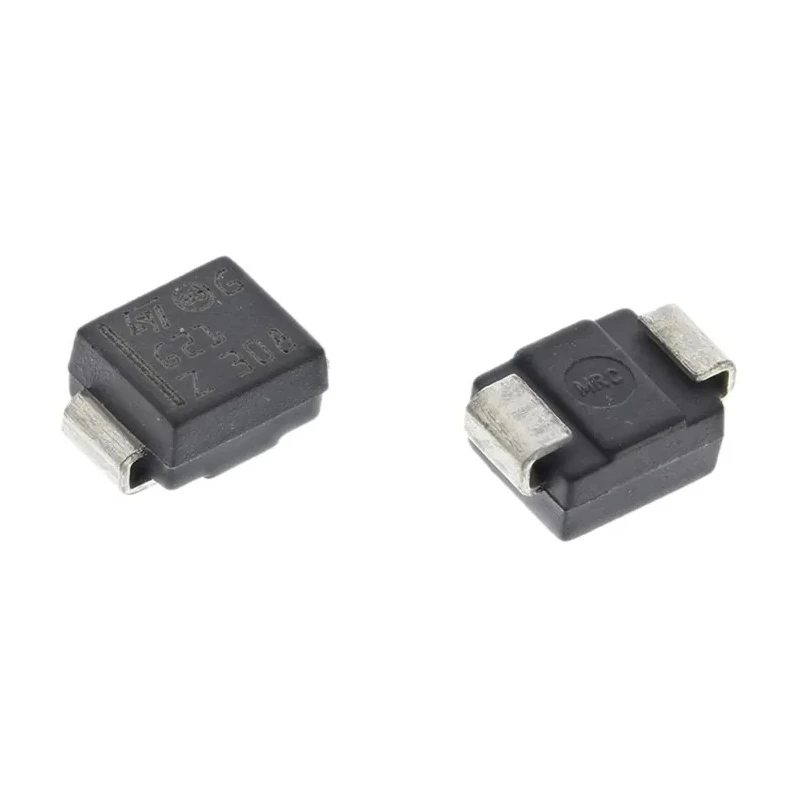

STMicroelectronics 100 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AA STPS2H100U

STMicroelectronics STPS2H100U Schottky barrier diode is a surface mount discrete semiconductor designed for efficient power rectification and switching applications. This device features a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 100 V, making it ideal for use in power management and protection circuits in industrial, automotive, and consumer electronics.

The diode is housed in a compact DO-214AA package with a 2-pin configuration, facilitating easy mounting on PCBs while ensuring low forward voltage drop of 0.65 V, which enhances energy efficiency and reduces heat dissipation in high-frequency applications. Its robust operating temperature range from -65°C to 175°C ensures reliable functionality under extreme thermal conditions.

Key features include a high peak non-repetitive forward surge current rating of 75 A, which protects against transient current spikes typical in power electronic circuits. The diode's physical dimensions are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, allowing judicious layout on space-constrained boards.

This Schottky diode is intended for use in power supplies, battery chargers, photovoltaic systems, and other industrial electronic devices where low forward voltage and fast switching characteristics are required. Its surface mount design is compatible with automated PCB assembly processes, improving manufacturing efficiency.

The product complies with regulatory RoHS standards, ensuring environmentally friendly manufacturing and end-of-life disposal. Its absence of automotive-specific approvals indicates suitability best for industrial and general electronic use rather than certified automotive systems.

Surface mount package suitable for high efficiency applications. Maximum continuous forward current of 2 A. Maximum peak reverse repetitive voltage of 100 V ensuring reliable blocking capability. Peak forward surge current rating of 75 A for transient tolerance.

Low maximum forward voltage drop of 0.65 V improves efficiency. Operating temperature range from -65°C to 175°C for harsh environments. Compact dimensions: length 4.6 mm, width 3.95 mm, height 2.45 mm. Single diode configuration with 2 pins for straightforward PCB mounting.

Designed for power rectification and freewheeling in industrial and electronic circuits. Compliance with RoHS standards supports environmental regulation requirements. Explore more semiconductor and electronic components at EnvMart for your industrial and laboratory needs.
