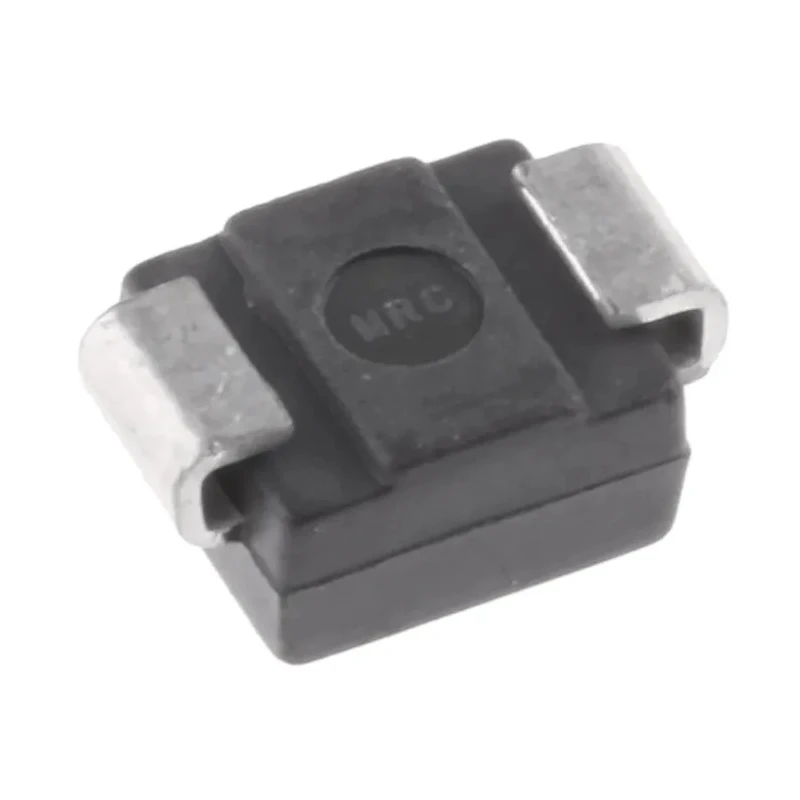

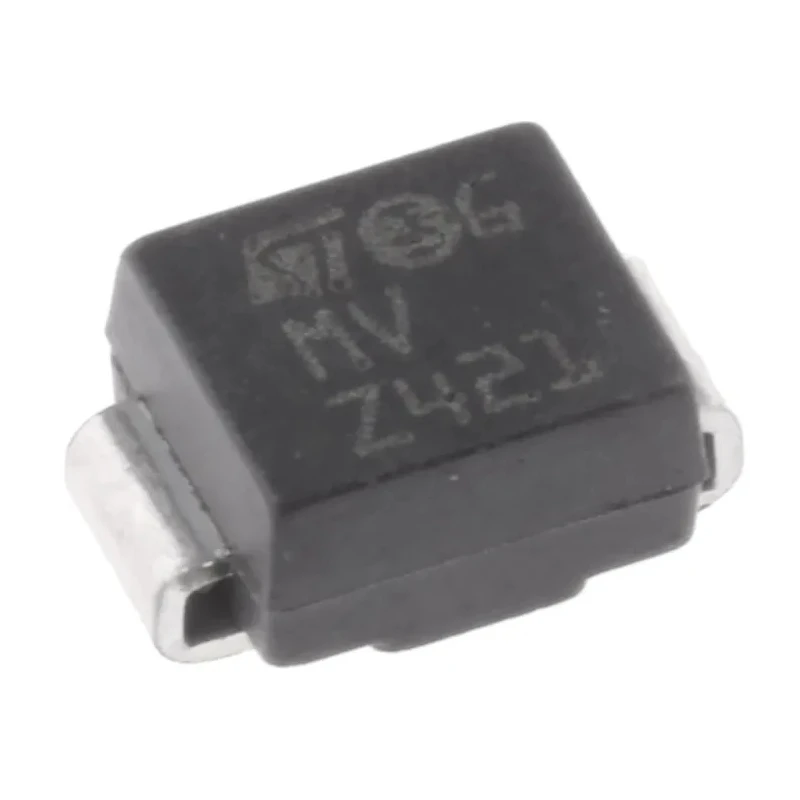

STMicroelectronics 1-Element Bi-Directional TVS Diode 600 W, Surface Mount DO-214 SM6T36CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T36CA |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 64.3V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 34.2V |
| Maximum Reverse Stand-off Voltage Vwm | 30.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 62A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- Designed for transient voltage suppression in bi-directional mode applications.
- Surface mount DO-214 package ensures compact PCB mounting and efficient space usage.
- Minimum breakdown voltage of 34.2 V with a maximum reverse stand-off voltage of 30.8 V.
- Peak pulse power dissipation rating of 600 W with a maximum peak pulse current of 62 A.
- Clamping voltage of 64.3 V protects circuits from voltage spikes effectively.
- Wide operating temperature range from -55°C to 150°C for reliable performance in harsh conditions.
- Low maximum reverse leakage current of 200 nA ensures minimal power loss.
- Typical dimensions include length 4.6 mm, width 3.95 mm, and height 2.45 mm.
Product Description
STMicroelectronics SM6T36CA is a single-element bi-directional TVS (Transient Voltage Suppressor) diode designed for protection of sensitive electronic equipment against voltage transients such as electrostatic discharge and inductive load switching.
This device is housed in a compact surface mount DO-214 package, making it excellent for high-density PCB layouts. It offers a peak pulse power dissipation of 600 W, making it suitable for robust industrial and electronic circuit protection.
With a minimum breakdown voltage of 34.2 V and maximum reverse stand-off voltage of 30.8 V, this diode effectively clamps voltage transients to a safe level with a clamping voltage of 64.3 V. It features a maximum peak pulse current of 62 A and exceptionally low leakage current of 200 nA, ensuring minimal impact on normal circuit operation.
The device operates reliably in temperature conditions ranging from -55°C up to 150°C, making it versatile for various industrial environments. Its compact dimensions - 4.6 mm length, 3.95 mm width, and 2.45 mm height - allow efficient integration into modern electronic assemblies.
The SM6T36CA belongs to the SM6T series from STMicroelectronics, known for transient voltage suppression in power and signal line applications. Its robust design and high peak power dissipation ratings suit applications in power supplies, telecommunications, and industrial electronics.
Designed for bi-directional transient voltage suppression in compact surface mount packages. High peak pulse power dissipation rating protects against voltage spikes up to 600 W. Wide operating temperature range supports harsh environmental conditions.
Extremely low reverse leakage current reduces power loss and improves efficiency. Compact DO-214 surface mount package aids high-density PCB layouts. Single-element design simplifies circuit protection requirements.
This 1-element bi-directional TVS Diode is essential for safeguarding electronics from transient voltage surges in industrial, telecommunications, and consumer electronic applications. Explore STMicroelectronics components in the Electronics & Electricals category at EnvMart for reliable semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 600 W.
The clamping voltage for the SM6T36CA is 64.3 V.
The maximum reverse stand-off voltage for this diode is 30.8 V.
It operates reliably within a temperature range of -55°C to 150°C.
This model features a single-element design, meaning it has 1 element per chip.
The dimensions of this diode are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The maximum peak pulse current is rated at 62 A.
The minimum breakdown voltage for this diode is 34.2 V.
It is housed in a compact surface mount DO-214 package.
The maximum reverse leakage current is 200 nA.
This diode has a pin count of 2.
It is suitable for protecting sensitive electronic equipment against voltage transients in power supplies, telecommunications, and industrial electronics.
