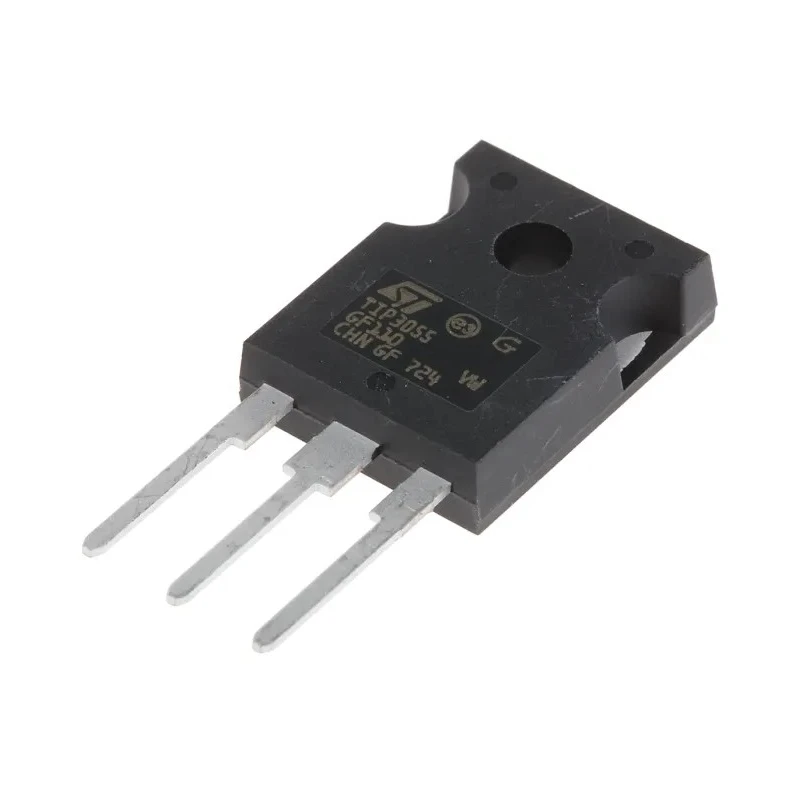

STMicroelectronics NPN Power Transistor 15A, 60V, 90W, 3-Pin TO-247 TIP3055

STMicroelectronics TIP3055 is a high-power NPN bipolar junction transistor designed for efficient switching and amplification in power electronic circuits. It supports a maximum DC collector current of 15A and a collector-emitter voltage of 60V, making it suitable for demanding applications.

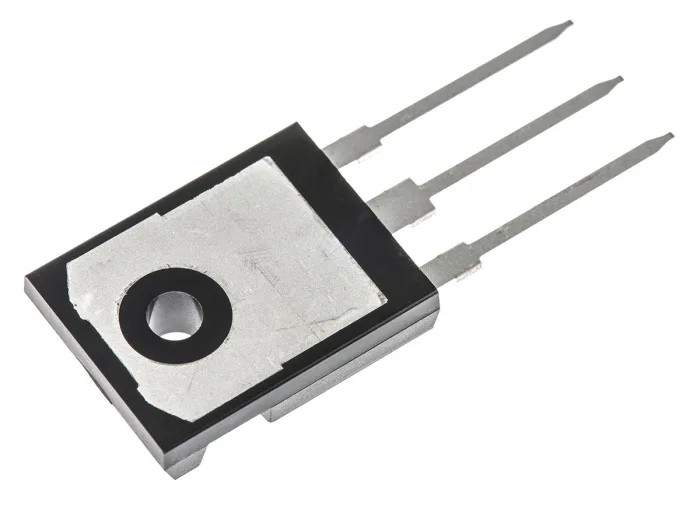

The device is housed in a TO-247 package, featuring a 3-pin configuration optimized for through-hole mounting on printed circuit boards. Its maximum power dissipation of 90W enables operation under high power loads without overheating.

This transistor has a maximum collector-base voltage rating of 100V and a minimum DC current gain of 5, ensuring reliable signal amplification. It operates safely within a wide temperature range from 0°C to 150°C, accommodating industrial temperature conditions.

With a maximum transition frequency of 3MHz, the TIP3055 transistor is well-suited for medium-frequency switching applications in power management and control circuits. The compact physical dimensions (15.75mm length, 5.15mm width, 34.95mm height) allow integration into space-sensitive designs.

This transistor supports a maximum power dissipation of 90W. Configured as a single NPN transistor with 3 pins for through-hole mounting. Maximum collector-base voltage rating of 100V ensures high reliability. Operates efficiently within 0° to 150°C temperature range.

Minimum DC current gain (hFE) of 5 allows for robust amplification. The device features a maximum transition frequency of 3MHz for switching applications. Compact dimensions of 15.75mm length, 5.15mm width, and 34.95mm height suit space-constrained designs.

Compatible with industrial, power control, and switching applications.

These characteristics make the TIP3055 an ideal choice for high-power amplifiers, power regulators, and industrial electronic control applications. Reliable and robust, it is widely used in electronics manufacturing and repair environments.
