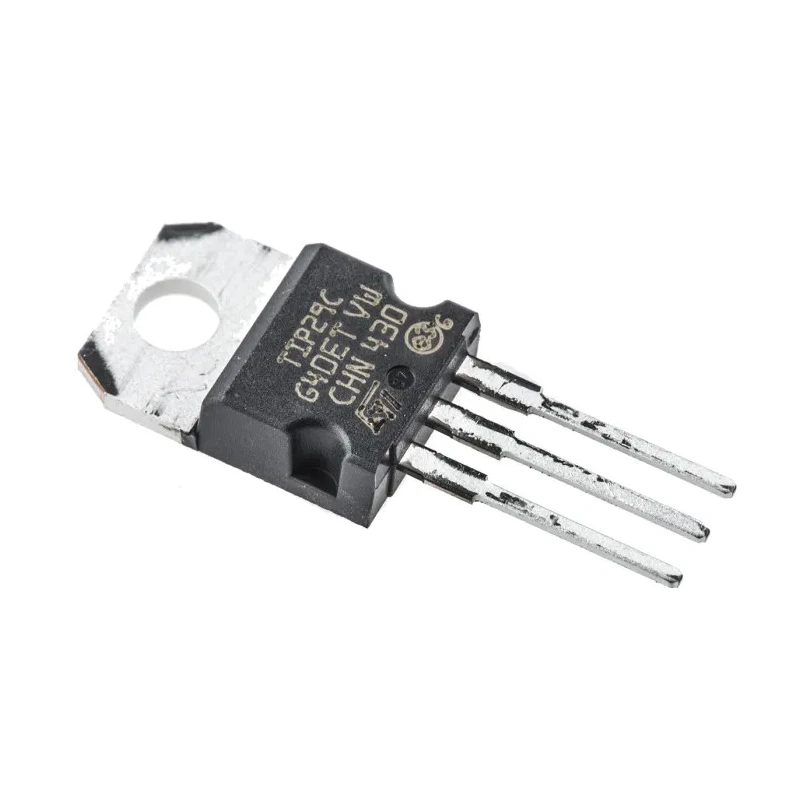

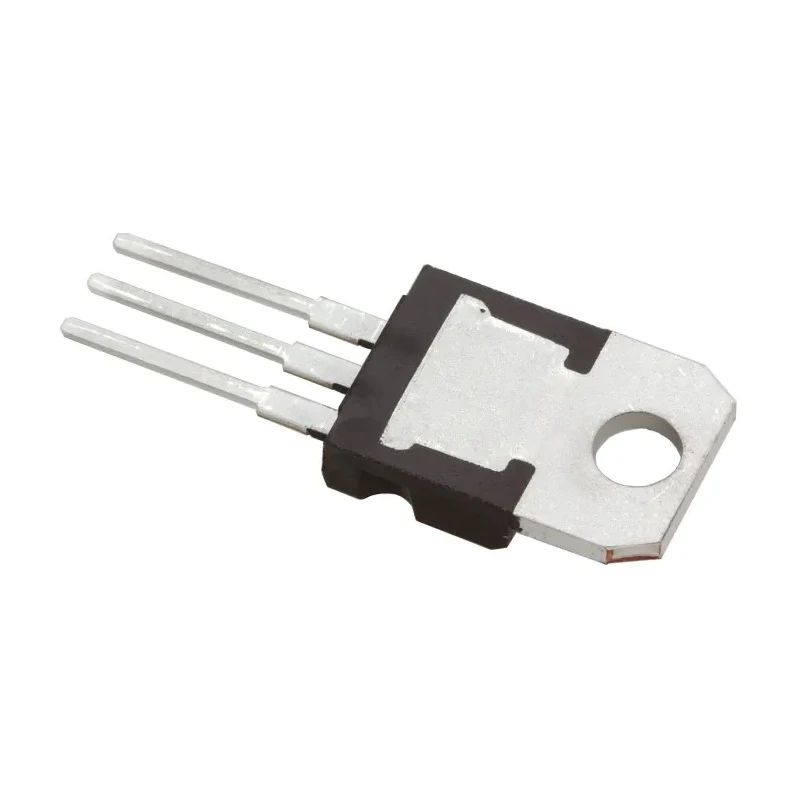

STMicroelectronics NPN Power Transistor 1 A, 100 V, 3-Pin TO-220 TIP29C

STMicroelectronics TIP29C is a high-quality NPN power transistor designed for use in discrete semiconductor applications. Rated for a maximum DC collector current of 1 A, it supports voltages up to 100 V with a collector-emitter breakdown voltage (Vceo) of 100 V. The device is housed in a robust TO-220 package featuring three pins, enabling easy through-hole mounting and effective thermal management.

This transistor offers a maximum power dissipation of 30 W, making it suitable for power amplification and switching applications in industrial electronics, automotive systems, and general-purpose electronic circuits. Its minimum DC current gain (hFE) of 15 ensures efficient performance across operating conditions ranging from 0°C to 150°C.

Physical dimensions of the transistor measure 28.9 mm in height, 10.4 mm in length, and 4.6 mm in width, providing a compact footprint for PCB layouts while maintaining durability. The NPN polarity supports common bipolar transistor configurations for versatile circuit designs.

The TIP29C model is ideal for laboratory experiments, manufacturing equipment, and automotive electronics requiring stable power transistor solutions. The transistor supports a maximum collector current of 1 ampere. Maximum collector-emitter voltage rating of 100 volts.

Through-hole mounting in TO-220 package enhances heat dissipation. NPN transistor polarity suitable for power switching applications. Operating temperature range from 0°C to 150°C ensures durability. Maximum power dissipation capacity is 30 watts.

Minimum DC current gain of 15 for sufficient signal amplification. Compact dimensions of 28.9mm height, 10.4mm length, and 4.6mm width. Supports industrial, automotive, and general electronic use cases. Explore more NPN and Power Transistors in the Semiconductor category at EnvMart for comprehensive electronic component solutions.
