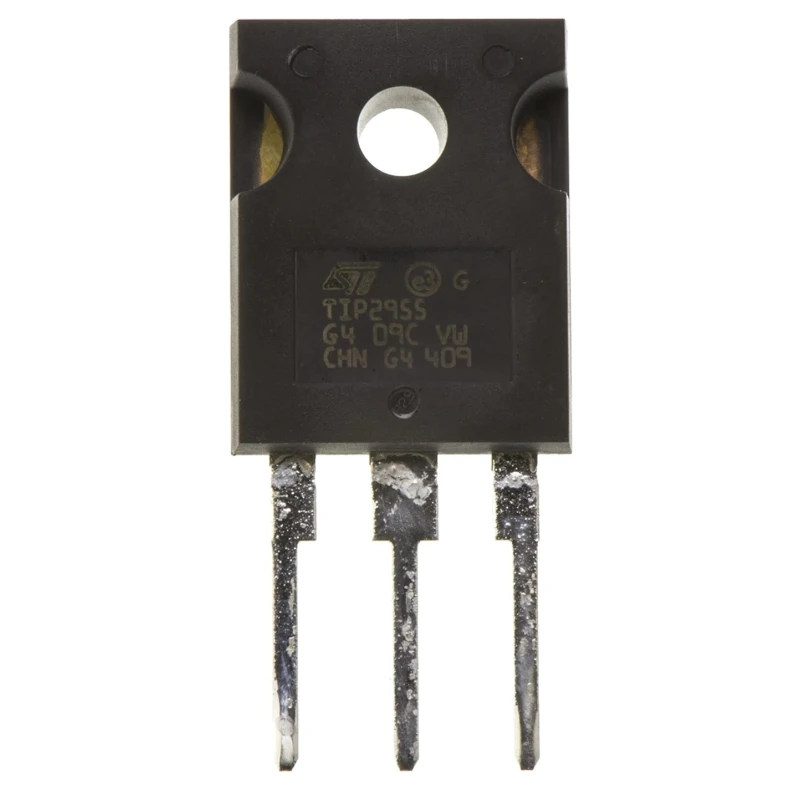

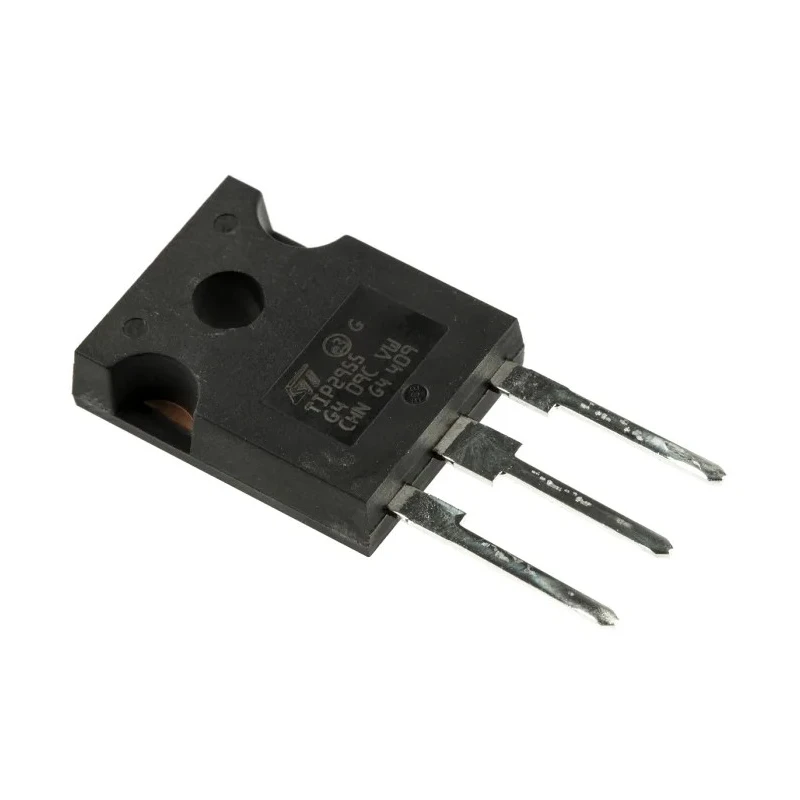

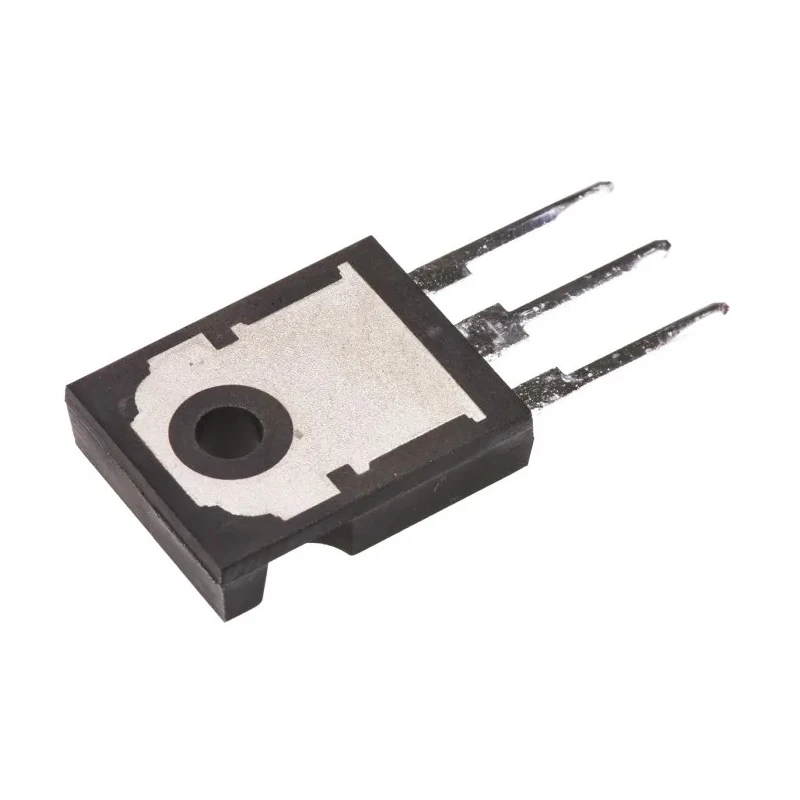

STMicroelectronics PNP Power Transistor, Maximum Collector Current -15 A, Collector Emitter Voltage -60 V, TO-247 TIP2955

STMicroelectronics TIP2955 is a PNP power transistor engineered for robust power electronic applications. Featuring a maximum DC collector current of 15 amperes and a maximum collector emitter voltage of 60 volts, it efficiently supports high power dissipation of up to 90 watts. The device comes in a TO-247 3-pin through-hole package, offering durability and ease of assembly.

This single transistor configuration is well-suited for power amplification and switching in automotive, industrial, and electronic circuit designs. The transistor operates safely between a temperature range of 0°C to 150°C, ensuring reliability under demanding thermal conditions.

With a transition frequency of 3 MHz and a minimum gain of 5, the TIP2955 balances speed and performance for analog and switching applications. Its pin count of 3 matches standard layout configurations, simplifying integration into existing assemblies.

Physical dimensions of 15.75 mm length, 5.15 mm width, and 34.95 mm height make it compact for mounting on power boards or heatsinks. The transistor also maintains safe voltage thresholds, including a maximum collector base voltage of 100 V and emitter base voltage of 1.8 V.

This product does not carry specific standards or automotive approvals but is designed with STMicroelectronics' quality and reliability assurance. It is ideal for use in industrial electronics, power supplies, and electronic manufacturing.

Designed for through-hole mounting with a TO-247 package. Offers a maximum power dissipation rating of 90 W. Single transistor configuration suitable for power applications. Operates within a temperature range of 0°C to 150°C.

Maximum transition frequency of 3 MHz for amplifier applications. Minimum DC current gain (hFE) of 5 to ensure reliable switching. Pin count of 3 facilitating standard connectivity. Collector base voltage maximum rating of 100 V.

Emitter base voltage rating of 1.8 V maximum. Compact dimensions with length 15.75 mm, width 5.15 mm, height 34.95 mm. Explore more Power Transistors and semiconductor solutions with STMicroelectronics at EnvMart for your electronic design and manufacturing needs.
