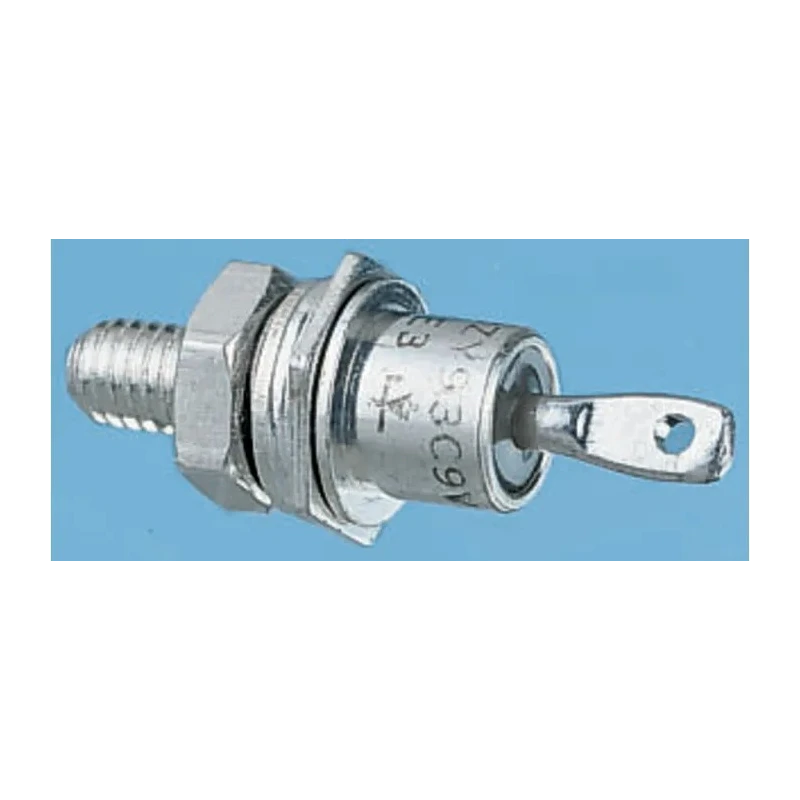

Vishay 600 V 25 A Standard Recovery Switching Diode 2-Pin DO-203AA VS-25FR60

Vishay VS-25FR60 is a high-efficiency standard recovery switching diode built in a 2-pin DO-203AA package. It supports a maximum continuous forward current of 25 A and can withstand peak reverse voltages up to 600 V, making it ideal for power electronic switching applications.

The diode's compact physical dimensions - 31.8 mm in height, 12.69 mm in length, and 11 mm in diameter - allow for integration into space-constrained designs. Its stud anode configuration facilitates reliable mounting with screw type connection. The device operates efficiently with a maximum forward voltage of 1.3 V and exhibits a low peak reverse current of only 12 mA, ensuring energy-efficient switching.

Rated for operation in harsh environments from -65°C to 175°C, the VS-25FR60 can handle peak non-repetitive surge currents as high as 373 A. Although it carries no special standards or automotive certification, it is widely used across industrial, commercial, laboratory, and manufacturing sectors. The diode is suitable for power supplies, rectification circuits, and other switching component designs requiring robust and dependable performance.

Set includes the single Vishay VS-25FR60 diode packaged in DO-203AA form factor. It is a versatile component for semiconductor applications demanding high current and voltage capabilities with standard recovery characteristics.

Designed for efficient switching in electronic circuits. Features a 2-pin DO-203AA package for secure mounting. Maximum peak reverse voltage is 600 V for robust performance. Supports a peak non-repetitive forward surge current of 373 A.

Operates reliably between -65°C and 175°C temperature range. Compact dimensions of 31.8 mm height and 12.69 mm length ensure space-saving design. Maximum forward voltage drop is 1.3 V, optimizing power efficiency. Low peak reverse current of 12 mA enhances circuit stability.

Stud anode diode configuration suitable for various power applications. Non-automotive standard device, ideal for industrial and laboratory uses. Explore more Vishay Semiconductor Diodes at EnvMart for reliable and precise electronic component solutions.
