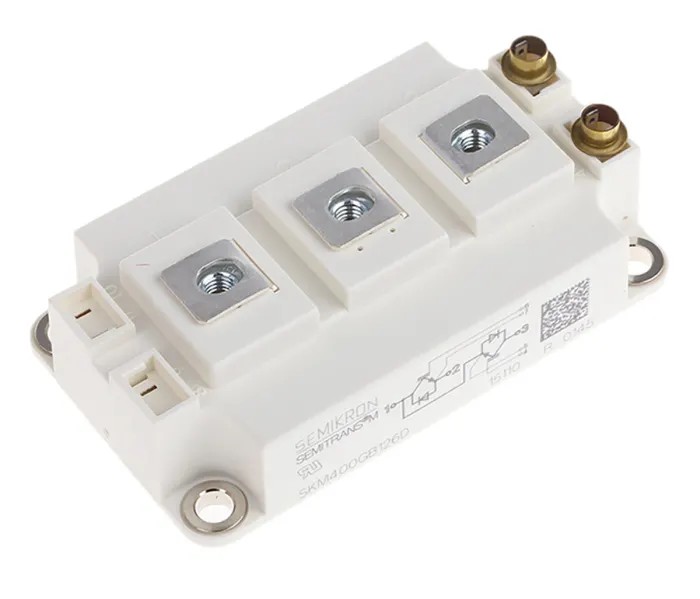

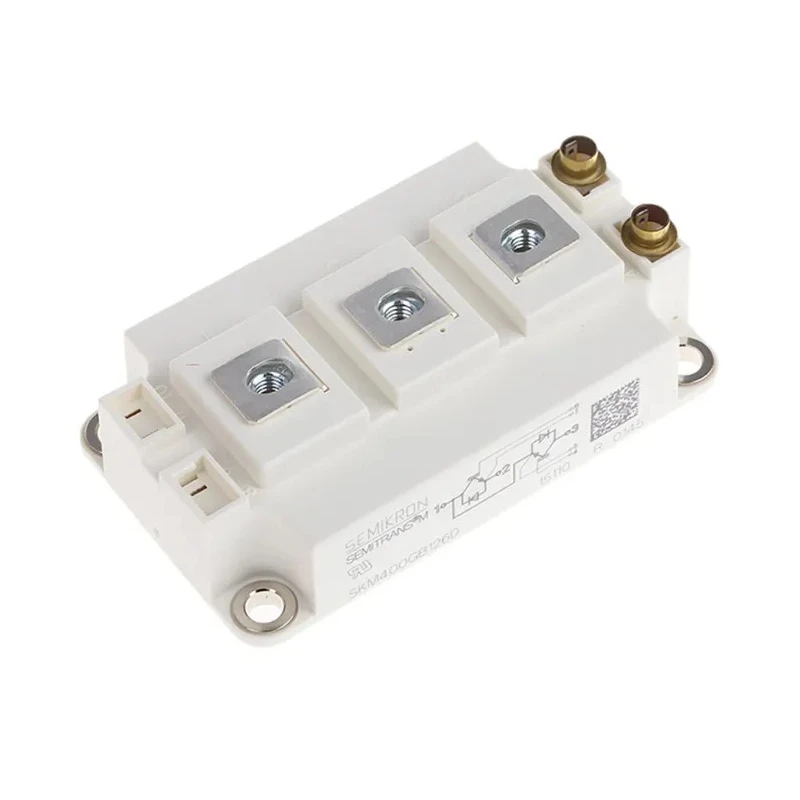

Semikron Danfoss N-Channel IGBT Module 470 A 1200 V 7-Pin SEMITRANS Panel SKM400GB126D

Semikron Danfoss SKM400GB126D is a high-performance N-Channel IGBT Module designed for industrial power switching and control applications. Featuring a maximum continuous collector current of 470 A and rated at 1200 V collector emitter voltage, this dual IGBT module employs a 7-pin SEMITRANS package optimized for panel mounting. The device operates reliably within a temperature range spanning from -40°C up to 150°C, making it suitable for harsh environments.

The SEMITOP® package integrates two series-connected half-bridge IGBT devices, providing compactness and enabling switching frequencies up to 12 kHz. Construction includes an insulated copper baseplate with Direct Bonded Copper technology to enhance thermal management and performance efficiency. With a maximum collector emitter saturation voltage of just 2.1 V, the module ensures low conduction losses for energy-saving operation.

Its technical specifications and robust construction make it ideal for demanding applications such as AC inverter motor drives, uninterruptible power supplies (UPS), and other power electronic systems requiring reliable fast switching and high current capability. The module's compact size (106.4 mm length, 61.4 mm width, and 30.5 mm height) facilitates space-saving designs in industrial and commercial electronic systems.

This module features a dual IGBT device in a compact SEMITRANS package. High maximum continuous collector current of 470 A supports heavy-duty operation. Voltage rating of 1200 V suits many power electronics applications.

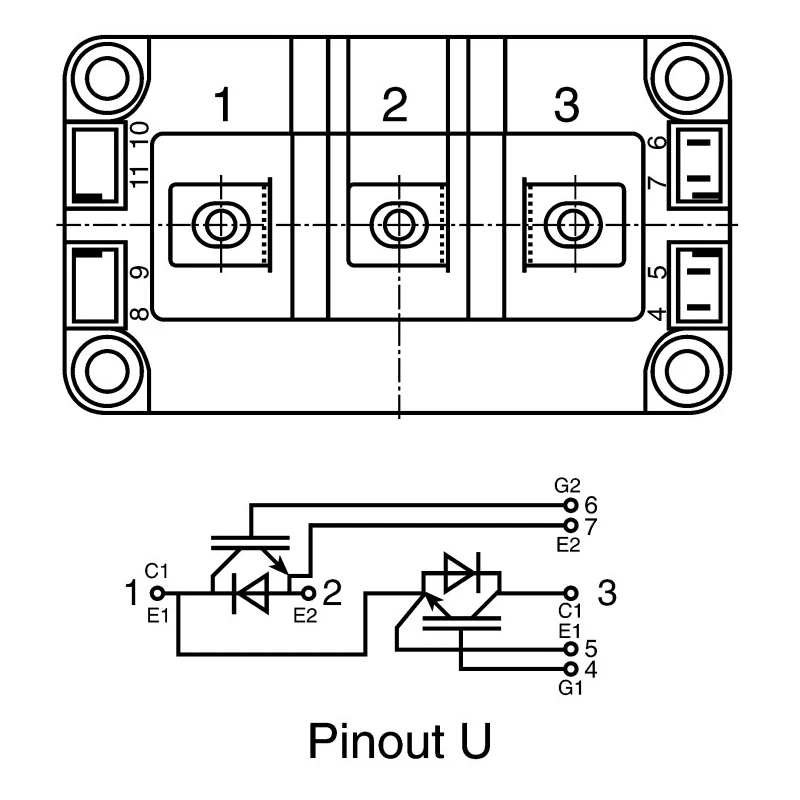

7-pin interface for secure and reliable electrical connection. Operating temperature range from -40°C to 150°C offers wide environmental compatibility. Insulated copper baseplate improves thermal performance. Designed for applications including motor drives and UPS systems.

Semikron Danfoss products are well-recognized in industrial electronics for their durability and precision. This SKM400GB126D IGBT Module supports converters, inverters, and power control setups requiring efficient switching and power management. For more industrial semiconductor modules, please explore our electronics & electricals category at EnvMart.
