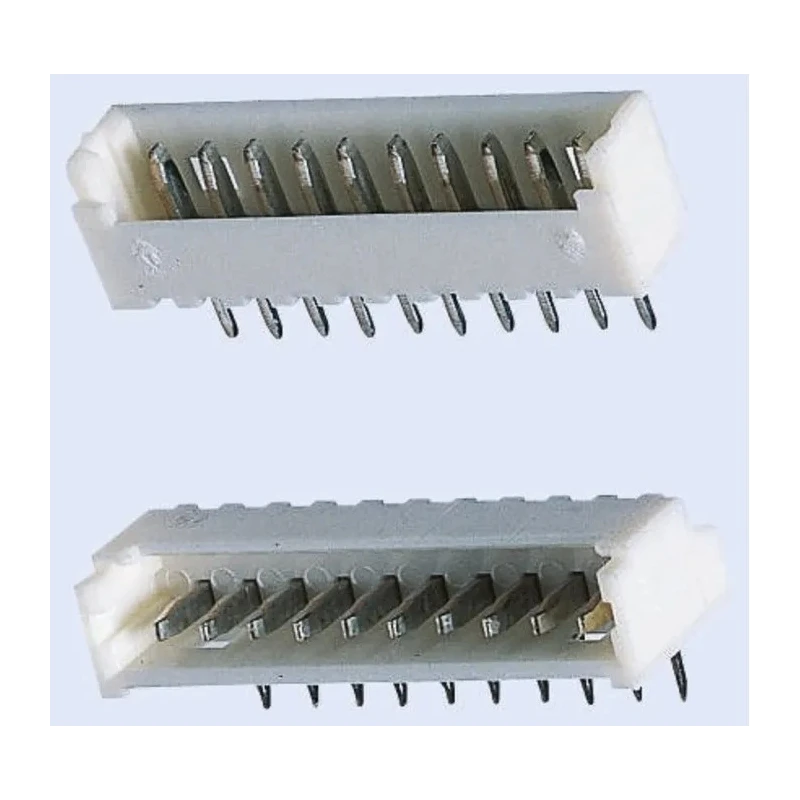

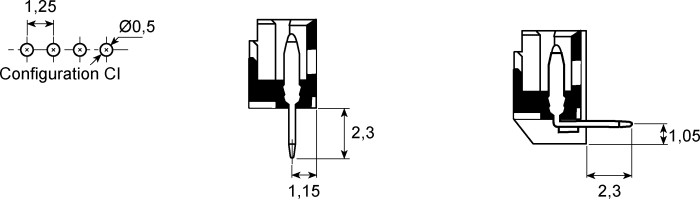

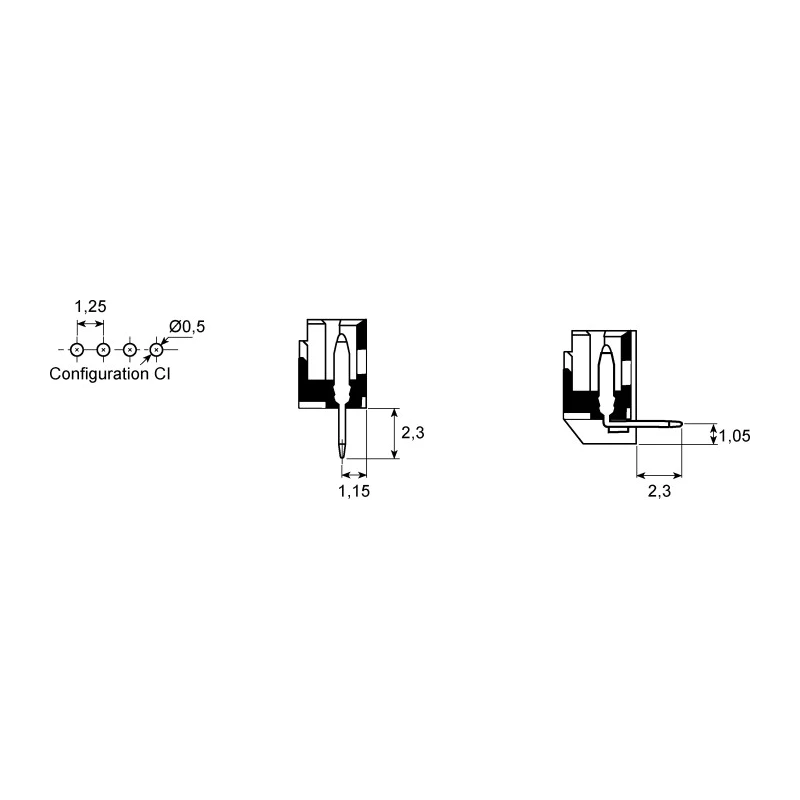

Molex PicoBlade Series Right Angle Through Hole PCB Header 9 Contacts 1.25mm Pitch 1 Row Shrouded 53048-0910
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.3mm |
Key Features
- Compact 1.25 mm pitch reduces PCB space by up to 45% compared to 2.00 mm systems.
- Supports 1 A current capability suitable for high-density harness applications.
- Right angle orientation facilitates versatile PCB mounting configurations.
- Shrouded housing and friction locking mechanism prevent accidental unmating.
- Made with nylon housing and phosphor bronze contacts with tin plating.
- Through hole mount type ensures stable soldered connections.
- Operates reliably between -40°C and 85°C temperatures.
- Solder tail pin length is 2.3 mm for secure solder joints.
Product Description
Molex 53048-0910 PicoBlade Series Right Angle Through Hole PCB Header offers a compact 1.25 mm pitch design with 9 contacts arranged in a single row, engineered for reliable wire-to-board connections in high-density electronic assemblies.
The connector system achieves PCB space savings of up to 45% compared to traditional 2.00 mm pitch connectors, maintaining a 1 A current capacity. Its right angle orientation provides flexibility for PCB layouts, while the shrouded housing with friction locking ensures secure mating to prevent accidental disconnection due to vibration or mishandling.
Constructed with a durable nylon housing and phosphor bronze contacts with tin plating, this through hole mount PCB header is rated for operational temperatures ranging from -40°C to 85°C, suitable for harsh industrial and automotive environments.
The 2.3 mm solder tail pins enable strong solder joints that resist cracking from mechanical stress. Typical applications include automotive alarm systems, car audio equipment, DVD players, industrial process controls, and medical patient monitors, where compactness and reliability are critical.
Compact 1.25 mm pitch design saves PCB space. 1 A current capacity with safe operating temperatures. Right angle orientation for flexible mounting. Shrouded housing with friction lock for secure mating. Durable nylon body with phosphor bronze tin-plated contacts.
Through hole mount ensures stable solder connections. Suitable for automotive, industrial, and medical applications. Reliable operation from -40°C to 85°C. Solder tail pin length of 2.3 mm for robust solder joints.
These attributes make the Molex PicoBlade 53048-0910 an excellent choice for space-constrained PCB designs requiring dependable electrical connection performance and mechanical robustness. Explore more PCB Headers and connectors on EnvMart to find ideal components for your electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex PicoBlade Series PCB header features a compact pitch of 1.25 mm, which allows for significant space savings on the PCB compared to larger pitch connectors.
This PCB header has 9 contacts arranged in a single row, designed for reliable wire-to-board connections.
It supports a current capacity of 1 A, making it suitable for high-density harness applications.
This connector operates reliably within a temperature range of -40°C to 85°C, suitable for various industrial and automotive environments.
The housing is made of nylon, while the contacts are constructed from phosphor bronze with tin plating.
It features a through hole mount type, ensuring stable soldered connections for reliable performance.
The solder tail pin length is 2.3 mm, which aids in creating secure solder joints.
This model has a right angle orientation, providing flexibility in PCB mounting configurations.
The Molex PicoBlade PCB header is shrouded, which helps prevent accidental unmating due to vibration or mishandling.
Typical applications include automotive alarm systems, car audio equipment, DVD players, industrial process controls, and medical patient monitors.
This PCB header is rated for a maximum voltage of 125V, suitable for various electronic applications.
The connector features male contacts, designed for secure connections in wire-to-board applications.
