Molex PicoBlade Series Right Angle Through Hole PCB Header, 9 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53048-0910

Molex 53048-0910 PicoBlade Series Right Angle Through Hole PCB Header is a precision-engineered wire-to-board connector designed for compact installations where PCB space efficiency is critical. Featuring 9 male contacts in a single row with a 1.25 mm pitch, this connector delivers reliable electrical performance with a current rating of 1 A at 125 V.

The shrouded housing made of durable nylon incorporates locking windows that engage with mating connectors to prevent accidental disconnection, ensuring robustness under vibration or mishandling. Contacts are crafted from phosphor bronze and plated with tin, enhancing conductivity and corrosion resistance.

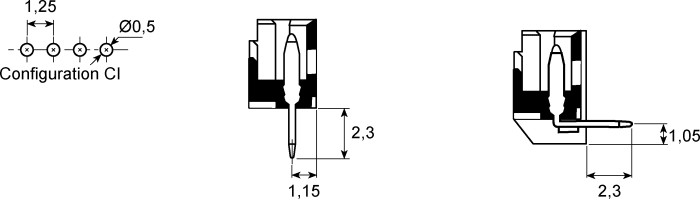

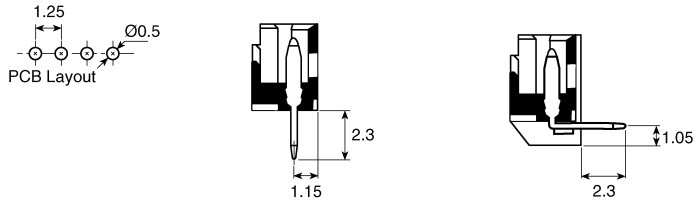

This through hole mount right angle header uses solder termination with 2.3 mm tail pins, providing mechanical stability and strain relief on the PCB. Operating across a wide temperature spectrum from -40°C to 85°C, it is suited for automotive alarm systems, car audio, industrial process controls, DVD players, and medical patient monitoring applications.

The PicoBlade connector system provides significant PCB space savings of up to 45% compared to traditional 2.00 mm pitch connectors while maintaining equivalent 1 A current capacity. The friction locking mechanism ensures secure mating and reliable operation in high-density wire harness assemblies.

The connector features a friction locking mechanism ensuring secure mating connection. Compact 1.25 mm pitch design offers up to 45% PCB space saving compared to 2.00 mm systems. Rated for 1 A current, suitable for high density harness applications.

Constructed with nylon housing and phosphor bronze contacts plated with tin for durability. Right angle, shrouded orientation with through hole mount for robust PCB attachment. Operating temperature range from -40°C to 85°C for diverse environmental conditions.

Tail pin length of 2.3 mm optimized for solder tail termination. Ideal for automotive, industrial, medical, and consumer electronics industries requiring compact, reliable PCB connections.
