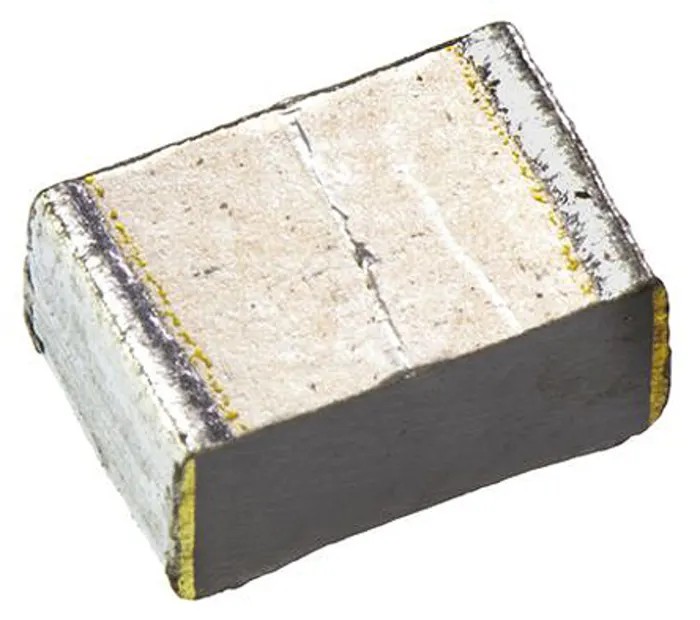

Panasonic ECHU1H332GX5 50 V DC 50 V AC 3.3 nF Surface Mount Film Capacitor ECHU(X) Series

Panasonic ECHU1H332GX5 is a high-quality surface mount film capacitor from the ECHU(X) series, designed for electronic components requiring reliable capacitance with low ESR. This film capacitor features a capacitance of 3.3 nF and is rated for 50 V DC and 50 V AC, making it suitable for a variety of circuit designs including filtering, audio, oscillation, and resonance applications.

Constructed using stacked metallised PPS film with a mould-less construction, this capacitor ensures durability and consistent performance even under thermal stress up to 125°C. Its compact dimensions - 3.2 mm length, 1.6 mm width, and 0.9 mm height - allow for space-saving assembly on PCBs, while the lightweight nature of the device contributes to overall design efficiency.

The ECHU1H332GX5 supports reflow soldering, streamlining the manufacturing process in surface mount technology (SMT) assembly lines. Compliance with RoHS standards highlights its suitability for environmentally conscious electronic devices.

This capacitor is ideal for use in industrial manufacturing, electronics repair, audio equipment, communications devices, and other applications requiring stable capacitance in a compact package. The low ESR characteristic enhances filtering and signal integrity within circuits.

Package contents include one Panasonic ECHU(X) series surface mount film capacitor with the specified electrical and physical characteristics. Constructed from stacked metallised PPS film with mould-less design. Compact and lightweight surface mount Film Capacitor.

Rated maximum operating temperature is 125°C with reliable thermal stability. Low equivalent series resistance (ESR) for enhanced filtering and audio applications. Designed for reflow soldering processes in PCB assembly.

Compliant with RoHS environmental standards. Applications include filtering, audio circuits, time-constant, oscillation, and resonance circuits. Physical dimensions are Length 3.2 mm, Width 1.6 mm, Height 0.9 mm. Explore the comprehensive range of industrial and electronic components on EnvMart for advanced and reliable products.
