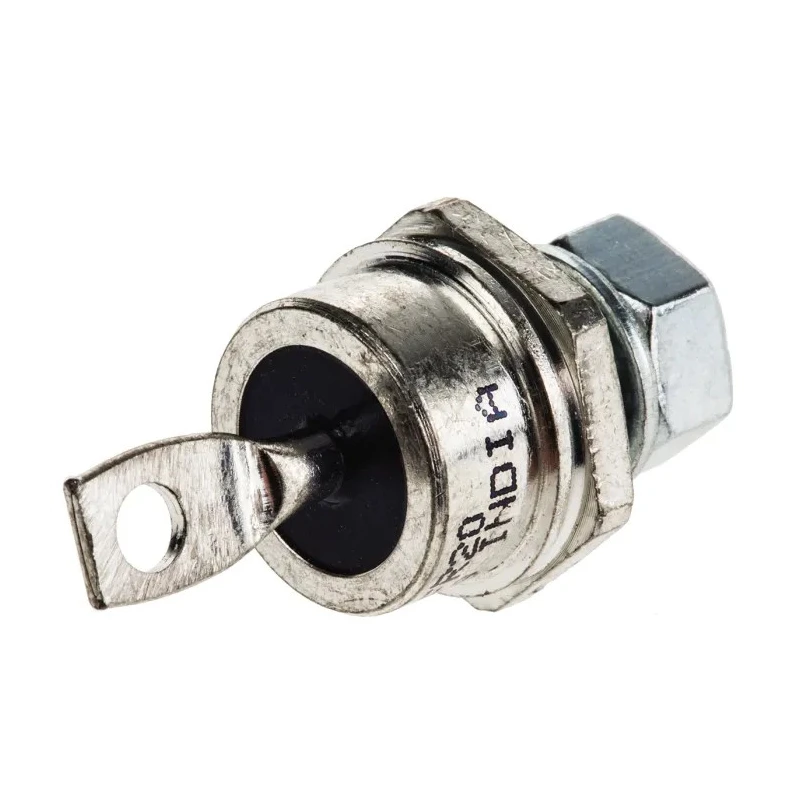

Vishay Standard Recovery Switching Diode 200 V 85 A 2-Pin DO-203AB VS-85HFR20

Vishay VS-85HFR20 is a standard recovery switching diode designed for efficient power rectification in electronic applications. This diode supports a maximum continuous forward current of 85 A and can block peak reverse voltages up to 200 V, providing stable and reliable performance in demanding conditions.

The device is housed in a 2-pin DO-203AB package offering ease of integration into electronic circuits. Its fast recovery time of 100 nanoseconds makes it ideal for applications requiring rapid switching, enhancing overall circuit efficiency.

Operating reliably across a wide temperature range from -65°C up to 180°C, this diode is suitable for various industrial and automotive environments. The low maximum forward voltage of 1.2 V ensures energy efficiency by reducing conduction losses.

Designed with a stud anode configuration and screw mounting type, it allows secure installation and mechanical stability in power electronics assemblies. The diode is RoHS compliant, underscoring its conformity to environmental standards.

Rated maximum continuous forward current of 85 A for heavy current applications. Peak reverse voltage is 200 V to withstand high voltage spikes. Standard DO-203AB 2-pin package for mechanical compatibility. Fast recovery time of 100ns for switching efficiency.

Operating temperature range from -65°C to 180°C for harsh conditions. Low forward voltage drop of 1.2 V minimizes power loss. High surge current ability at 1.8 kA for transient conditions. RoHS compliant for environmental safety standards.

Compact dimensions: 22.9 mm height x 20.02 mm length x 17.35 mm diameter. Stud anode configuration with screw mount for secure connection.

This diode is well-suited for industrial power supplies, automotive electronics, and other applications requiring robust switching and rectification capabilities. Its design ensures durability and high performance, making it a reliable electronic component in Semiconductor Diode categories.
