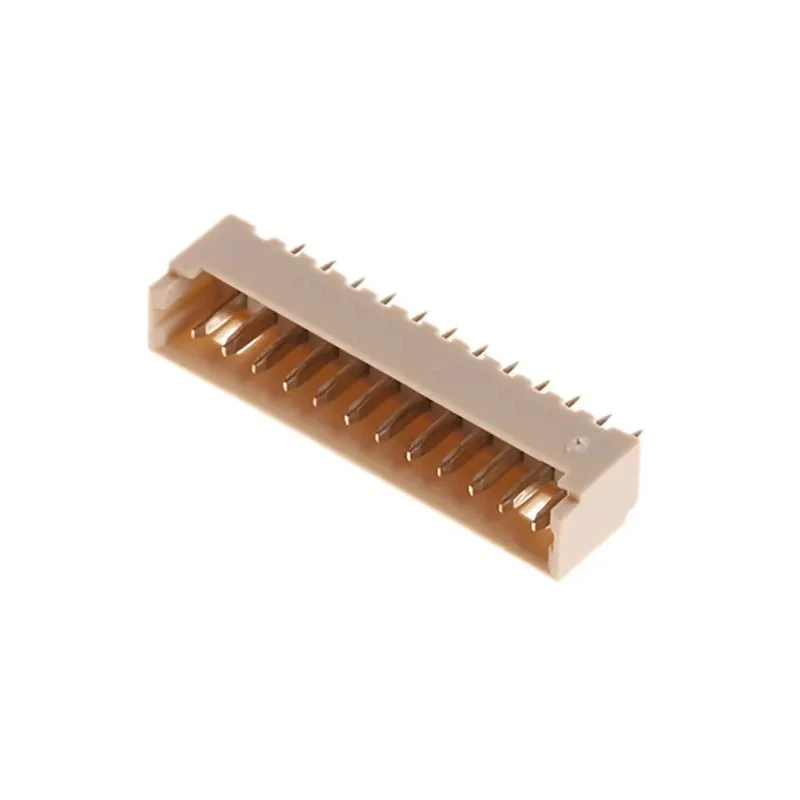

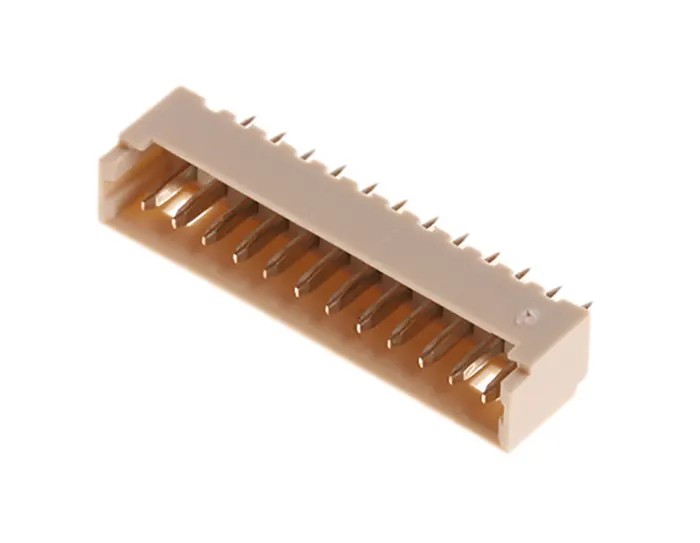

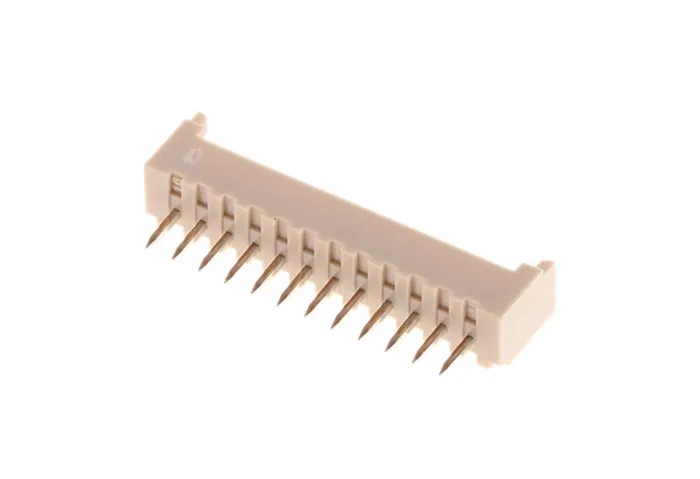

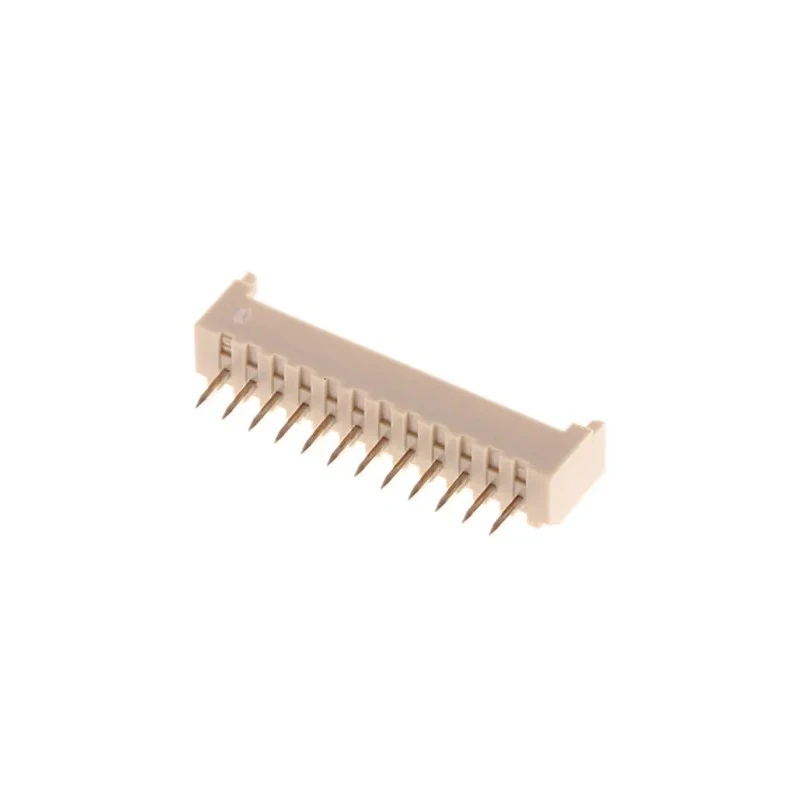

Molex PicoBlade Series Straight Through Hole PCB Header 12 Contact 1.25 mm Pitch 1 Row Shrouded 53047-1210
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |

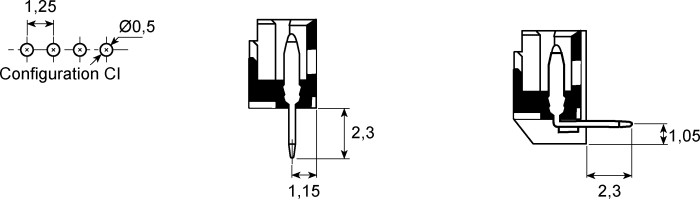

| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.3mm |
Key Features
- This header supports 1 A current for reliable power delivery.
- The housing is made of durable nylon material to withstand industrial conditions.
- Contacts are made from phosphor bronze with tin plating for corrosion resistance.
- The connector features a friction locking mechanism ensuring secure mating and preventing accidental disconnects.
- Suitable for through hole mounting with a solder termination type for firm PCB attachment.
- Minimum operating temperature is -40°C and maximum is 85°C, suitable for varied environments.
- The design includes a shrouded, male contact gender construction with a 2.3 mm tail pin length for stable connections.
- The 1 row, 12 contact configuration with a 1.25 mm row pitch maximizes PCB space efficiency.
Product Description
Molex 53047-1210 PicoBlade Series straight through hole PCB Header is a precision connector designed for wire-to-board interconnection systems requiring compact 1.25 mm pitch spacing and 12 contacts arranged in a single row.
Constructed with a nylon housing, this shrouded header ensures secure mating and protection against environmental factors. Phosphor bronze contact material with tin plating maintains reliable conductivity and durability across industrial, automotive, and medical electronics applications.
Featuring a friction locking mechanism, the connector provides stable, vibration-resistant engagement, essential for high-density wiring harnesses and sensitive electronic equipment.
The through-hole solder termination mounting style guarantees solid mechanical and electrical bonding to PCBs, suited for manufacturing environments demanding durability and consistent performance.
Operating temperatures range from -40°C to 85°C, enabling usage in automotive alarms, industrial controls, patient monitoring devices, and car audio/DVD systems. Compact 1.25 mm pitch design for space-saving board layouts.
1 A current rating supporting typical low power circuit requirements. Durable nylon housing material for long-term reliability. Phosphor bronze contacts with tin plating minimize corrosion and contact resistance. Friction lock mechanism prevents accidental disconnections.
Through hole solder termination ensures firm PCB retention. Shrouded design protects contacts and maintains connection integrity. Wide temperature range suitable for varied industrial and automotive environments.
This product is ideal for applications in electronics manufacturing, automotive systems, industrial process controls, and medical devices requiring compact and reliable PCB connectors.
Explore more Molex connectors and accessories to suit your electronic assembly needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1 A, suitable for typical low power circuit requirements.
The maximum operating temperature for this header is 85°C, allowing it to function in various environments.
It features a through hole mounting style with a solder termination type for secure attachment to PCBs.
The housing is made of nylon, while the contacts are constructed from phosphor bronze with tin plating for corrosion resistance.
This model has 12 contacts arranged in a single row, designed for compact wiring solutions.
The pitch size is 1.25 mm, which helps maximize PCB space efficiency.
The tail pin length is 2.3 mm, ensuring stable connections when mounted.
It is designed as a wire-to-board connector system, suitable for various electronic applications.
The minimum operating temperature is -40°C, making it suitable for extreme environments.
Yes, it includes a friction locking mechanism that ensures secure mating and prevents accidental disconnections.
The country of origin for this product is India.
This model is suitable for applications in automotive systems, industrial controls, and medical devices requiring reliable PCB connections.
