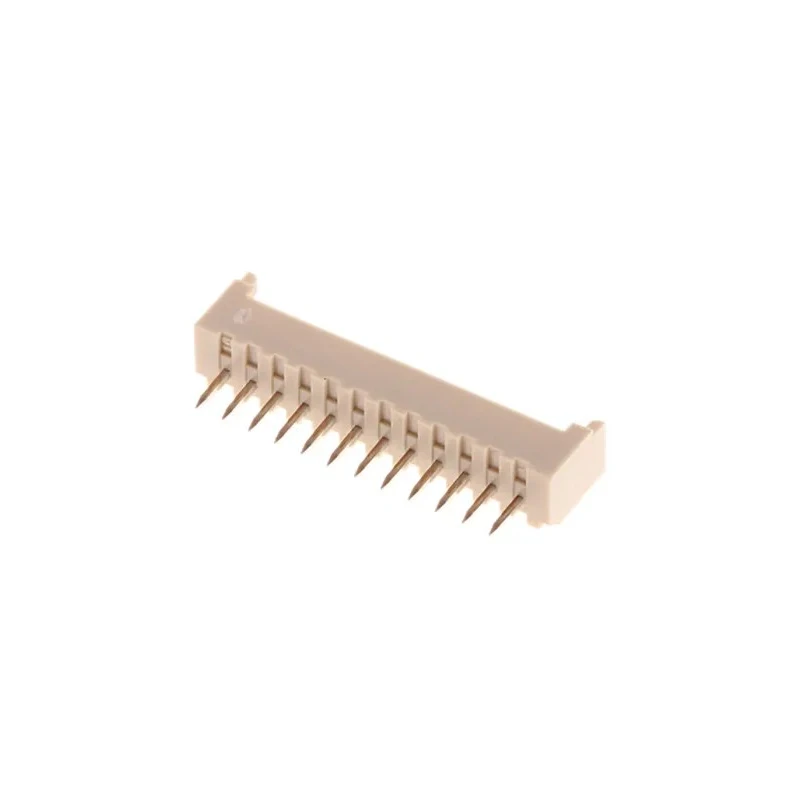

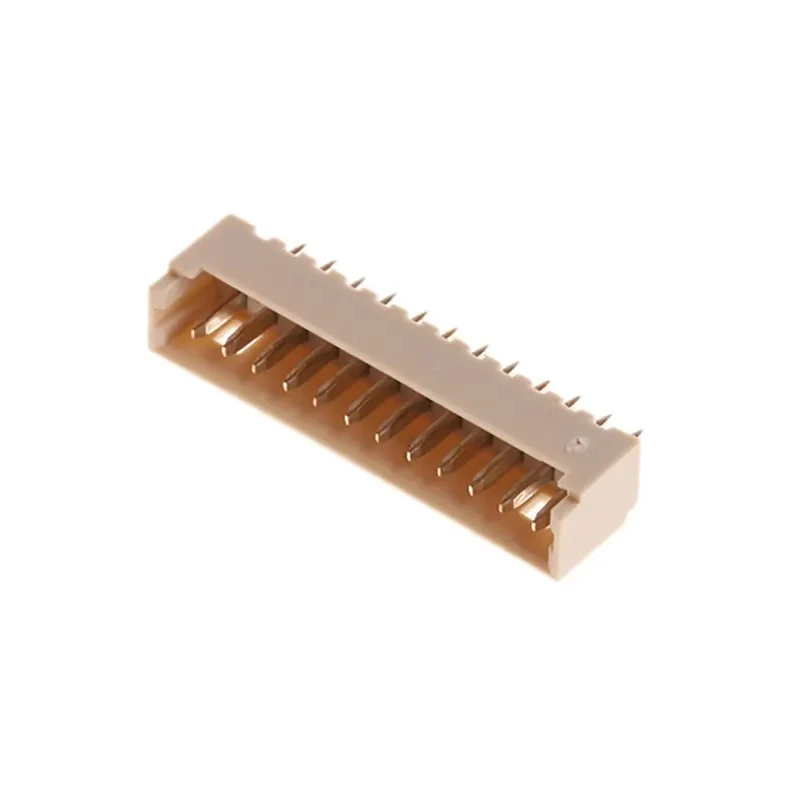

Molex PicoBlade Series Straight Through Hole PCB Header, 12 Contact(s), 1.25 mm Pitch, 1 Row, Shrouded, 125V, 1A 53047-1210

Molex 53047-1210 PicoBlade Series Straight Through Hole PCB Header offers a compact 1.25 mm pitch with 12 male contacts arranged in a single row. This shrouded header connector provides a secure friction locking mechanism, ensuring reliable mating connections for wire-to-board applications in electronic devices.

The 1A current capability matches similar 2.00 mm pitch connectors while reducing PCB space significantly by up to 45%. The nylon housing combined with phosphor bronze contacts plated in tin ensures durability and corrosion resistance. The through hole mounting provides robust mechanical stability for repeated soldering and operation.

Typical uses include automotive alarm systems, car audio units, DVD players, industrial process controls, and medical patient monitoring equipment. Its operating temperature range from -40°C to 85°C makes it suitable for demanding environments. The tail pin length of 2.3 mm facilitates strong solder joint formation minimizing cracks due to handling.

Molex's PicoBlade connector system is engineered for compactness and performance in high density harness applications, making it a preferred choice for designers needing reliable PCB Headers with minimal footprint.

Compact 1.25 mm pitch design saving up to 45% PCB space compared to 2.00 mm. 1A current rating for efficient power transfer in fine pitch connectors. Friction lock mechanism in shrouded design prevents accidental disengagement.

Nylon housing and phosphor bronze contacts plated with tin resist wear and corrosion. Through hole mount type ensures mechanical stability and durability on PCBs. Operating temperature range -40°C to 85°C suitable for diverse industrial environments.

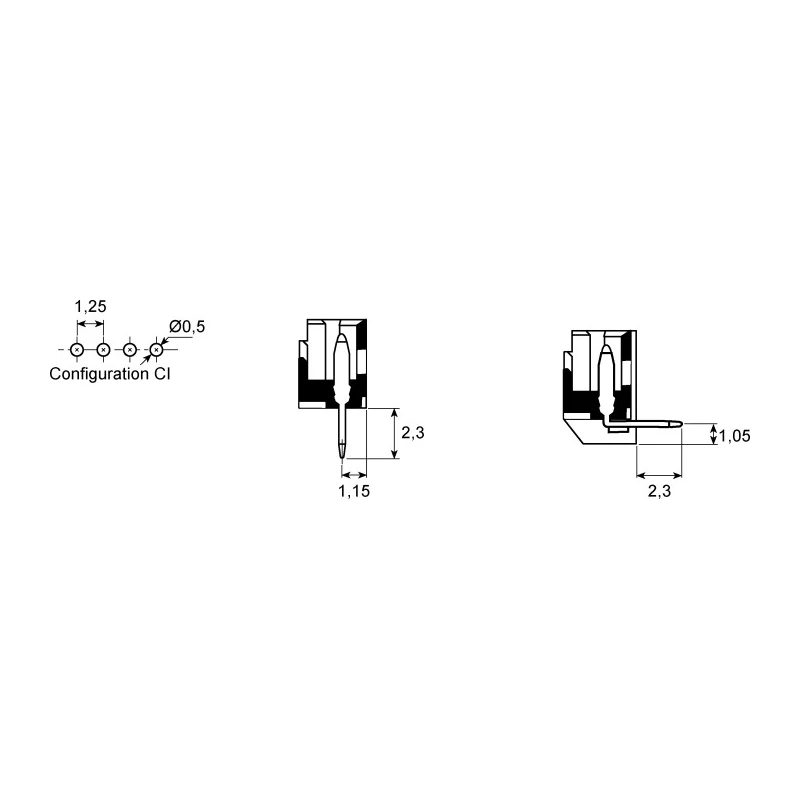

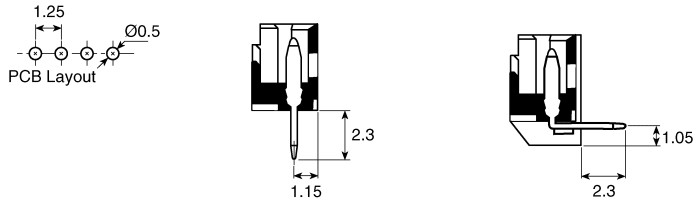

12 contacts arranged in one row provide versatile connectivity options. Tail pin length of 2.3 mm for reliable solder termination. Manufactured in Japan ensuring high quality and manufacturing standards.

Ideal for applications in industrial electronics, automotive systems, HVAC controls, medical devices, and consumer electronics where compact, reliable connections are critical. Explore other Molex PCB connectors for comprehensive interconnect solutions on EnvMart.
