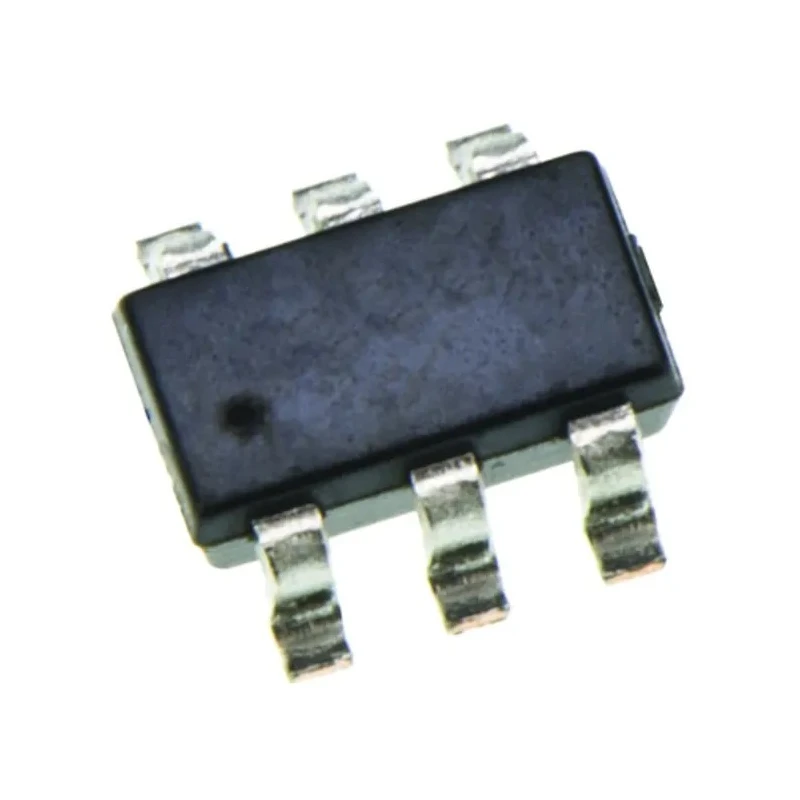

DiodesZetex 1 3-Input AND Logic Gate Surface Mount 5-Pin SOT-26 74LVC1G11W6-7

DiodesZetex 74LVC1G11W6-7 is a 1 3-input AND logic gate integrated circuit offered in a compact 5-pin SOT-26 surface mount package. This device belongs to the 74LVC1G family characterized by low-voltage CMOS logic operation. The gate is designed to function reliably at supply voltages ranging from 1.65 volts up to 5.5 volts, making it suitable for various low-voltage digital applications.

The device contains a single AND gate with three inputs, each using CMOS input logic for high noise immunity and low static power consumption. Its propagation delay time of 4.2 nanoseconds ensures rapid signal processing in digital circuits. The push-pull output stage provides strong driving capability, supporting both LVTTL/TTL compatible inputs and LVCMOS outputs.

Operating temperature range spans from -40°C to 125°C, making it capable of functioning in harsh industrial and commercial environments. The SOT-26 surface mount package with a 5-pin configuration facilitates compact and space-saving PCB layouts, easing automated assembly processes.

Key features include low power operation, fast switching speeds, and compatibility with modern digital logic standards. This logic gate is ideal for use in industrial controls, automotive electronics, consumer devices, and other embedded systems requiring reliable logic functions.

Wide supply voltage range from 1.65 V to 5.5 V. Three CMOS inputs per AND gate. Propagation delay time of 4.2 ns typical. Surface mount SOT-26 package, 5 pins. Operating temperature range of -40°C to 125°C. Push-pull output type for strong output drive.

LVTTL/TTL input compatibility with LVCMOS output. Low static power consumption due to CMOS technology. Suitable for industrial, commercial, and automotive applications.

This product is a standard component in electronic semiconductor devices and is widely used across multiple sectors including industrial automation, consumer electronics, and embedded system design. It offers a reliable and efficient logic function while minimizing board space and power usage.
