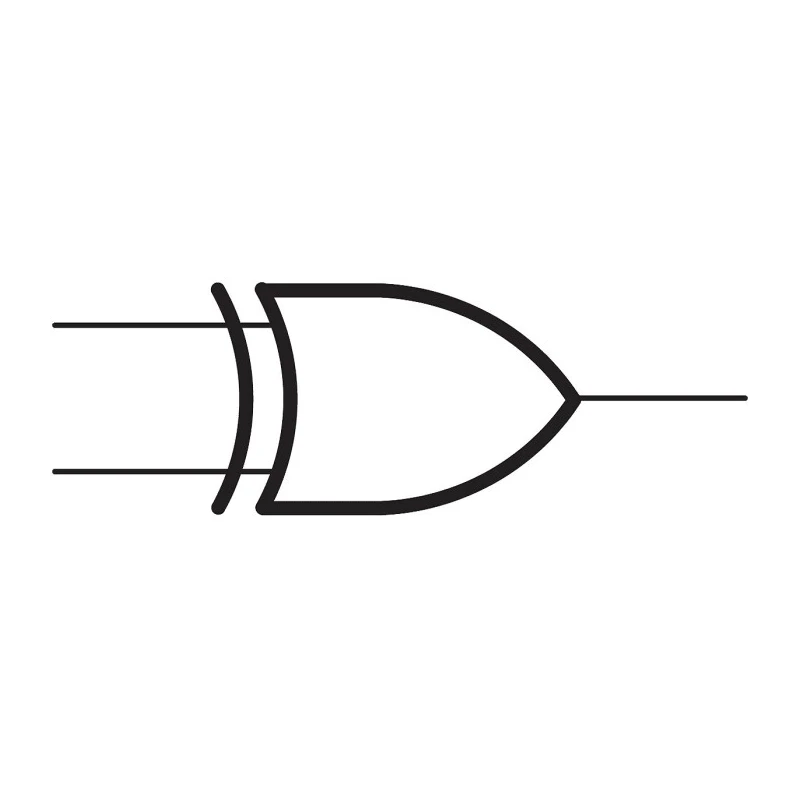

DiodesZetex 1 2-Input XOR Logic Gate 5-Pin SOT-353 Surface Mount Logic IC 74LVC1G86SE-7

DiodesZetex 74LVC1G86SE-7 is a single 2-input XOR logic gate from the 74LVC1G family, encapsulated in a compact 5-pin SOT-353 surface mount package suitable for applications requiring low-voltage CMOS logic functionality.

Operating voltage ranges from 1.65 V to 5.5 V allow seamless integration with industry standard logic families such as LVTTL and TTL inputs, and LVCMOS outputs, making it ideal for electronic control and signal processing circuits.

This logic gate features a maximum propagation delay time of 5.5 nanoseconds at specified capacitive loads, offering reliable high-speed logic switching performance in demanding industrial and commercial electronics.

It supports a wide operating temperature range from -40°C to 125°C, ensuring stable operation in harsh environmental conditions frequently encountered in industrial and automotive sectors, although it does not have specific automotive certification.

The device outputs are push-pull type with the capability to source and sink up to 32 mA of current, which facilitates driving moderate loads directly without additional buffering.

The small form factor SOT-353 package with dimensions of 1 mm height and 2.2 mm length supports high-density PCB layouts, favored in industrial automation, consumer electronics, and embedded systems manufacturing.

The product is manufactured in China, conforming to applicable semiconductor quality standards and excludes specific RoHS certifications or approvals but aligns with general semiconductor reliability requirements.

Single 2-input XOR logic gate in low-voltage CMOS technology. Compatible with LVTTL/TTL inputs and LVCMOS outputs. Surface mount 5-pin SOT-353 package for compact PCB design. Wide supply voltage range from 1.65 V to 5.5 V for flexibility.

High-speed operation with 5.5 ns maximum propagation delay. Operational robustness from -40°C to 125°C ambient temperature. Push-pull output capable of driving ±32 mA loads.

This Logic Gate is suitable for applications in electronics manufacturing, industrial automation systems, communications equipment, and other embedded systems requiring reliable logical XOR functionality. Browse EnvMart’s Electronics & Electricals category for compatible semiconductor components and logic IC families.
