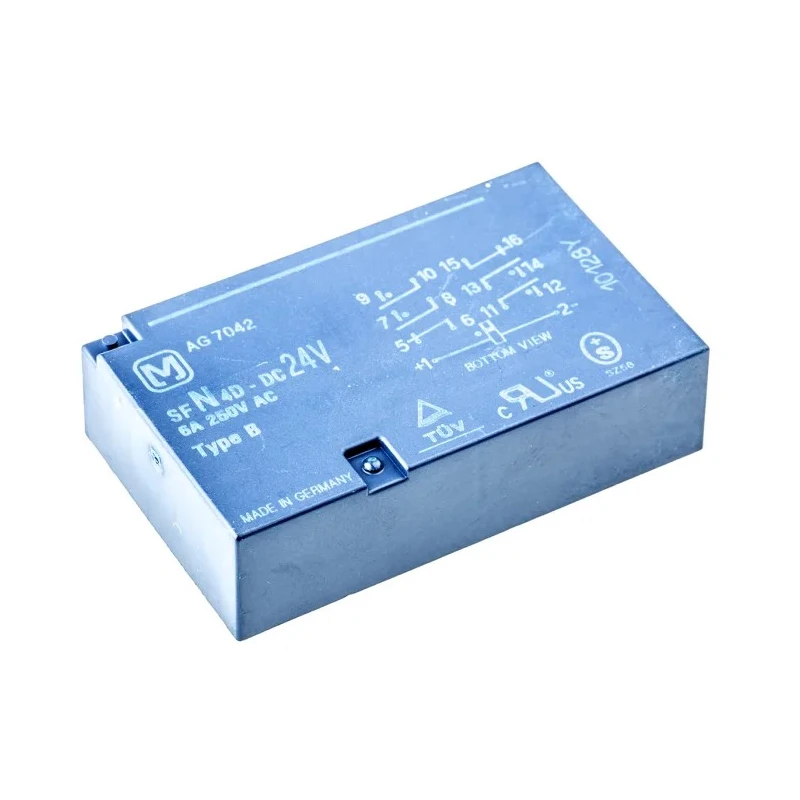

Panasonic PCB Force Guided Relay 24V dc Coil Voltage 6-Pole 4PST SFN4D24D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 14.5mm |
| Length | 53.3mm |
| Model | SFN4D24D |
| Depth | 33mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SFN4D |
| Maximum Operating Temperature | 92°C |
| Contact Configuration | 4PST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Number of Poles | 6 |
| Coil Resistance | 1.477kΩ |
| Coil Power | 420mW |
| Isolation Coil To Contact | 5kVrms |
Key Features
- Compact low profile design with height of 14.5mm for PCB mounting.
- Gold plated contacts ensure excellent conductivity and durability.
- Coil power consumption is low at 420mW for energy efficiency.
- Operating temperature range from -25°C to 92°C suits various industrial environments.
- High isolation between coil and contacts rated at 5kVrms for safety.
- Maximum switching capacity up to 6A at 250Vac and switching voltage up to 500Vac/dc.
- Polarized magnet system with snap action delivers consistent switching performance.
- Through hole terminal type eases secure PCB mounting.
Product Description
Panasonic SFN4D24D PCB Force Guided Relay features a 24V dc coil voltage, 6 poles, and 4PST contact configuration ideal for safety and automation electronics. Suitable for mounting directly on printed circuit boards, this relay is engineered for industrial, automation, and electrical safety control applications.
The low profile design stands at only 14.5mm high, helping to save board space while maintaining robust performance. Its gold plated contacts provide high conductivity and resistance to wear for prolonged service life.
With a coil power consumption of 420mW, the relay minimizes energy use while operating reliably across a broad temperature range from -25°C to 92°C, making it suitable for various industrial environments. The polarized magnet system ensures fast, consistent snap action switching, which enhances reliability in critical safety circuits.
The relay supports a high maximum switching capacity of 6A at 250Vac and can handle voltages up to 500Vac/dc, accommodating diverse load requirements. The through hole terminal type offers straightforward soldering and mounting on PCBs.
Additionally, reinforced insulation withstanding 5kVrms coil-to-contact isolation ensures enhanced safety and durability. The SFN Series complies with industry standards EN50205 and EN50178, confirming its suitability for demanding safety relay applications in industrial automation, manufacturing, building control, and other professional sectors requiring reliable force guided relay performance.
Compact low profile design with height of 14.5mm for PCB mounting. Gold plated contacts ensure excellent conductivity and durability. Coil power consumption is low at 420mW for energy efficiency. Operating temperature range from -25°C to 92°C suits various industrial environments.
High isolation between coil and contacts rated at 5kVrms for safety. Maximum switching capacity up to 6A at 250Vac and switching voltage up to 500Vac/dc. Polarized magnet system with snap action delivers consistent switching performance.
Through hole terminal type eases secure PCB mounting. Reinforced insulation and compliance with EN50205 and EN50178 standards. Explore the wide range of Panasonic Force Guided Relays on EnvMart for advanced industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It has a maximum switching capacity of 6A at 250Vac.
The operating temperature range is from -25°C to 92°C.
This relay supports PCB mounting with a through hole terminal type for secure installation.
It features reinforced insulation with a coil-to-contact isolation rating of 5kVrms for enhanced safety.
The height of this relay is 14.5mm, contributing to its compact low-profile design.
The contacts of this relay are made of gold plated material, ensuring excellent conductivity and durability.
The coil power consumption is low at 420mW, promoting energy efficiency.
This model has 6 poles in its configuration.
The contact configuration is 4PST (4 Pole Single Throw).
The relay complies with industry standards EN50205 and EN50178, suitable for safety relay applications.
This relay is designed for safety and automation electronics in industrial and electrical safety control applications.
