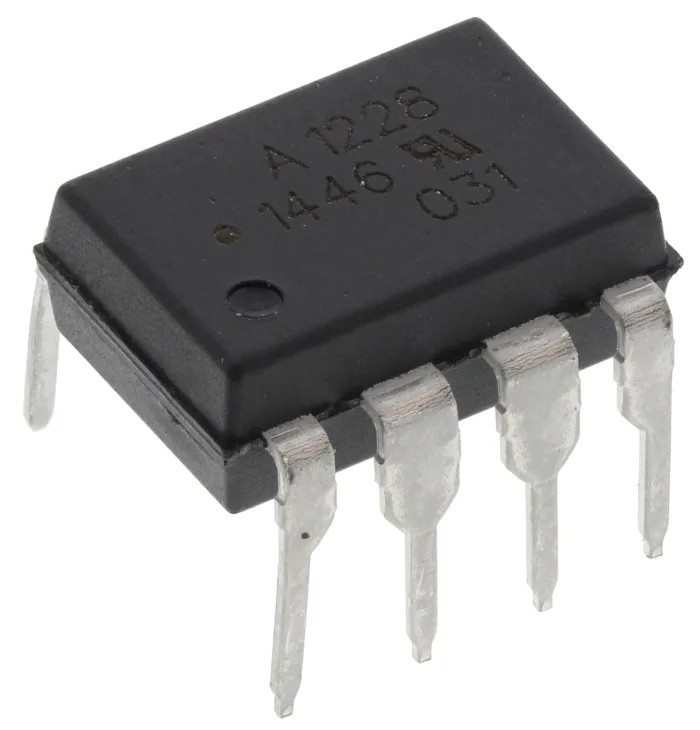

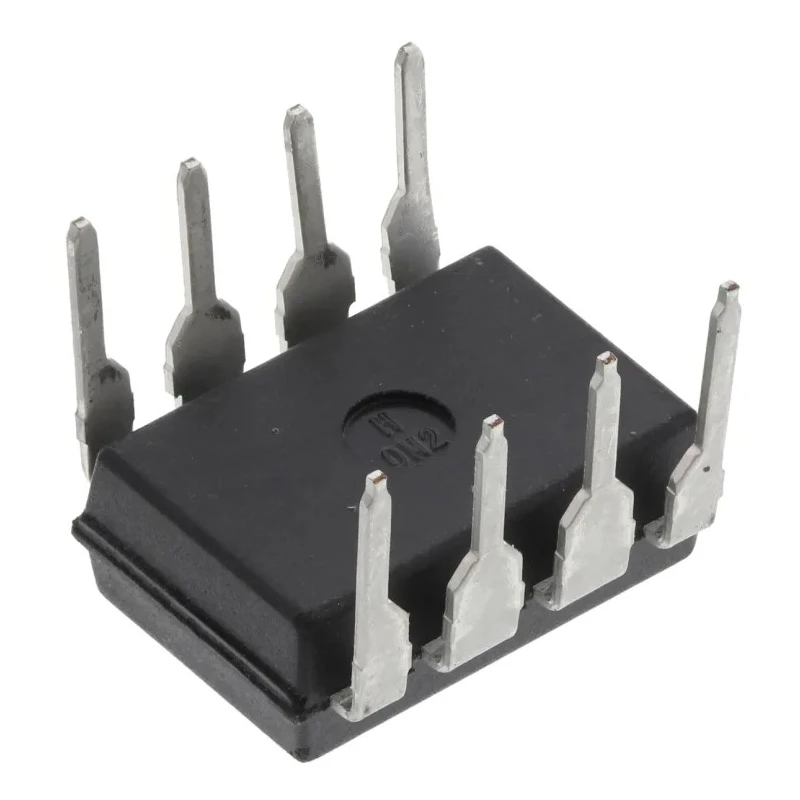

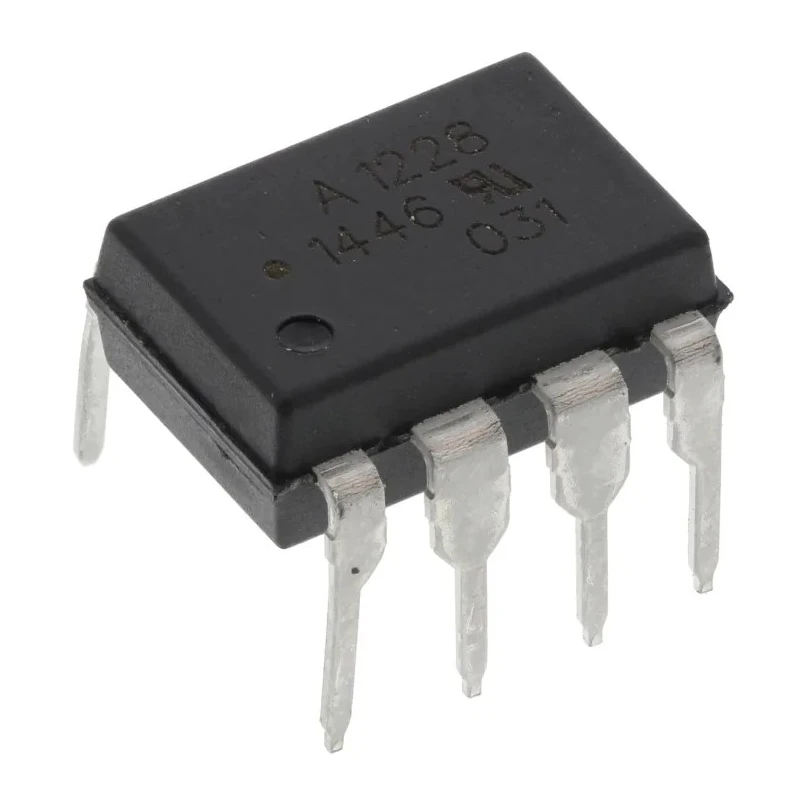

Broadcom Solid State Relay PCB Mount 0.2 A Load, 60 V Load, 1.6 V Control ASSR-1228-002E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.6mm |
| Length | 9.7mm |
| Model | ASSR-1228-002E |
| Width | 6.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | ASSR-1218 |
| Maximum Operating Temperature | +85°C |
| Contact Configuration | SPST |
| Package Type | DIP-8 |
| Capacitance | 0.4pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | 4-Pin |
| Switching Function | AC Switching |
| Maximum Load Current | 0.2A |
| Standards/Approvals | CSA, RoHS, IEC |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 1.25V |
| Maximum Control Voltage | 1.6V |
| Off State Leakage Current | 1μA |
| On State Resistance | 0.25Ω |
Key Features
- Designed for PCB mount applications with DIP-8 package type.
- Operates with a maximum load current of 0.2 A and load voltage up to 60 V.
- Control voltage range from 1.25 V minimum to 1.6 V maximum for precise switching.
- Features low on-state resistance of 0.25 ohms and minimal off-state leakage current of 1 μA.
- Operates reliably in temperatures from -40°C to +85°C for industrial use.
- Includes high speed MOSFET output for fast AC switching function.
- Complies with CSA, RoHS, and IEC standards ensuring quality and safety.
Product Description
Broadcom ASSR-1228-002E is a solid state relay designed for PCB mount applications, supporting a load current of 0.2 A and load voltage of 60 V. It operates with a control voltage between 1.25 V and 1.6 V, making it suitable for precise control applications in industrial automation.
The relay uses a Photo MOSFET output type with a low on-state resistance of 0.25 ohms and an off-state leakage current of just 1 microampere. Its compact DIP-8 packaging (9.7 mm length, 6.4 mm width, and 3.6 mm height) allows easy integration into printed circuit boards.
Engineered to operate in harsh environments, the ASSR-1228-002E functions reliably between -40°C and +85°C, conforming to CSA, RoHS, and IEC standards. It features a 4-pin SPST contact configuration with AC switching functions suitable for various industrial, manufacturing, and automation equipment.
The solid state relay improves production efficiency by enabling fast, silent switching without mechanical wear. Typical use includes industrial control systems, automation, signal conditioning, and embedded electronics requiring reliable low current AC switching solutions.
Designed for PCB mount with DIP-8 package type. Maximum load current of 0.2 A and maximum load voltage of 60 V. Control voltage range: 1.25 V minimum to 1.6 V maximum. Low on-state resistance of 0.25 ohms minimizing heat dissipation.
Operates across wide temperature range from -40°C to +85°C. Meets industry standards including CSA, RoHS, IEC for quality and safety. Compact size suitable for integration in automated industrial equipment. Explore our catalog for more Solid State Relays and electrical components designed for industrial and automation applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current is 0.2 A, and the maximum load voltage is 60 V.
The control voltage range for this model is from 1.25 V minimum to 1.6 V maximum.
It uses a MOSFET output type, which allows for fast AC switching functions.
The relay has dimensions of 9.7 mm in length, 6.4 mm in width, and 3.6 mm in height.
The on-state resistance is 0.25 ohms, which helps minimize heat dissipation during operation.
It operates reliably in temperatures ranging from -40°C to +85°C.
The contact configuration is SPST (Single Pole Single Throw).
It complies with CSA, RoHS, and IEC standards, ensuring quality and safety.
The off-state leakage current is 1 μA, indicating minimal leakage when the relay is off.
This relay is designed for PCB mount applications with a DIP-8 package type.
It is suitable for industrial control systems, automation, signal conditioning, and embedded electronics requiring low current AC switching solutions.
The capacitance of this model is 0.4 pF.
