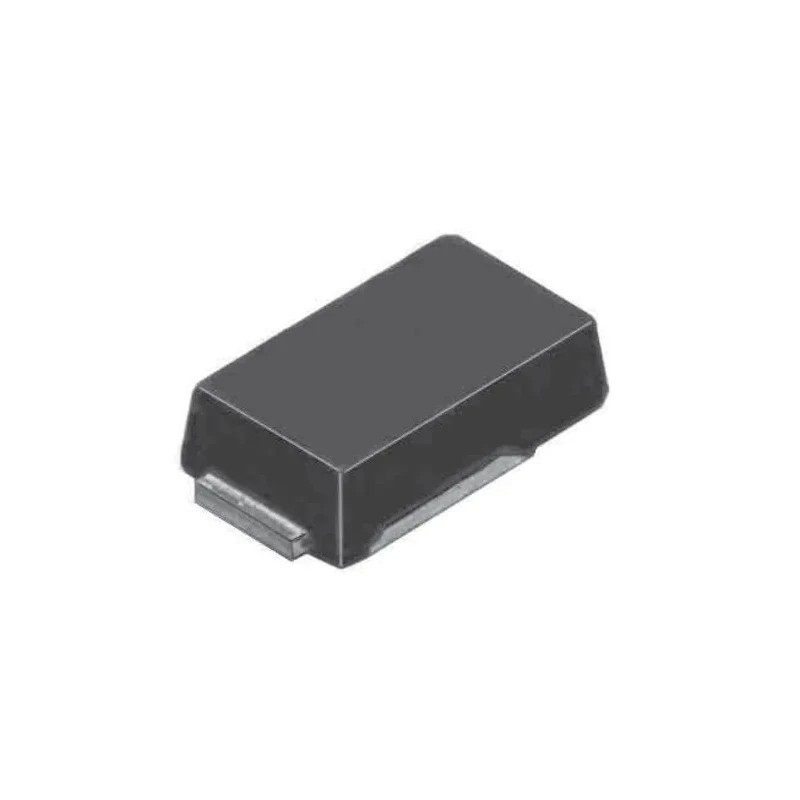

Vishay 200 V 2 A Surface Mount Schottky Rectifier Diode SMP (DO-220AA) V2P22LHM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 4mm |
| Model | V2P22LHM3/H |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | V2 |
| Maximum Operating Temperature | 175°C |
| Package Type | SMP (DO-220AA) |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.91V |
Key Features
- Compact SMP (DO-220AA) surface mount package offering low profile design.
- Maximum continuous forward current of 2 A ensures reliable rectification.
- Peak repetitive reverse voltage of 200 V suitable for a wide range of power circuits.
- Low forward voltage drop of 0.91 V enhances energy efficiency.
- Wide operating temperature range from -40°C to 175°C for harsh environments.
- Includes automotive standard AEC-Q101 for quality assurance in automotive applications.
- Peak non-repetitive forward surge current capability of 50 A for transient tolerance.
- Ideal for high frequency inverters, freewheeling, DC/DC converters, and polarity protection.
Product Description
Vishay V2P22LHM3/H is a high-efficiency Schottky rectifier diode designed for surface mount applications in SMP (DO-220AA) low profile packages. Rated at 200 V peak repetitive reverse voltage and 2 A maximum continuous forward current, this diode supports a broad range of electronic and power systems including industrial, automotive, and consumer electronics.
This diode features a low forward voltage drop of 0.91 V and is based on trench MOS barrier Schottky technology, which delivers reduced power losses and high efficiency, critical for low voltage and high-frequency inverter circuits, DC/DC converters, and freewheeling applications.
With operating temperatures ranging from -40°C up to 175°C, the Vishay V2P22LHM3/H is qualified for demanding environmental conditions and is compliant with the automotive standard AEC-Q101, ensuring reliability and performance in automotive electronics.
The device is designed with a 2-pin single diode configuration, packaged in SMP (DO-220AA) format, measuring 4 mm in length, 2.18 mm in width, and 1.15 mm in height, making it suitable for compact PCB layouts.
This Schottky diode’s peak non-repetitive forward surge current of 50 A provides transient robustness, suitable for surge conditions in power electronics. Compact SMP (DO-220AA) surface mount package offering low profile design.
Low forward voltage drop improves energy efficiency while reducing heat dissipation. Wide temperature range supports harsh industrial and automotive environments. Meets AEC-Q101 automotive qualification for automotive system integration.
High surge current capability for transient stress tolerance. Suitable for industrial, automotive, laboratory, and manufacturing power supply circuits. Set your designs for success with the Vishay V2P22LHM3/H Schottky Diode, combining excellent electrical characteristics with a rugged package for demanding applications.
Explore more components and solutions in the Electronics & Electricals category at EnvMart to find compatible parts for your next industrial or commercial project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay V2P22LHM3/H Schottky diode is 2 A.
This diode has a peak reverse repetitive voltage rating of 200 V, making it suitable for a wide range of power circuits.
The forward voltage drop for this model is 0.91 V, which enhances energy efficiency.
The Vishay V2P22LHM3/H operates within a temperature range of -40°C to 175°C, suitable for harsh environments.
This model comes in an SMP (DO-220AA) surface mount package, designed for low profile applications.
The diode can handle a peak non-repetitive forward surge current of 50 A, providing robustness against transient conditions.
The Vishay V2P22LHM3/H features a 2-pin single diode configuration.
Yes, it meets the automotive standard AEC-Q101, ensuring quality assurance for automotive applications.
This diode measures 4 mm in length, 2.18 mm in width, and 1.15 mm in height, making it suitable for compact PCB layouts.
It is a Schottky rectifier diode, known for its low forward voltage drop and high efficiency.
This model is ideal for high frequency inverters, freewheeling, DC/DC converters, and polarity protection.
The peak reverse current for the Vishay V2P22LHM3/H is 2 mA.
