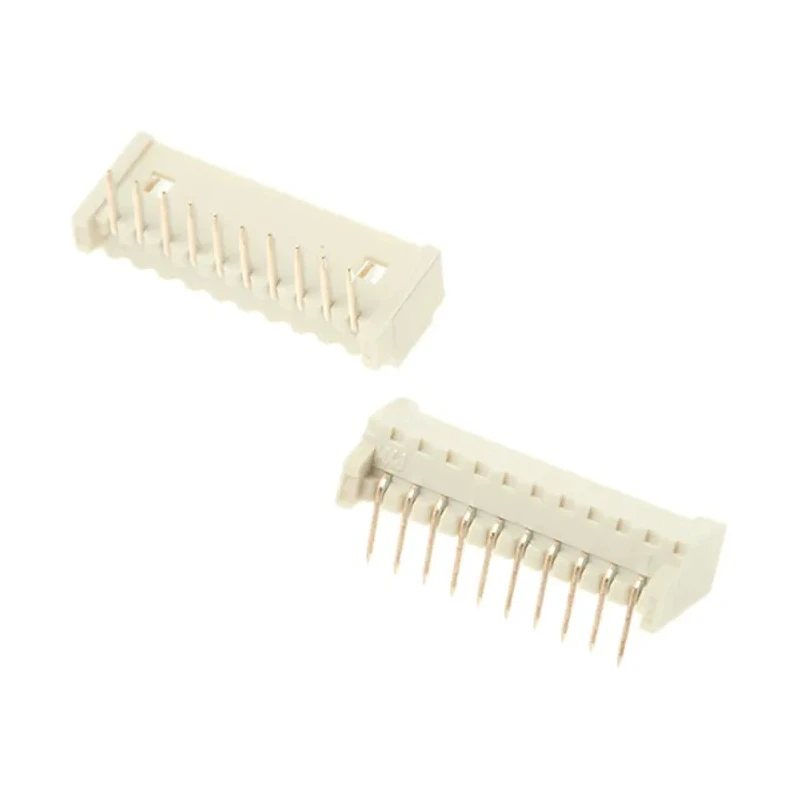

Molex PicoBlade Series Right Angle Through Hole PCB Header 10 Contacts 1.25mm Pitch Nylon Housing 53048-1010
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.3mm |
Key Features
- Constructed with durable nylon housing for long-lasting performance.
- Features tin-plated phosphor bronze contacts ensuring corrosion resistance.
- Right angle orientation supports compact PCB layouts.
- Through-hole mount type guarantees secure PCB attachment.
- Rated for 1A current and 125V voltage for low voltage applications.
- Shrouded design provides protection and prevents mis-mating.
- Suitable for signal transmission in electronic and automation equipment.
- Operating temperature range from -40°C to 85°C for versatile environments.
Product Description
Molex 53048-1010 is a PicoBlade Series Right Angle Through Hole PCB Header designed for compact and high-precision wire-to-board connections. This PCB header provides 10 contacts spaced at a 1.25 mm pitch in a single row configuration, housed in durable nylon material to withstand industrial and electronic applications.
The header's right-angle orientation allows for efficient use of PCB space, with a shrouded design to prevent accidental contact and ensure durability. Contacts are made of phosphor bronze and plated with tin, providing corrosion resistance and long-lasting electrical integrity. It supports through-hole mounting with solder termination, assuring solid mechanical and electrical connection to the PCB.
This connector is rated for a maximum current of 1 ampere and voltage up to 125 volts, suitable for various low-voltage signal and power transmission requirements in automation, control systems, and electronic devices. The operating temperature range from -40°C up to 85°C allows usage in demanding environments.
Key features include a compact 1.25 mm pitch spacing for space-saving PCB designs, a 2.3 mm tail pin length optimized for reliable solder joints, and a shrouded connector system ensuring secure wire-to-board mating.
Applications span electronics manufacturing, automation equipment, signal transmission in control systems, and other industrial electronics requiring reliable PCB connectivity. Constructed with durable nylon housing for long-lasting performance.
Features tin-plated phosphor bronze contacts ensuring corrosion resistance. Right angle orientation supports compact PCB layouts. Through-hole mount type guarantees secure PCB attachment. Rated for 1A current and 125V voltage for low voltage applications.
Shrouded design provides protection and prevents mis-mating. Suitable for signal transmission in electronic and automation equipment. Operating temperature range from -40°C to 85°C for versatile environments. Solder termination type enables easy and secure installation.
Tail pin length is 2.3 mm enhancing solder reliability. Explore the extensive range of PCB Headers and connectors at EnvMart designed to meet stringent industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header are spaced at a 1.25 mm pitch.
It is rated for a maximum current of 1 ampere.
This model can handle a maximum voltage of 125 volts.
The operating temperature range is from -40°C to 85°C.
It uses a through-hole mounting type for secure attachment to the PCB.
The housing is made of durable nylon, while the contacts are made of phosphor bronze with tin plating for corrosion resistance.
This model features 10 contacts.
The tail pin length is 2.3 mm, which is optimized for reliable solder joints.
This connector is shrouded, which helps prevent accidental contact and mis-mating.
It is suitable for signal transmission in electronic and automation equipment, as well as in control systems and industrial electronics.
This PCB header uses solder termination for secure installation.
This model features a right angle orientation, which supports compact PCB layouts.
