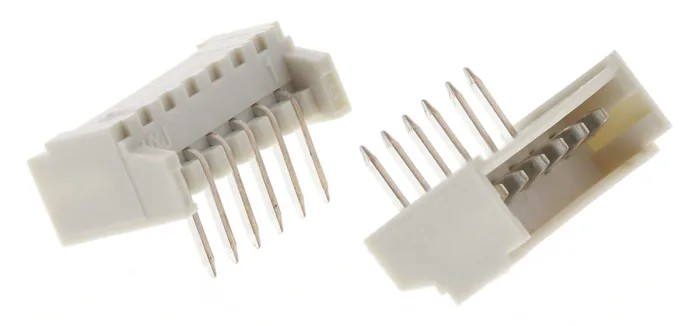

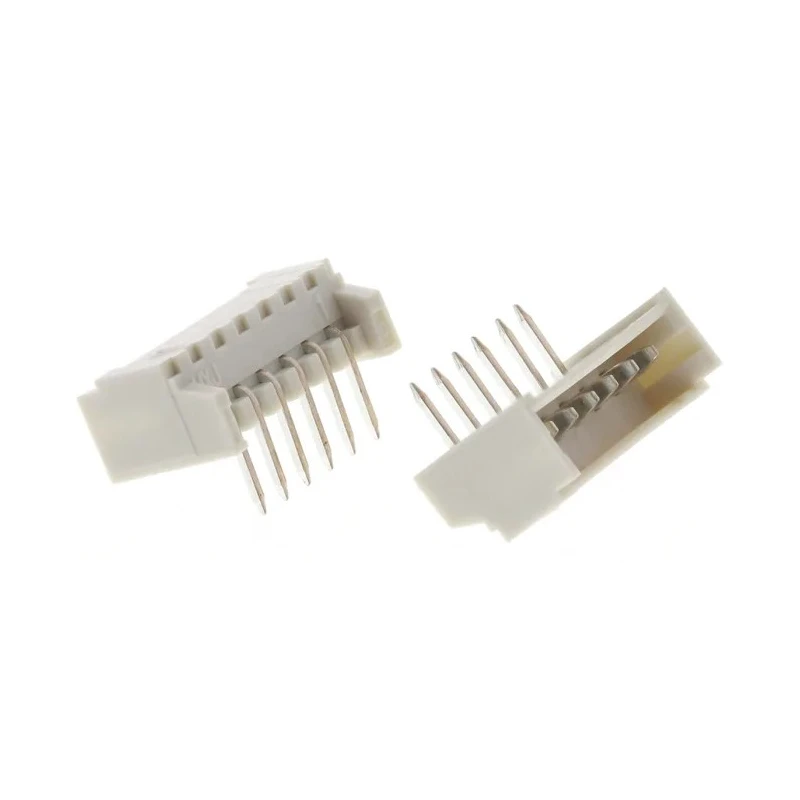

Molex PicoBlade Series Right Angle Through Hole PCB Header 6 Contact 1.25 mm Pitch Shrouded 53048-0610

Molex 53048-0610 PicoBlade Series Right Angle Through Hole PCB Header is a precision-engineered connector tailored for electronic applications requiring reliable wire-to-board connections. Featuring a 1.25 mm pitch and 6 male contacts arranged in a single row, this PCB header provides a compact and secure interface.

Its right angle orientation delivers efficient wire routing and space-saving integration within electronic assemblies. The housing is constructed from durable nylon with a shrouded design to protect contacts against mechanical damage and ensure mating alignment.

The phosphor bronze contact material is distinguished for excellent conductivity combined with mechanical strength, while tin plating enhances corrosion resistance, ensuring long-term reliability even under challenging conditions.

The header supports solder termination through a through-hole mount offering robust mechanical and electrical connections to printed circuit boards. It can safely carry currents up to 1 ampere at a voltage rating of 125 volts, making it suitable for various industrial, automation, and electronics applications.

Its operational temperature range spans -40 to 85 degrees Celsius, accommodating environmental extremes common in manufacturing and electronics testing. The 2.3 mm tail pin length enables secure and stable solder joints, critical for high-reliability circuits.

The right angle orientation facilitates neat wiring and reduced PCB footprint. Phosphor bronze male contacts combined with tin plating assure robust electrical performance. Shrouded nylon housing protects contacts and prevents misalignment.

Through hole mounting supports straightforward assembly and durability. Rated for 1A current and 125V voltage, accommodating moderate power requirements. Wide operating temperature range ensures applicability in diverse industrial environments.

Single row of 6 contacts provides versatile connection points for signal and power lines. Manufactured in Japan, guaranteeing stringent quality controls and reliability.

This PCB Header is ideal for use in electronics manufacturing, automation controls, instrumentation, and power distribution systems. It ensures secure, high-quality connections for signal transmission, enhancing overall system reliability and performance.
