Molex PicoBlade Series Straight Through Hole PCB Header, 6 Contacts, 1 Row, 1.25 mm Pitch, Shrouded 53047-0610

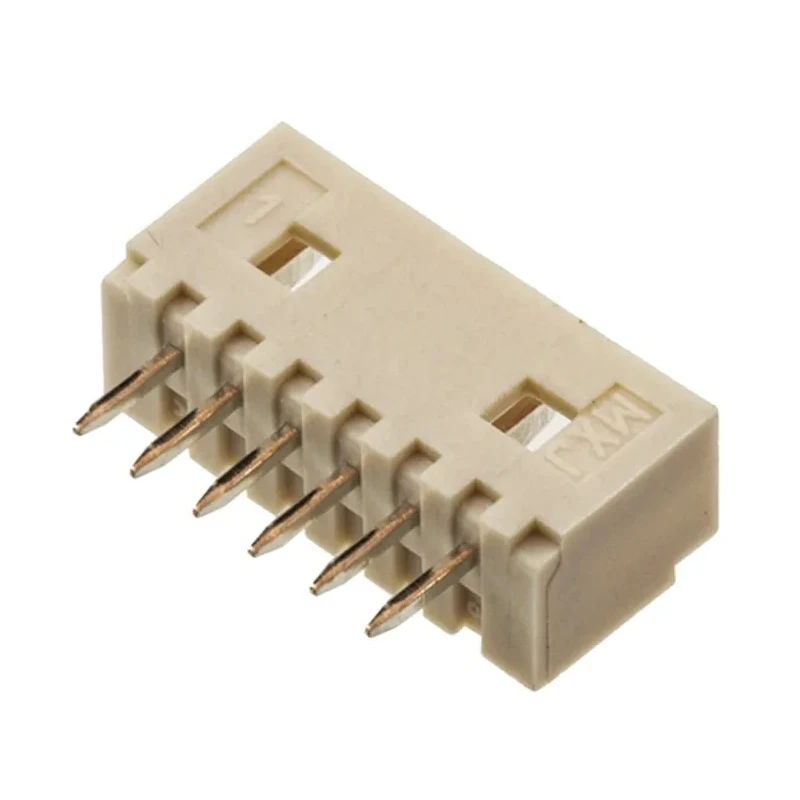

Molex 53047-0610 PicoBlade Series Straight Through Hole PCB Header is a highly reliable electronic connector designed for wire-to-board applications requiring compact size and robust performance. With 6 contacts arranged in a single row and a 1.25 mm pitch, this PCB header maximizes circuit board real estate while ensuring stable electrical connectivity.

The connector features a shrouded nylon housing, providing excellent resistance to heat and abrasion, making it suitable for harsh industrial and automotive environments. Its straight orientation facilitates straightforward PCB mounting through through-hole soldering techniques, with 2.3 mm tail pin length for secure joints.

The phosphor bronze contacts plated with tin enhance corrosion resistance and maintain consistent conductivity over prolonged usage. The header sustains 1A current capacity with a voltage rating of 125V and can operate reliably in temperatures from -40°C up to 85°C, making it versatile for a wide array of electronic and industrial applications including medical equipment and industrial process controls.

The fully shrouded design adds an important safety feature, preventing short circuits and mishandling risks. With locking windows integrating friction-lock mechanisms, the header ensures secure mating and prevents loosening due to vibration or mishandling, ideal for automotive and industrial process control assemblies.

This PCB Header supports a current rating of 1A for reliable electrical performance. The housing is fabricated from durable nylon resistant to heat and abrasion. Contacts are made of phosphor bronze with tin plating to resist corrosion and wear.

The connector orientation is straight, optimized for through-hole mounting on PCBs. Operating temperature range from -40°C to 85°C suits various industrial environments. Fully shrouded design prevents electrical hazards by avoiding short circuits.

Compact 1.25 mm pitch optimizes PCB space without sacrificing connectivity. Tail pins measure 2.3 mm, ensuring secure solder termination on circuit boards. The connector system is wire-to-board, with male contact gender for compatibility.

Voltage rating is 125V, suitable for general electronic component applications.

This Molex PicoBlade header series is widely used in automotive industry, industrial process controls, and medical equipment fostering space-efficient, safe, and dependable electronic connections. Select this component for applications demanding compactness, secure connections, and resistance to vibration and harsh environments.
