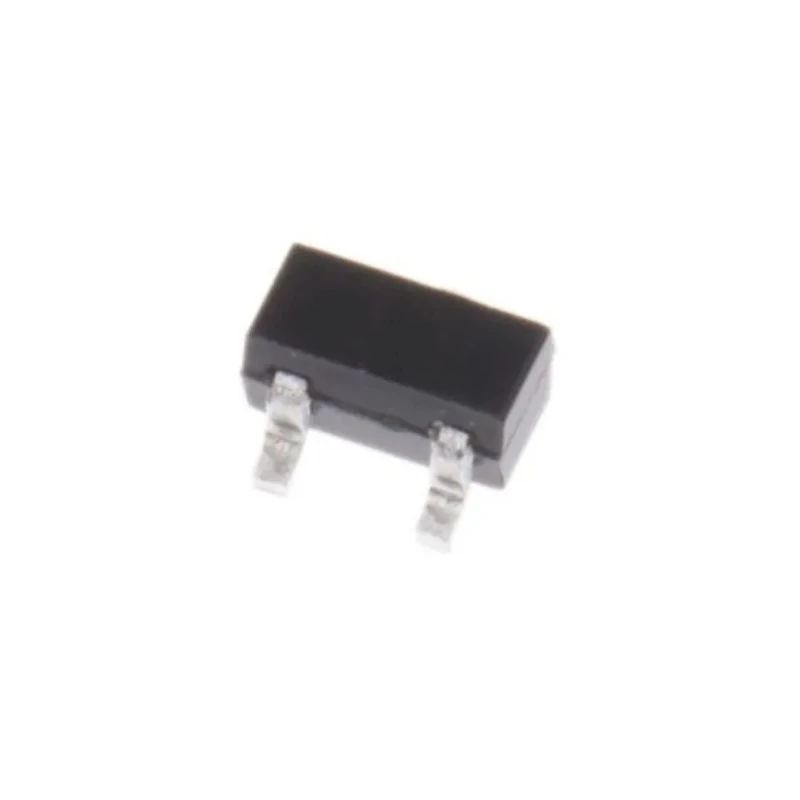

onsemi General Purpose Diode Dual Common Anode 200mA Forward Current 3-Pin SC-75 Package BAW56TT1G

onsemi BAW56TT1G is a general purpose diode designed for surface mount applications in compact SC-75 packages suitable for ultra high speed switching circuits. It supports a maximum continuous forward current of 200mA and a peak surge current of 500mA, making it ideal for low power semiconductor switching use cases in industrial, automotive, and electronic sectors.

The diode features a dual common anode configuration in a 3-pin form factor which is widely used in PCB layouts where space is limited. Its low forward voltage drop of 1.25V helps reduce power dissipation, and its peak reverse current of 50μA ensures efficient operation.

Operating reliably from -55°C to 150°C, this diode meets automotive grade AEC-Q101 standards, highlighting its quality and suitability for rigorous environments. Its miniature dimensions (1.65mm length, 0.9mm width, 0.8mm height) enable dense circuit designs.

This product is Pb-Free and Halogen Free, supporting environmental compliance. It is widely applicable in semiconductor circuits requiring Schottky diodes or general purpose switching diodes for electronics manufacturing and repair.

Surface mount SC-75 package designed for low power applications. Maximum continuous forward current of 200mA supports efficient switching. Peak non-repetitive forward surge current rating of 500mA. Compact size enables space-saving PCB designs.

Wide temperature range from -55°C to 150°C improves operational reliability. Dual common anode diode configuration for versatile use. Automotive standard AEC-Q101 qualified for high-reliability applications. RoHS compliant, Pb-Free and Halogen Free construction.

Ideal for use in industrial electronics, automotive semiconductor devices, and general high-speed switching applications. Explore more Semiconductor Diodes on EnvMart for your electronic component requirements.
