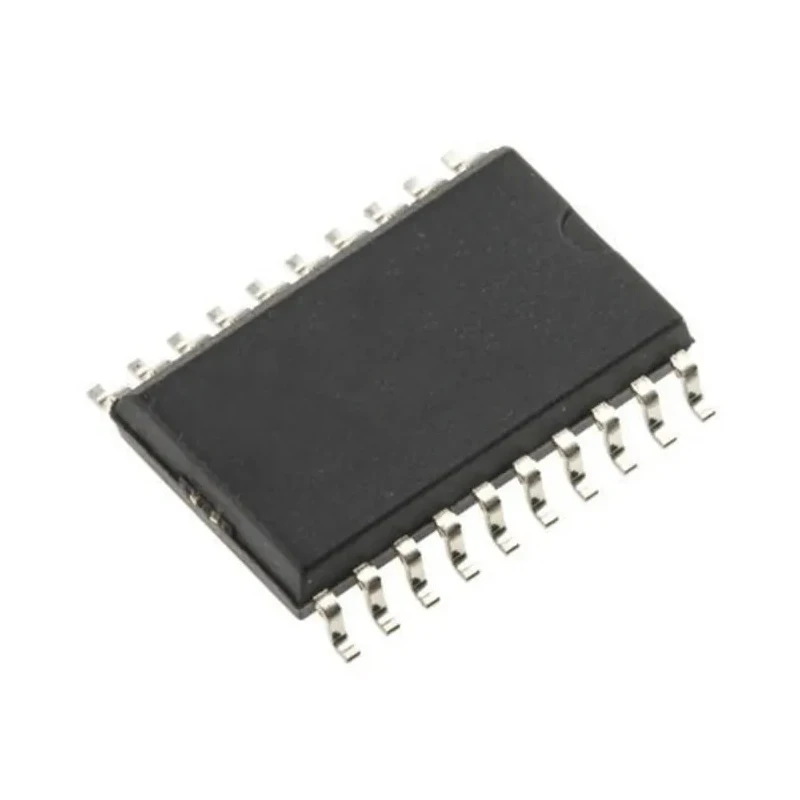

onsemi Voltage Level Shifter Latch 1 Latch, 20-Pin SOIC MC74HC573ADWR2G

onsemi MC74HC573ADWR2G is a voltage level shifter latch IC designed to provide uni-directional voltage translation and latch functionality. It features a single latch function arranged within a compact 20-pin SOIC surface mount package, facilitating easy integration into printed circuit boards.

This device is based on high-performance silicon-gate CMOS technology, ensuring low power consumption and high speed with a maximum propagation delay of 225 ns. It supports an operating voltage range from 2.0 V to 6.0 V, making it versatile for various low-voltage electronic applications including automotive, industrial control, and embedded systems.

The latch function allows outputs to become transparent when the latch enable is high, and to hold data when it goes low, enabling precise timing and data synchronization. The outputs support 3-state control that allows bus connection with multiple devices. The device directly interfaces with CMOS, NMOS, and TTL outputs with a low input current of 1.0 mA and output drive capability able to handle 15 LSTTL logic loads.

Operating temperatures range from -55°C to 125°C allows use in demanding environments such as automotive and industrial electronics. The MC74HC573ADWR2G also complies with AEC-Q100 for automotive grade applications.

Operates from 2.0 to 6.0 V supply voltage. Uni-directional voltage level shifter latch functionality. 20-pin SOIC surface mount package with compact dimensions. Low input current and capable of driving multiple logic loads.

Meets automotive reliability standard AEC-Q100. Wide operating temperature range for harsh conditions. Maximum propagation delay time of 225 ns. Provides transparent latch and 3-state outputs.

This Voltage Level Shifter latch is suited for industrial, automotive, and embedded system applications requiring precise voltage translation and data latching. Explore additional options and related semiconductor components in the EnvMart catalog.
