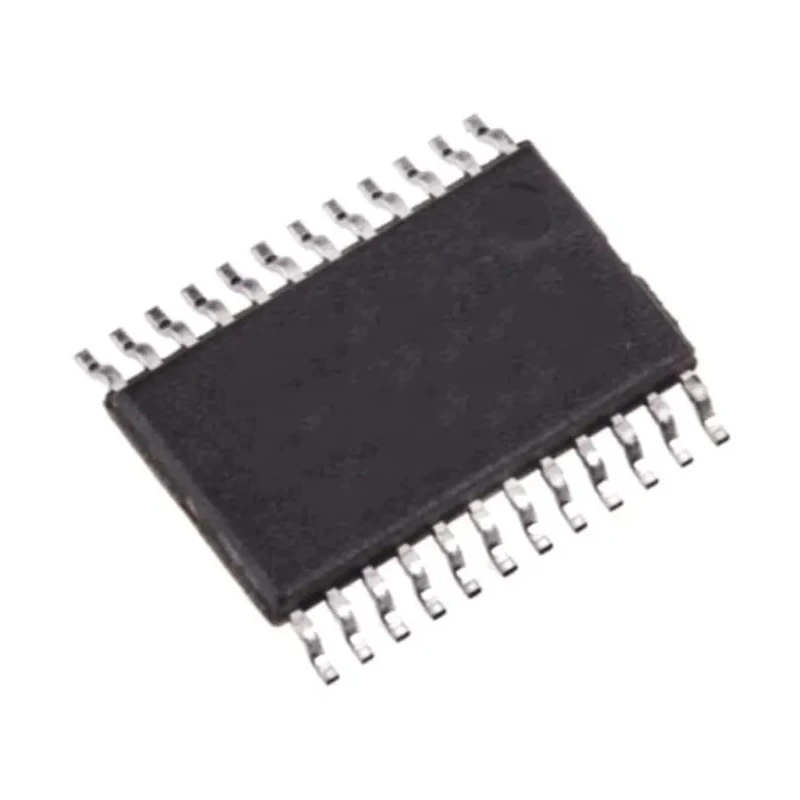

onsemi Voltage Level Shifter Bus Transceiver 24-Pin TSSOP MC74VHCT245ADTG

onsemi MC74VHCT245ADTG Voltage Level Shifter Bus Transceiver is a high-performance logic IC designed to translate voltage levels between different sections of a digital system. This 24-pin TSSOP surface-mount device supports bi-directional data communication with a maximum propagation delay of 9.5ns ensuring fast signal processing. It operates from 4.5V up to 5.5V supply voltage and maintains low power consumption with ICC max of 4μA at 25°C.

High noise immunity is guaranteed with VNIH = VNIL = 28% VCC, and the device includes power-down protection on inputs and outputs to prevent damage during inactive states. Operating temperature range from -40°C to +85°C makes it suitable for industrial and commercial electronic designs. The transceiver is pin-compatible with various standard logic families and comes with robust ESD protection rated at HBM > 2000V and machine models > 200V.

Its compact size with a 1.05mm height and 7.9mm length allows integration into dense PCB layouts. The device is widely used in applications requiring voltage level translation, bus transceiver functions, and safe signal interfacing among microcontrollers, sensors, and communication interfaces.

Operates within 4.5V to 5.5V supply voltage range. High speed with typical propagation delay of 4.9ns at 5V. Low power dissipation ensuring efficient operation. Balanced propagation delays optimize bus performance. Enhanced noise immunity with power down protection features.

Wide operating temperature range supports harsh environments. Robust ESD protection secures device reliability. Compatible with TTL output logic for versatile applications.

This device is ideal for high-speed digital systems in industrial, electronic manufacturing, and semiconductor sectors. For more products like this, browse the voltage level shifter category at EnvMart.
